Interior - Gap Between Side and Rear Trim Panels

Model Applicable To File Under Bulletin No...

'84 1.3 up to VIN 84-018
Civic 002773 BODY Issue Date
CRX 1.5 up to VIN
003321 MAR 19, '84

Gap Between Panels:

Gap Between Side and Rear Trim PanelsPROBLEM

A gap between the side and rear trim panels in the luggage area.

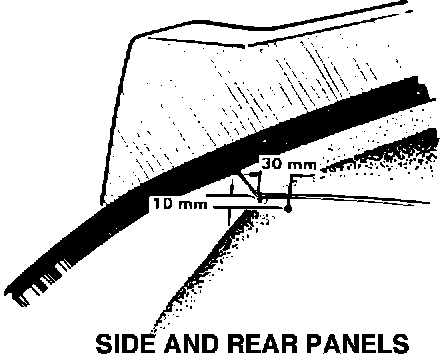

Side and Rear Panels.:

CORRECTIVE ACTION

1. Loosen the 4 screws holding the rear trim panel in place.

2. Pull the panel rearward to obtain the best fit between the side and rear panels.

3. Drill a 3/16 inch hole through both panels in the location shown.

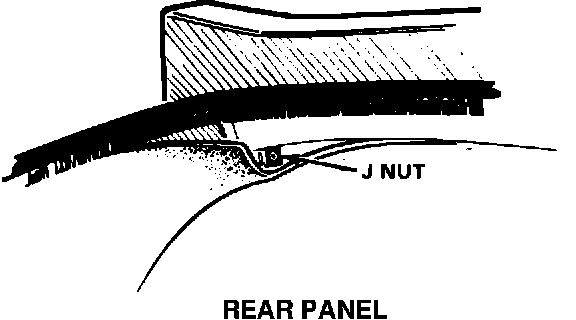

Rear Panel:

4. Bend back the rear panel and fit a 4 mm J nut onto the edge of the side panel, so it lines up with the hole you drilled.

5. Fasten the two panels together by installing a self-tapping screw.


PARTS INFORMATION

4 mm J Nut: H/C 1169861
P/N 90302-SA4-003

Self-tapping Screw: H/C 1169531 P/N 90103-693-010


WARRANTY CLAIM INFORMATION

Use operation number 850020, defect code 074, and a total time of 0.3 hour. For the failed part use H/C 163674.
