Interior - Rust Stains On Rear Seat-Back Cover

Model Applicable To File Under Bulletin No.

83-037
'84 HATCH BACK
CIVIC 1.3 up to 5003256 BODY Issue Date
1.5 up to 5008410 DEC. 1983

Rear Seat:

RUST STAINS ON REAR SEAT-BACK COVERPROBLEM

Rust on the backing plate inside the rear seat may cause stains on the seat-back cover/trunk floor mat.

NOTE: The 1500 "S" model has separate rear seat-back covers; the seat-backs in other hatchbacks are covered by a one piece seat-back cover/trunk floor mat.


CORRECTIVE ACTION

1. Remove and discard the stained seat-back cover/trunk floor mat.

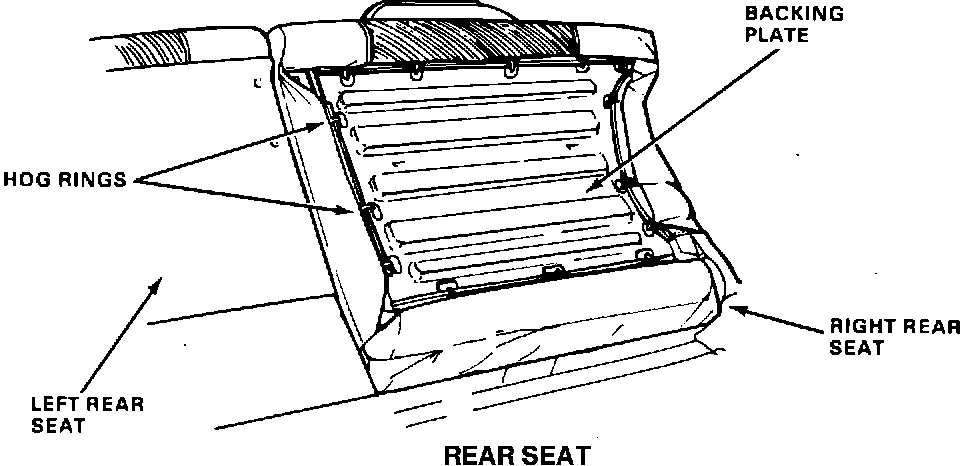

2. Disconnect the "hog rings" holding the upholstery to the seat frame, then fold the upholstery over to fully expose the metal backing plate.

NOTE: "S" type shown.

3. Clean the rust off the backing plate using a wire brush, sandpaper and steel wool.

4. Mask off the areas next to the backing plate, then spray the entire plate with black aerosol paint.

5. When the paint has dried, remove the masking tape, re-attach the upholstery to the seat frame, and install a new seat-back cover/trunk floor mat.
PARTS INFORMATION

Honda Codes for seat-back covers/trunk floor mats:

Gray Blue Beige Red Black

1300 Hatchback 1635168 1635176

1500 Hatchback DX 1635143 1635135 1635150

1500 Hatchback S Left 1635085 1635077

Right 1634955 1634948


WARRANTY CLAIM INFORMATION

Use operation number 853140 with a total time of 0.6 hour.
