Special Tools - Adjustable Threaded Piston Pin Driver

90honda05
Model Applicable To
'84 Accord
'84 Civic ALL
'83-84 Prelude

File Under Bulletin No.
SPECIAL 84-022
TOOLS

Issue Date

MAY 18,'84

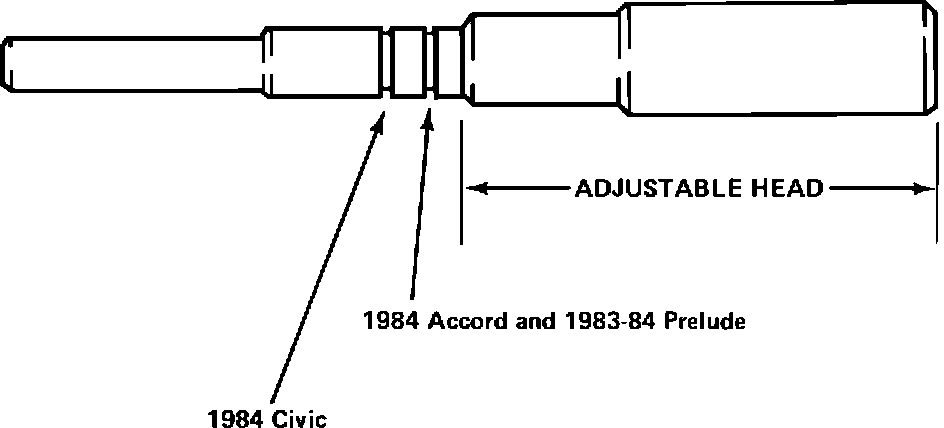

Adjustable Piston Pin Driver



The head of this pin driver is threaded, which allows it to be adjusted for use on more than one model.

Adjust the driver to the correct depth for whichever model you are working on, then see the appropriate service manual for complete instructions on how to use the driver with the other pin removal/installation special tools.
