Windows - Binding Front Window Mechanism

Model Applicable To File Under Bulletin No.
86-022
'82-86 ALL BODY
ACCORDS Issue Date
SEPT 26,'86
SYMPTOM

Front power windows raise or lower slowly or, if the windows are manual, raising or lowering them requires extra effort.

CORRECTIVE ACTION

^ For '86 Accord, do steps 1 through 10.

^ For '82-85 Accord, do only steps 7 through 10..

'86 ACCORDS ONLY

1. Remove the door trim panel, the window, and the glass run channel, following the Service Manual procedure.

2. Remove the outer window molding by prying up with a long flat tip screwdriver at the rear edge of the door.

CAUTION: Be careful not to mar the painted surface.

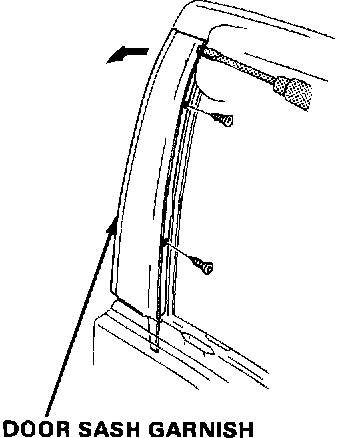

DOOR SASH GARNISH:

3. Remove the two door sash garnish screws that were under the glass run channel. Remove the garnish by prying up as shown, starting at the top.

CENTER PILLAR GROMMETS:

4. Replace the two center pillar grommets that hold the garnish screws in place with the new type listed under Parts Information. Install the grommets with the locating tip facing outward.

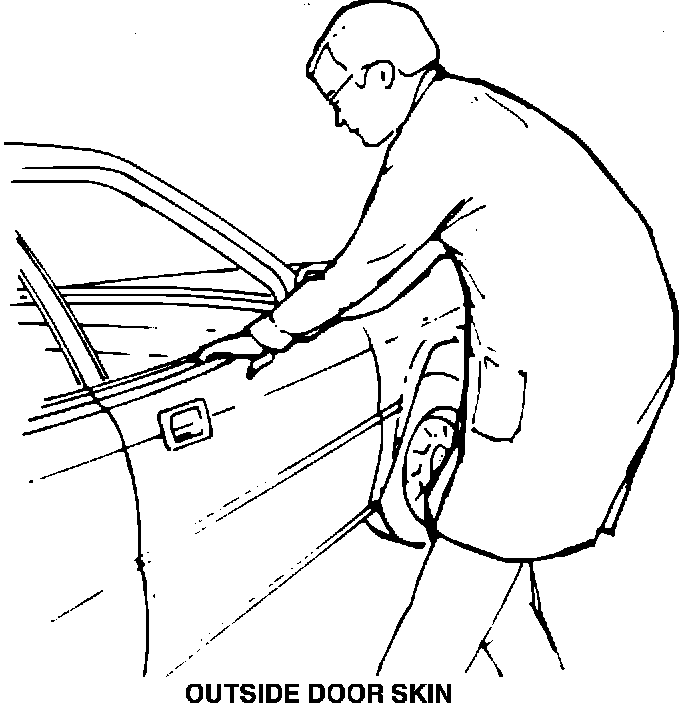

OUTSIDE DOOR SKIN:

5. Replace the glass run channel with the new type listed under Parts Information.

6. Pull (by hand) on the outside door skin at the center of the window opening until it conforms with the curve of the glass.

Front and Rear Window Channels:

'82-86 ACCORDS

7. Roll the window down and release tension by loosening the three bolts and one nut holding the front and rear window channels.

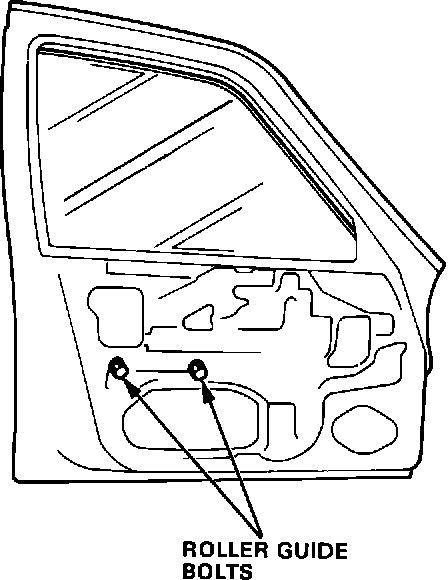

Roller Guide Bolts:

8. Roll the window up half way and loosen the roller guide mount bolts. Adjust the roller guide to a "neutral" position. Retighten the bolts and check for ease of window operation. Readjust the roller guide if necessary.
9. Spray the vertical sections of the glass run channel with Honda Silicone Spray (H/C 1385731) or equivalent. Lubricate the window regulator roller mechanism with Honda Lithium Grease (H/C 1385780) or equivalent.

10. Reassemble the remaining door components and recheck window operation.

PARTS INFORMATION

Glass run channel 3-dr RF H/C 2250926 P/N 72235-SE0-003

Glass run channel 3-dr LF H/C 2185007 P/N 72275-SE0-003

Glass run channel 4-dr RF H/C 2184885 P/N 72235-SE3-003

Glass run channel 4-dr LF H/C 2185015 P/N 72275-SE3-003

Center pillar grommet H/C 2498848 P/N 90601-SE3-305

WARRANTY CLAIM INFORMATION

These repairs, like all repairs, are eligible for goodwill consideration by your District Service Manager. You must request consideration, and get the DSM's decision, before starting the work.

'86 ACCORDS

Operation number: 827140
Flat rate time: 0.8 hour per door Failed part H/C: Use the H/C of the glass run channel you replace.
Defect code: 030
Contention code: B99

'82-85 ACCORDS

None, for information only.
