Relay Box
Relay Box

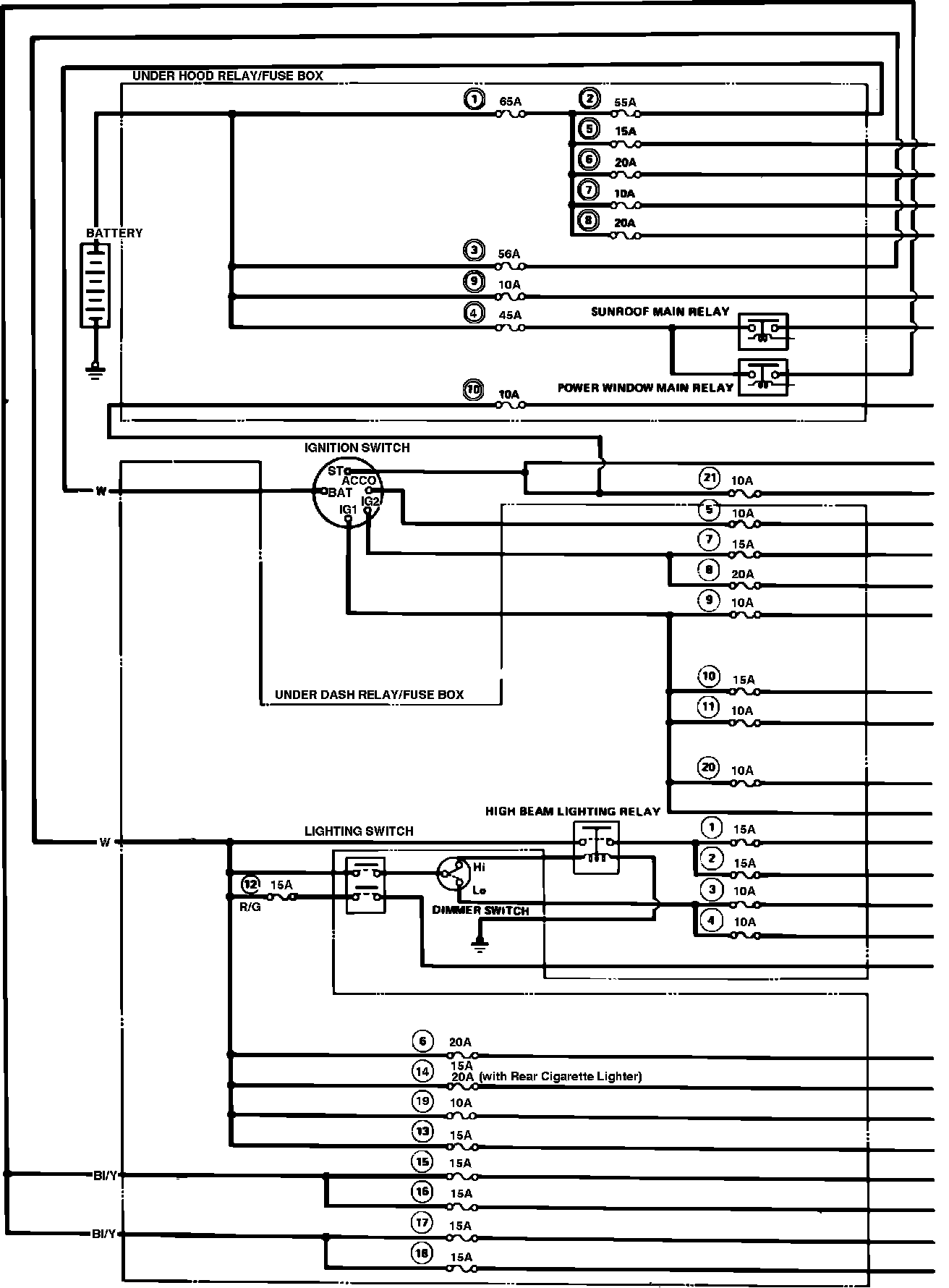

Fig. 1b Fuse Panel & Relay Box (Part 2 of 3). 1985 Accord:

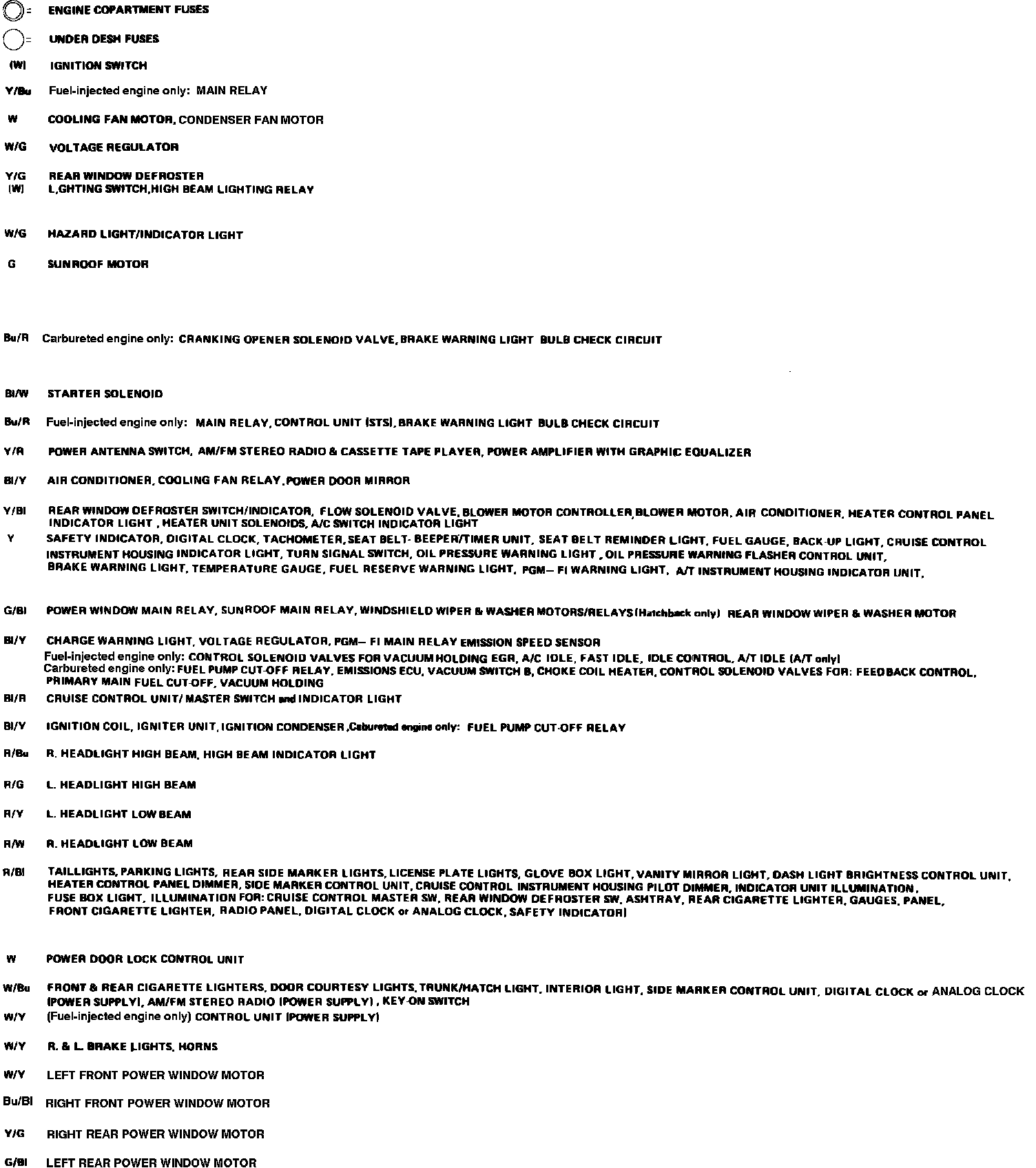

Fig. 1c Fuse Panel & Relay Box (Part 3 of 3). 1985 Accord:
