Shift Indicator - A/T
>>
W/Auto Trans.-Carbureted Engine
W/Auto Trans.-Carbureted Engine

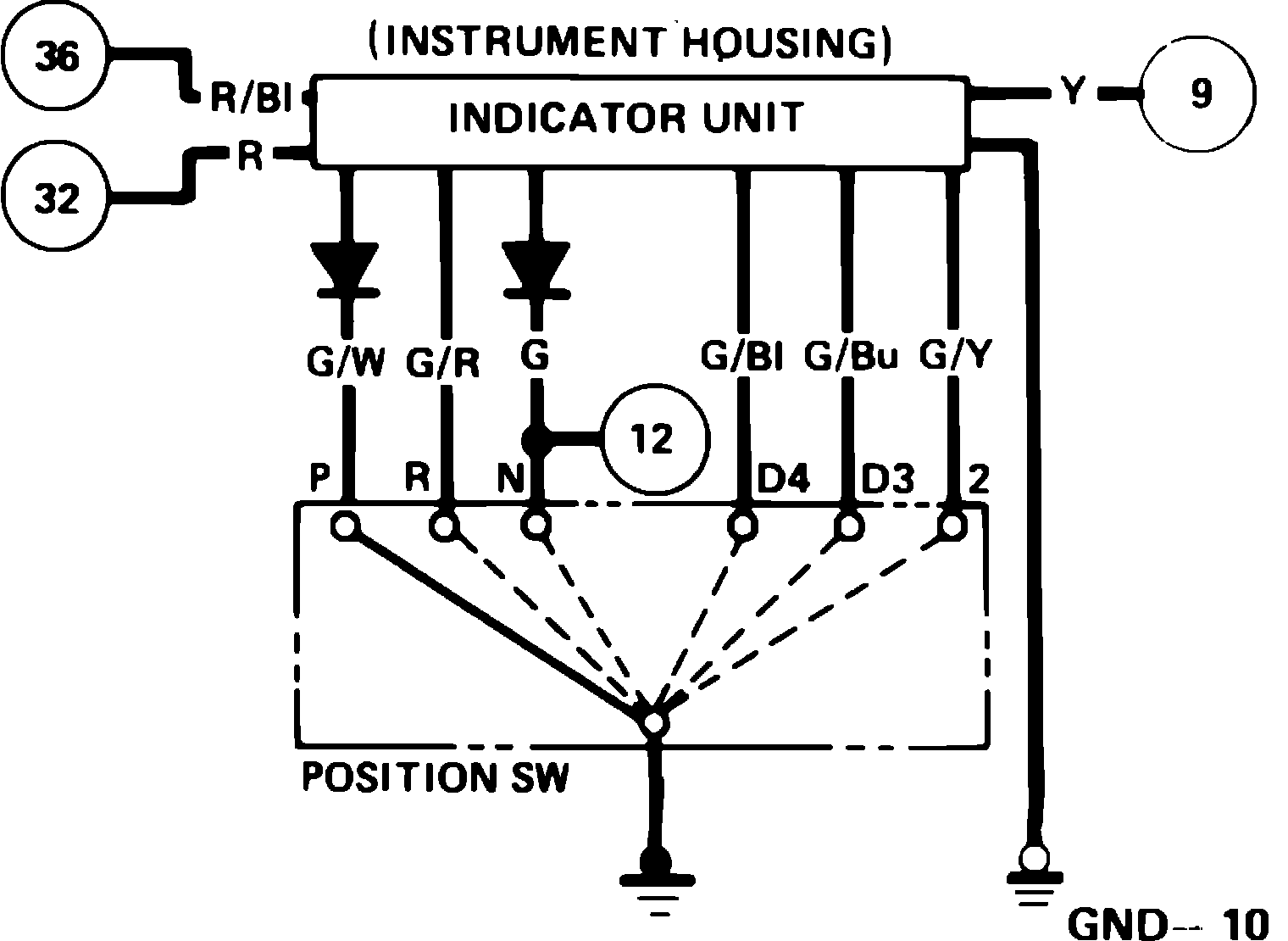

Fig. 28 Shift Lever Position Indicator Wiring Circuit. W/Auto. Trans. & Carbureted Engine:
