Torque Specifications

Intake Manifold And Bracket, EGR Valve:

Exhaust Manifold, Shroud And Brackets, EGR Tube, Air Suction Tube, O2 Sensor:

Cylinder Head:

Camshaft, Rockers, Distributor And Thermostat Housing:

Valves, Springs And Keepers:

Rocker Assembly Torque And Sequence:

Cylinder Head Torque And Sequence - Tighten In 2 Steps:

Torque cylinder head bolts in 2 steps, following sequence shown in figure:

1st step: torque bolts to 22 ft. lbs.
2nd step: torque bolts to 49 ft. lbs.

Timing Components:

Lower Engine:

Piston And Connecting Rods:

Oil Pan, Drain Plug, Oil Pump, Oil Filter Base, Oil Pressure Sender:

Oil Pump Components:

O/P Sender, Relief Valve:

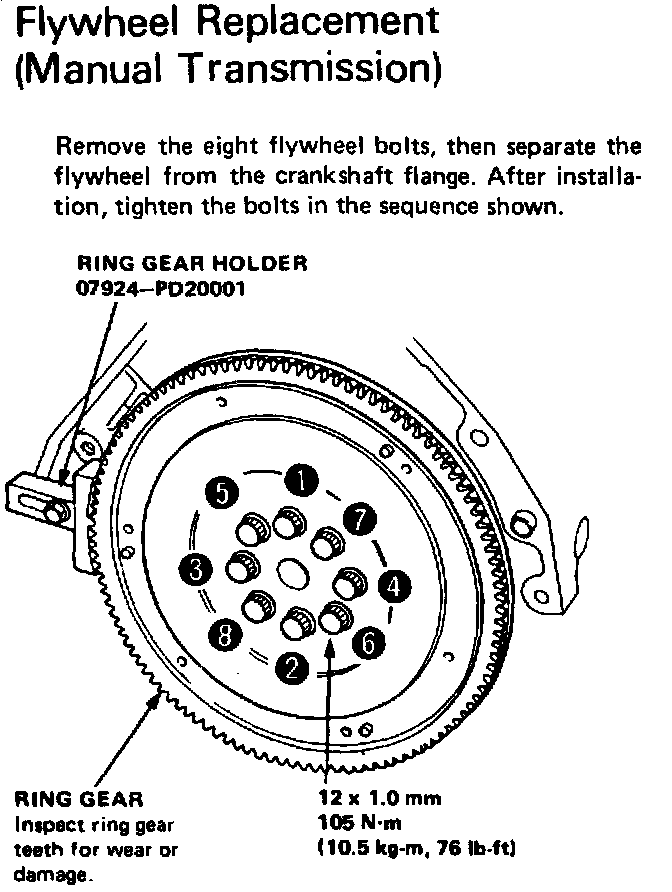

Flywheel Torque And Sequence (M/T):

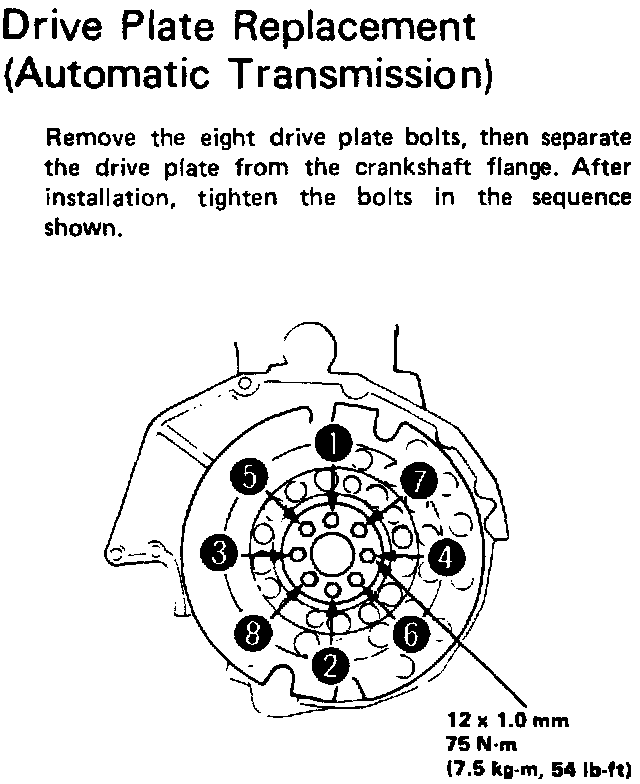

Drive Plate Torque And Sequence (A/T):
