Carbureted Engine
Carbureted Engine

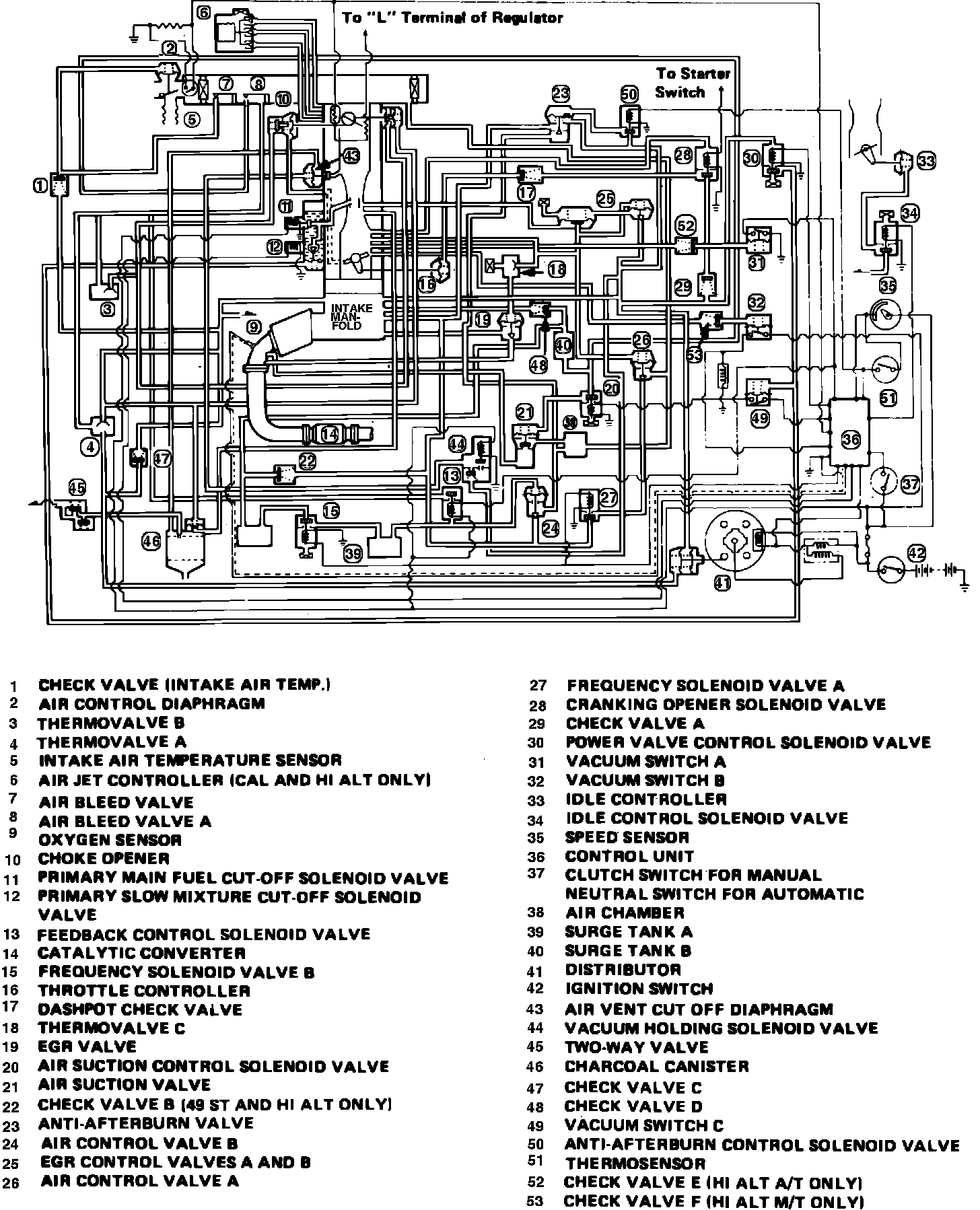

Fig. 1 Emission Control Vacuum Hose Routing. W/Carbureted Engines:
