Engine Compartment Reference Diagram

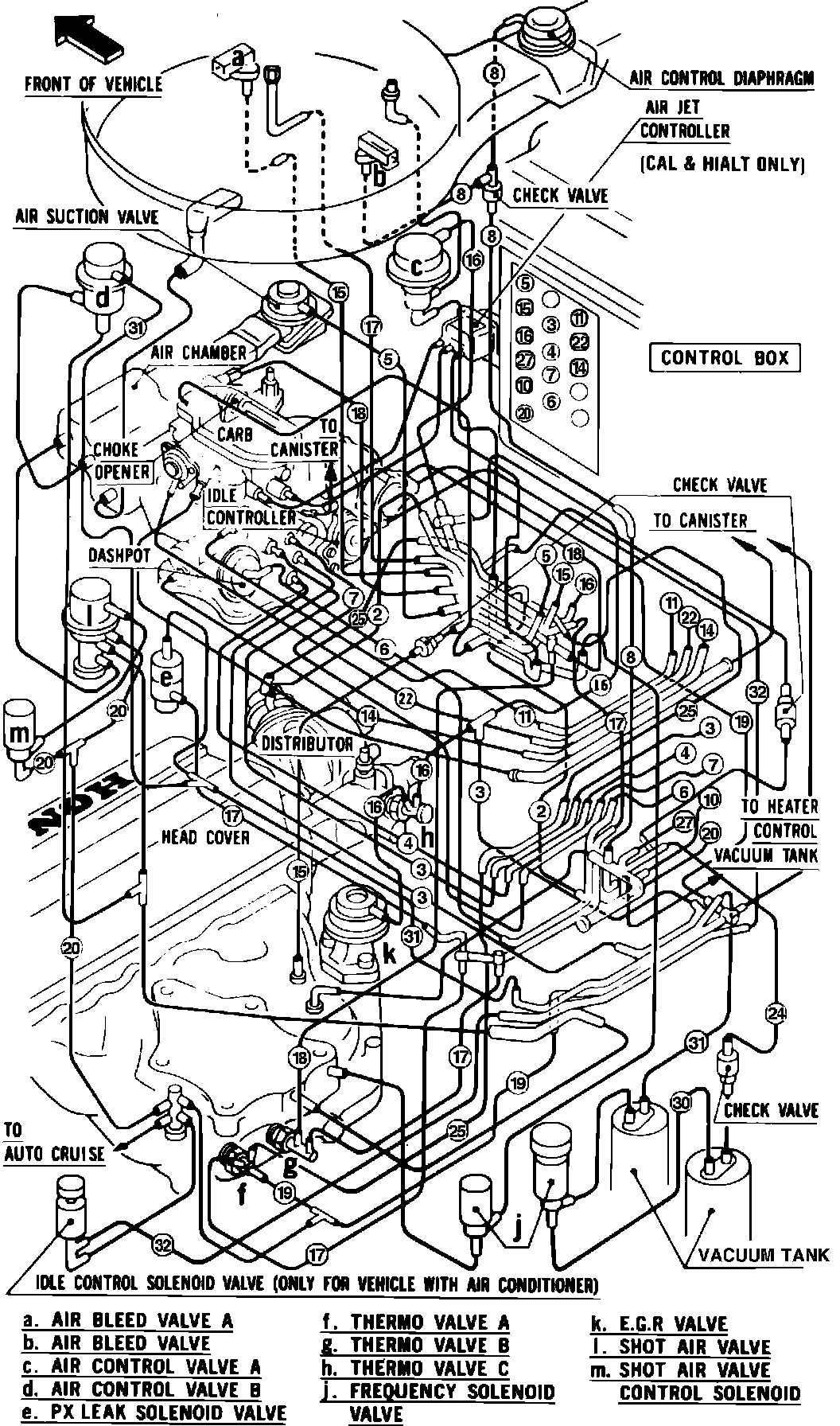

Fig. 1 Engine Compartment Reference Diagram. W/Carbureted Engine:

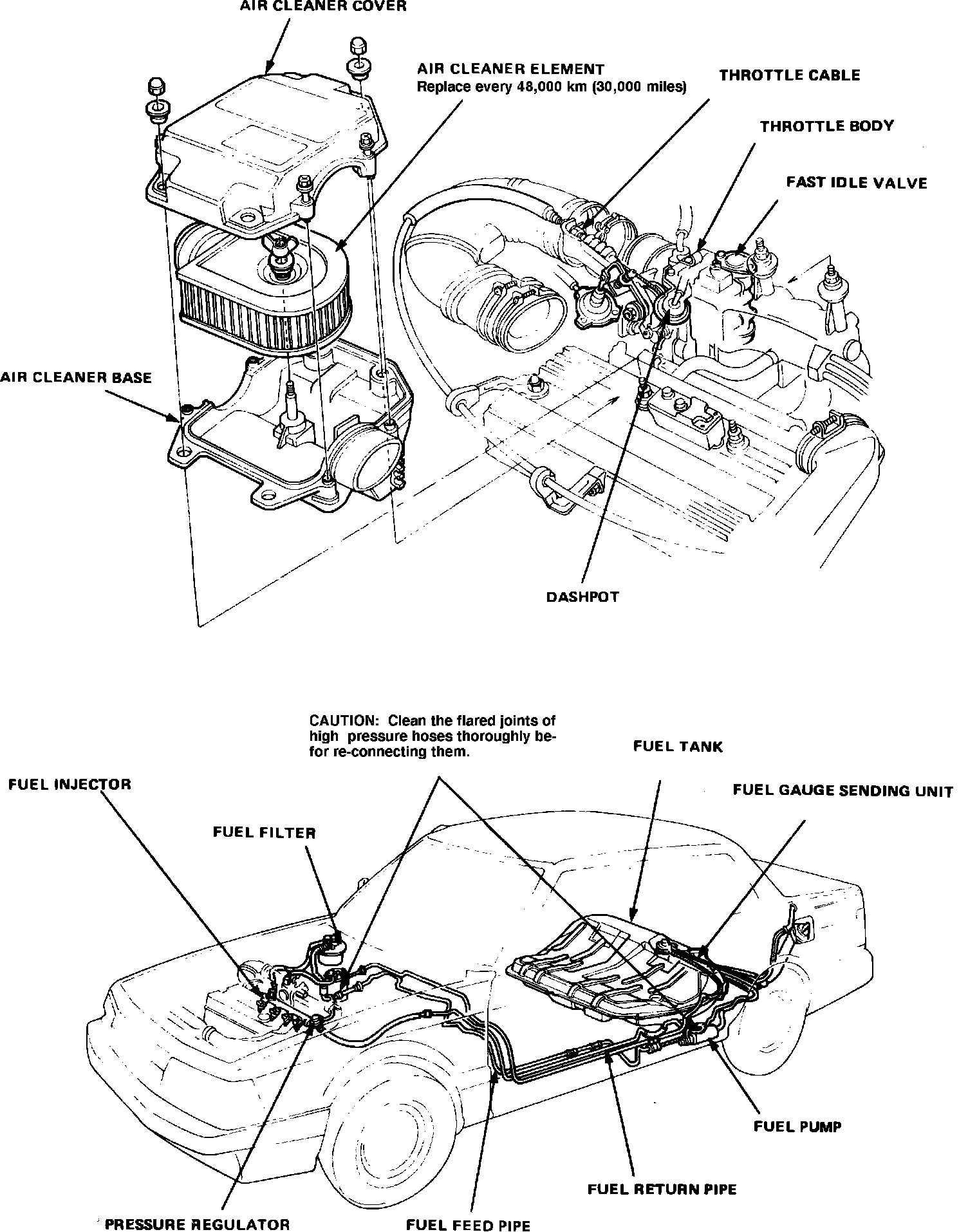

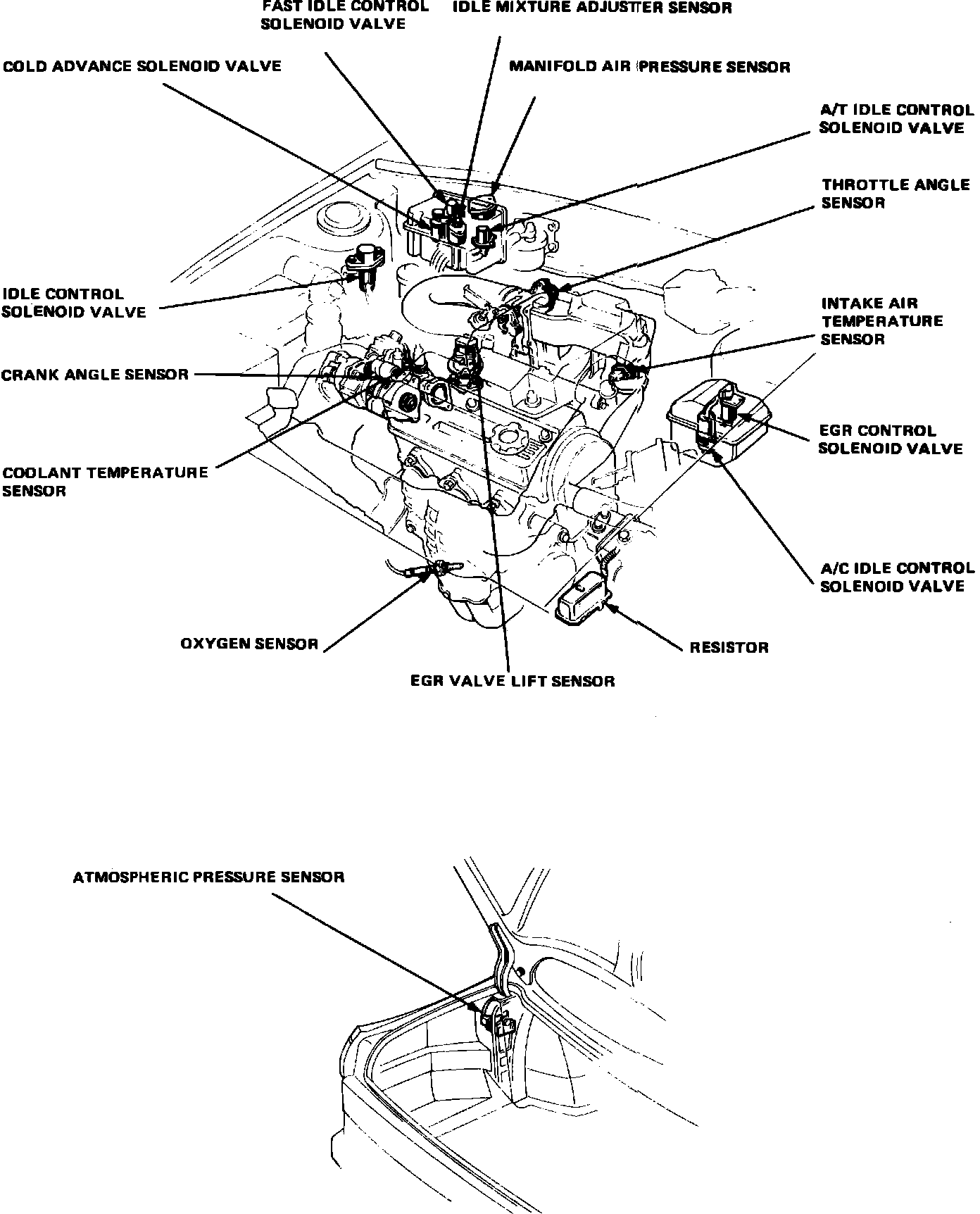

Fig. 3 Engine Compartment Reference Diagram. W/Fuel Injected Engine:

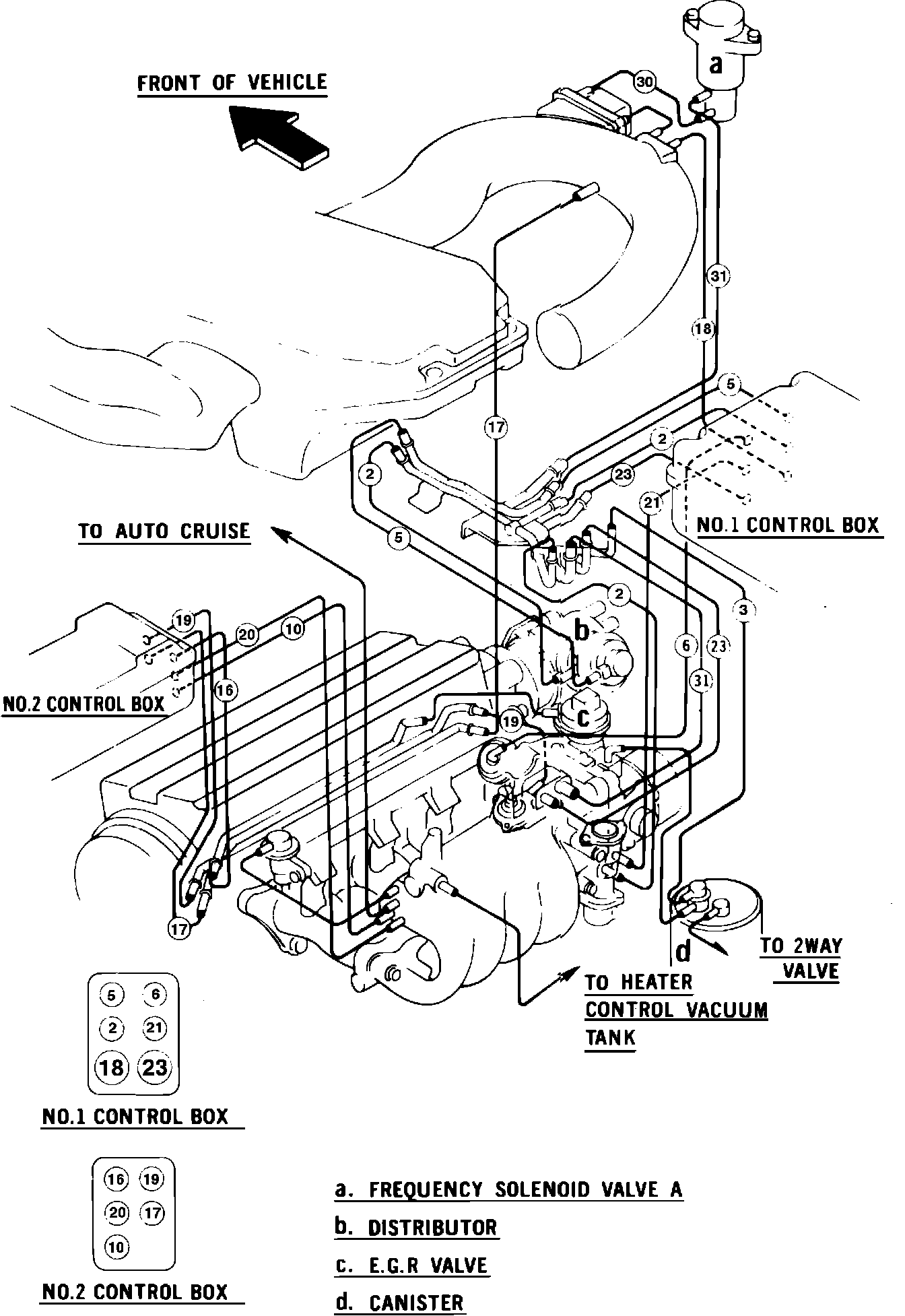

Fig. 3 Engine Compartment Reference Diagram. W/Fuel Injected Engine:

Fig. 3 Engine Compartment Reference Diagram. W/Fuel Injected Engine:
