Honda
>>
1985
>>
Accord L4-1829cc 1.8L SOHC ES, ET 3-bbl
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

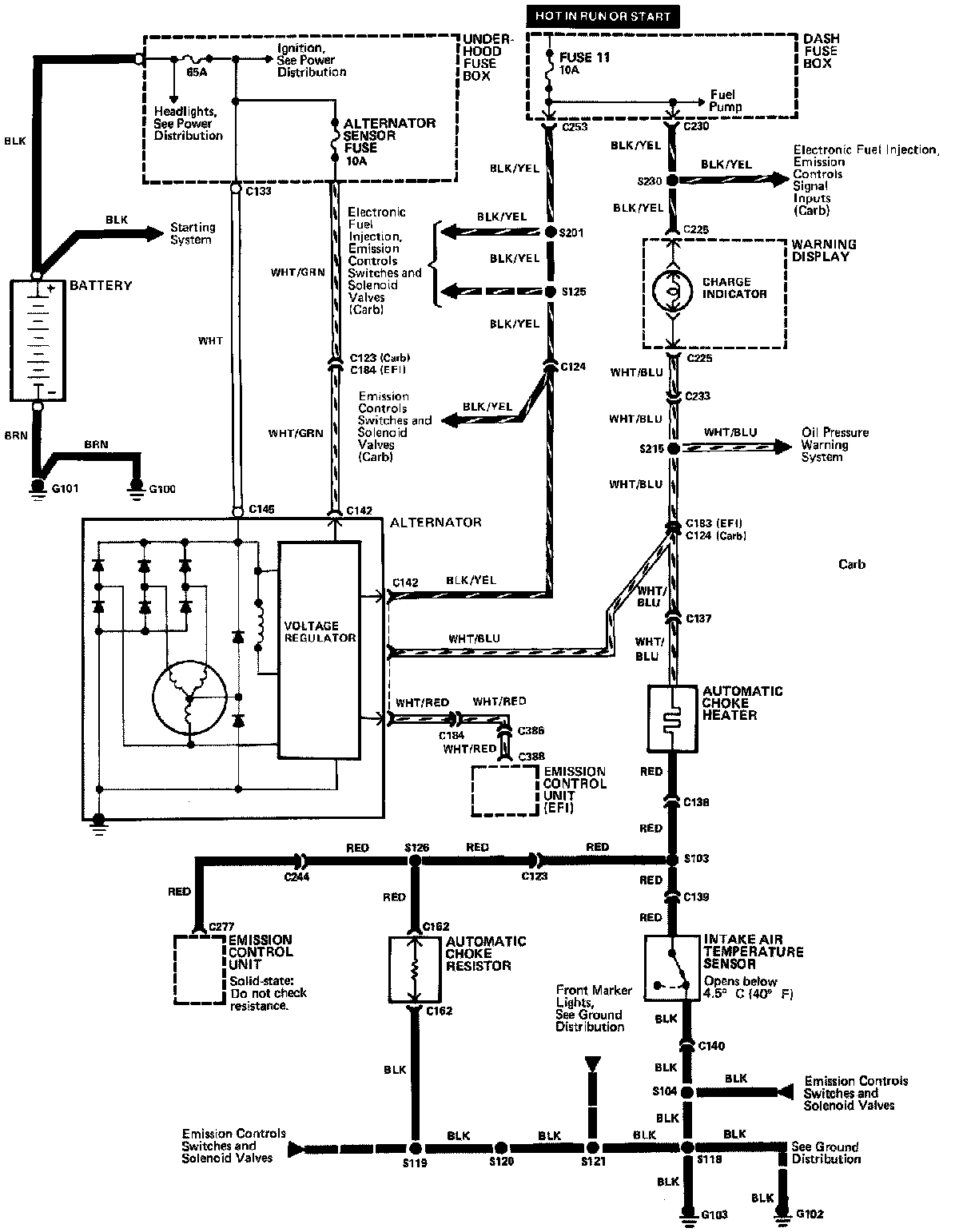

Charging System & Choke Heater:
