Fans and Compressor Controls

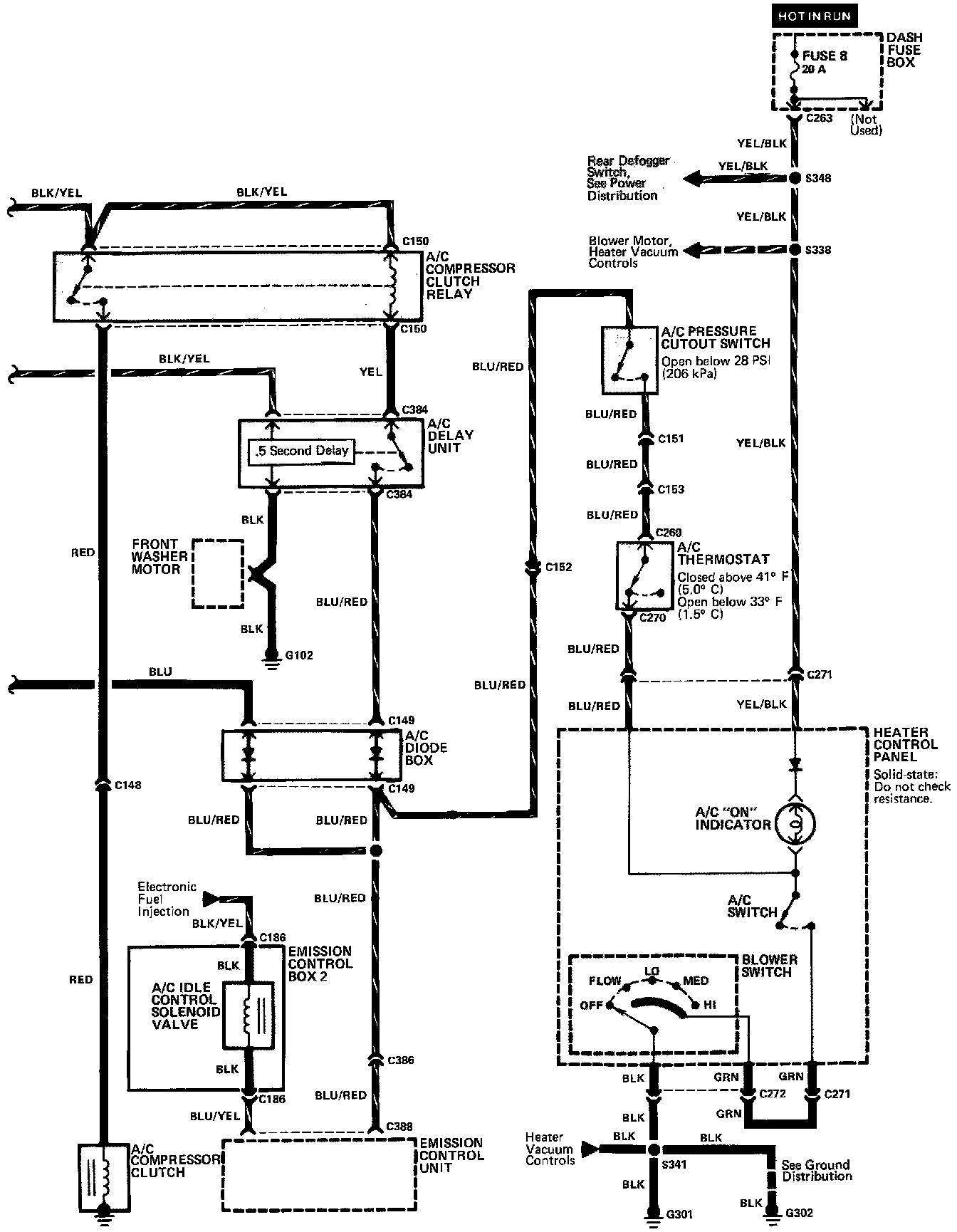

Fans And Air Conditioner Circuit, Part 1 Of 2:

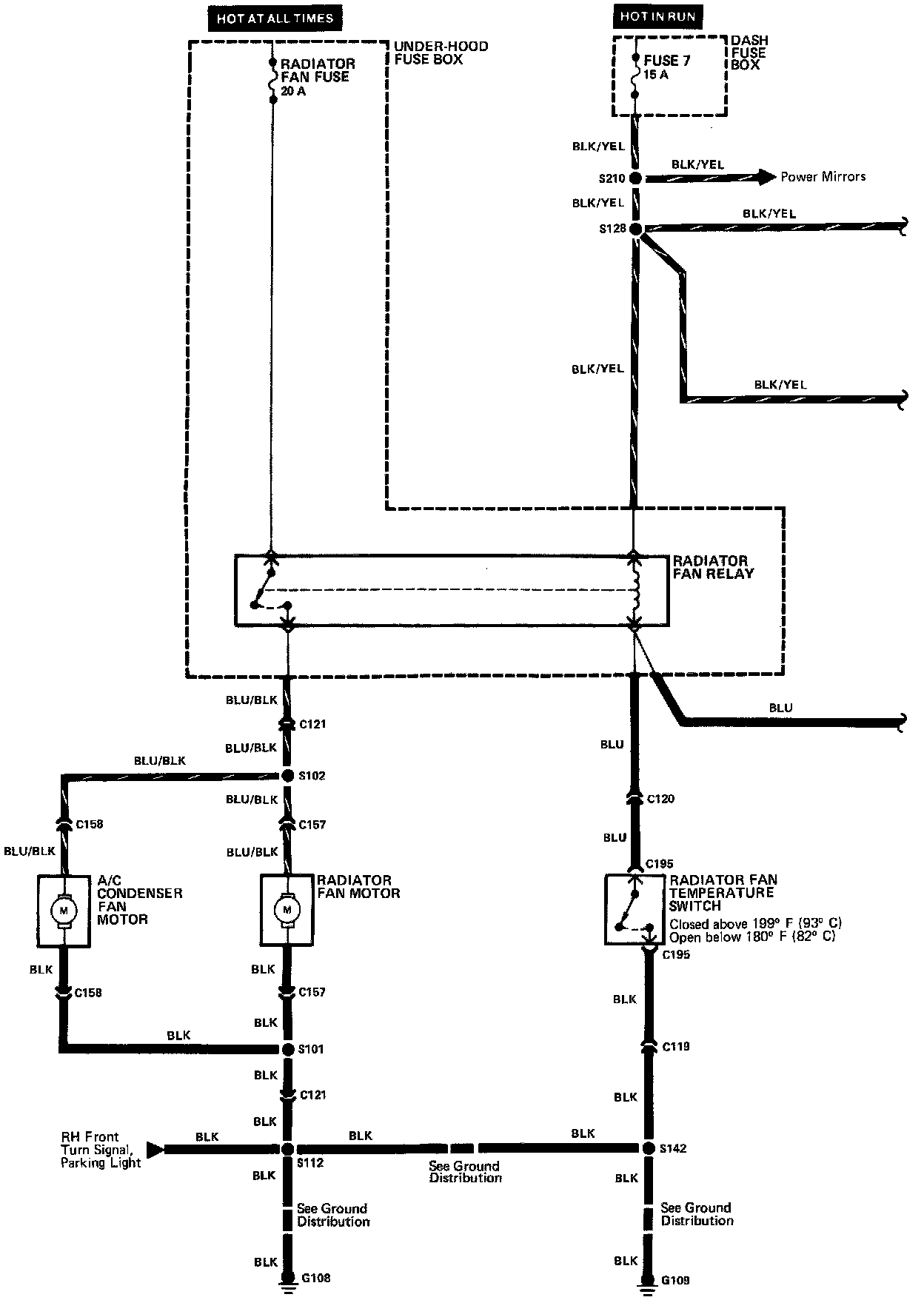

Fans And Air Conditioner Circuit, Part 2 Of 2:
