Radio - Defective D.I.N. Cord On Equalizer

Model Applicable To File Under Bulletin No.
85-023
ALL ALL ACCESSORIES
Issue Date APR 26, '85

Defective D.I.N. Cord on 1985 Model Equalizer

PROBLEM

Either a humming noise, or no sound at all coming from radios equipped with a 1985 graphic equalizer.

CARS AFFECTED

Any car equipped with either of the following 1985 model equalizers:

H/C Part Number Equalizer Serial Number

1785443 08100-ALL065SF up to 50220101
1785468 08100-ALL066SF up to 50213501


CORRECTIVE ACTION

1. Install the new type D.I.N. cord (H/C 2062032) in the car. Replace the radio if it was damaged by the defective D.I.N. cord.

Center Punch:

2. Center punch a mark on the firewall above the third letter of the V.I.N.

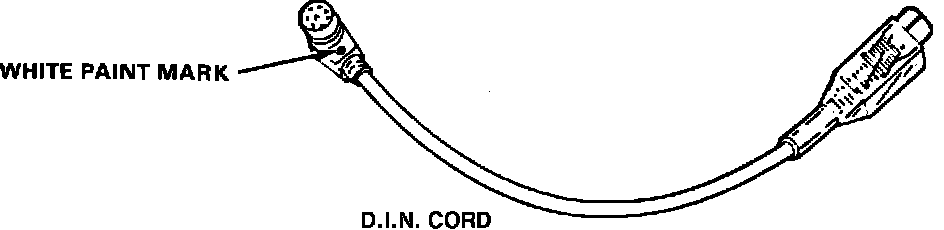

D.I.N. Cord:

PARTS INFORMATION

D.I.N. CORD: H/C 2062032 P/N AE-1V66300F15

The new D.I.N. cord has a white paint mark on its 90-degree connector.

WARRANTY CLAIM INFORMATION

Enter the equalizer's serial number and the name of its manufacturer on the claim under ACCESSORIES INFORMATION.

Operation number: 010205 - Includes R & R of the D.I.N. cord and/or radio.
Flat rate time: Civic-0.6 hour Accord-0.9 hour Prelude-0.4 hour
Failed part H/C: 178546
Defect code: 042
Contention code: B07
