Civic CVCC L4-1342cc 1.3L EV1
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

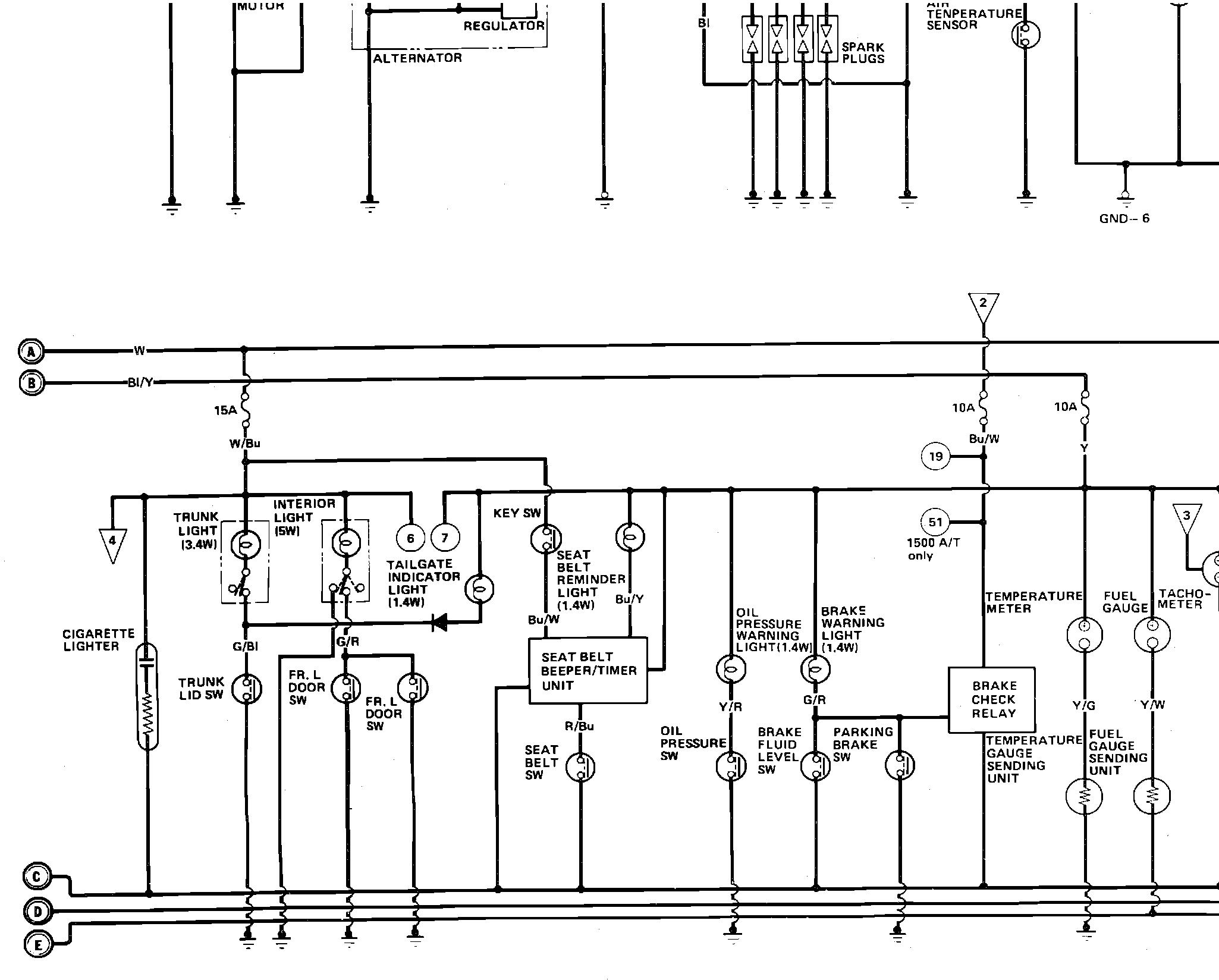

Complete Body & Chassis Wiring Circuit
>>
Hatchback & Sedan
Hatchback & Sedan
L:lc�lc�lc,�lc��lcComplete Body & Chassis Wiring Circuit:
