Hatchback and Sedan

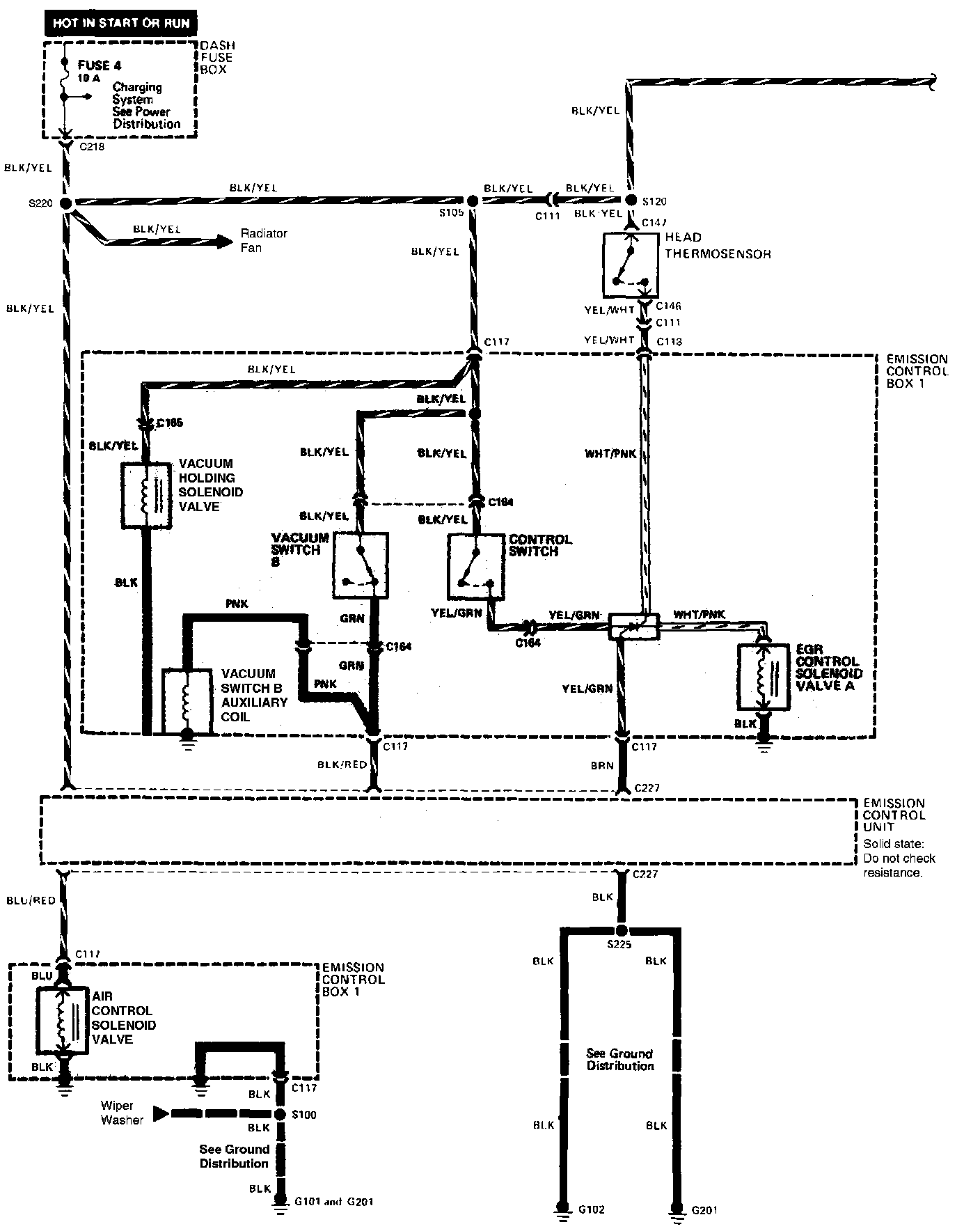

Emission Controls - Part 1 Of 4:

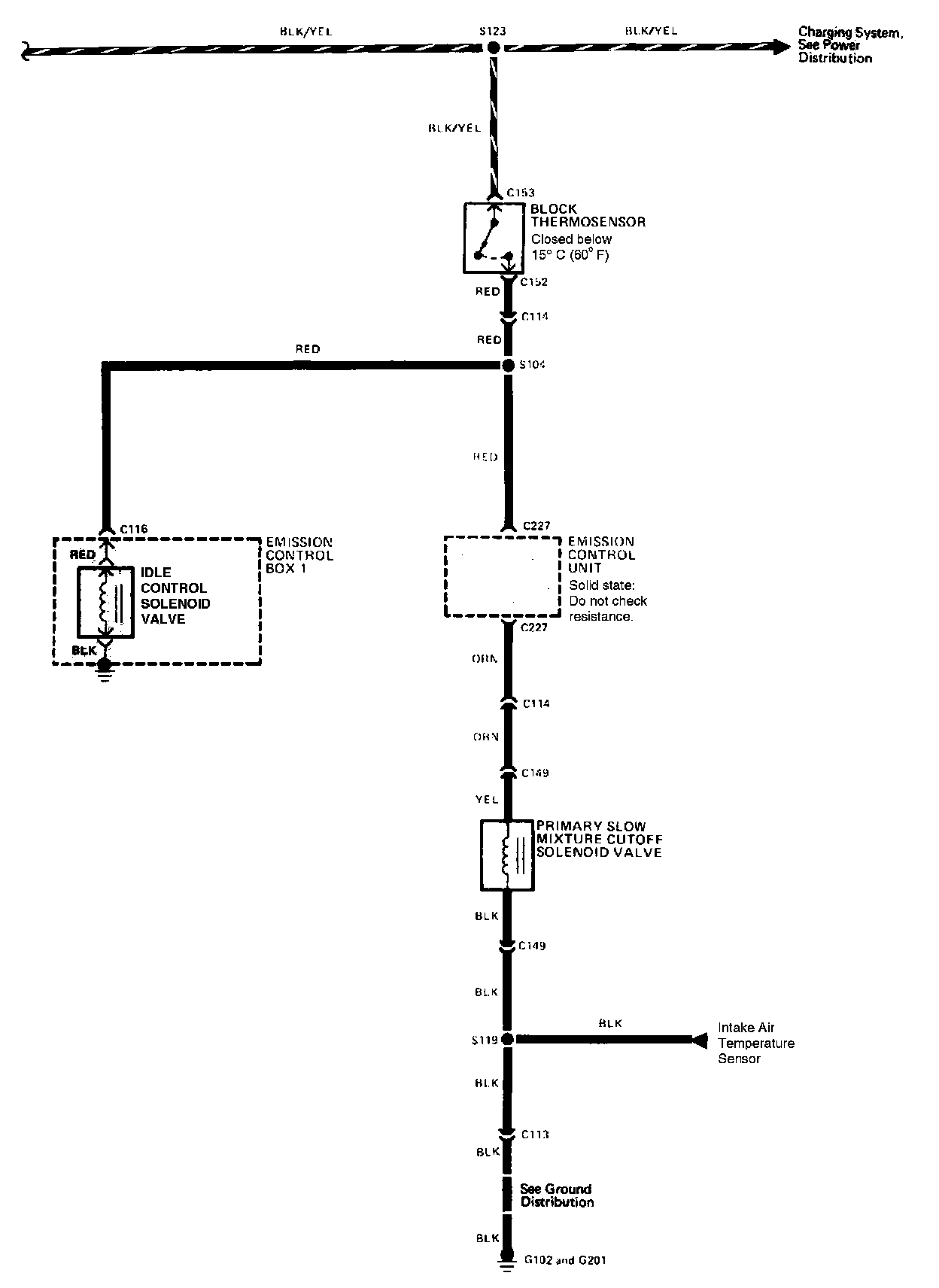

Emission Controls - Part 2 Of 4:

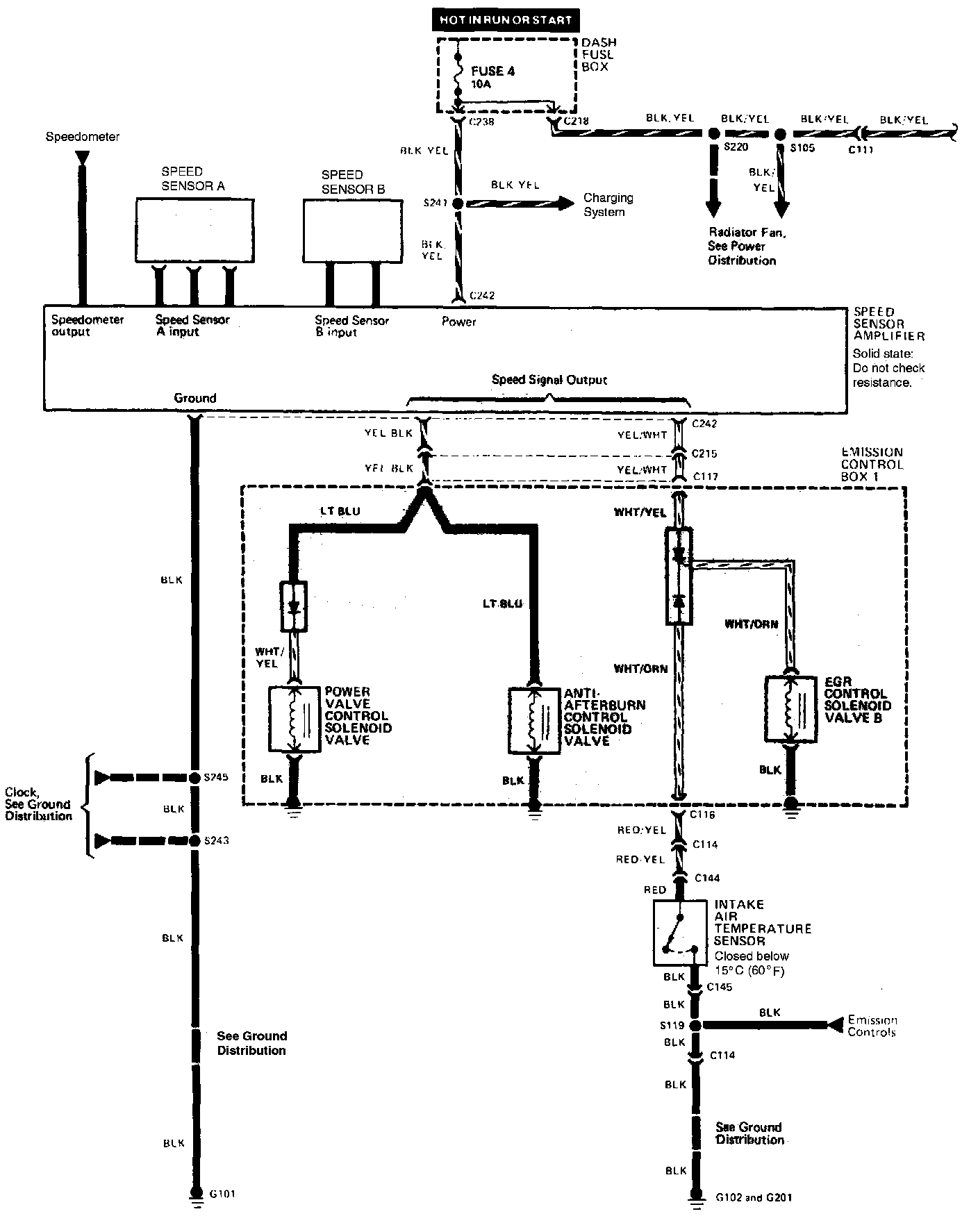

Emission Controls - Part 3 Of 4:




Emission Controls - Part 4 Of 4:
