Home >> Honda >> 1985 >> Civic CVCC L4-1342cc 1.3L EV1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Emission Control Systems >> Deceleration Valve

Deceleration Valve

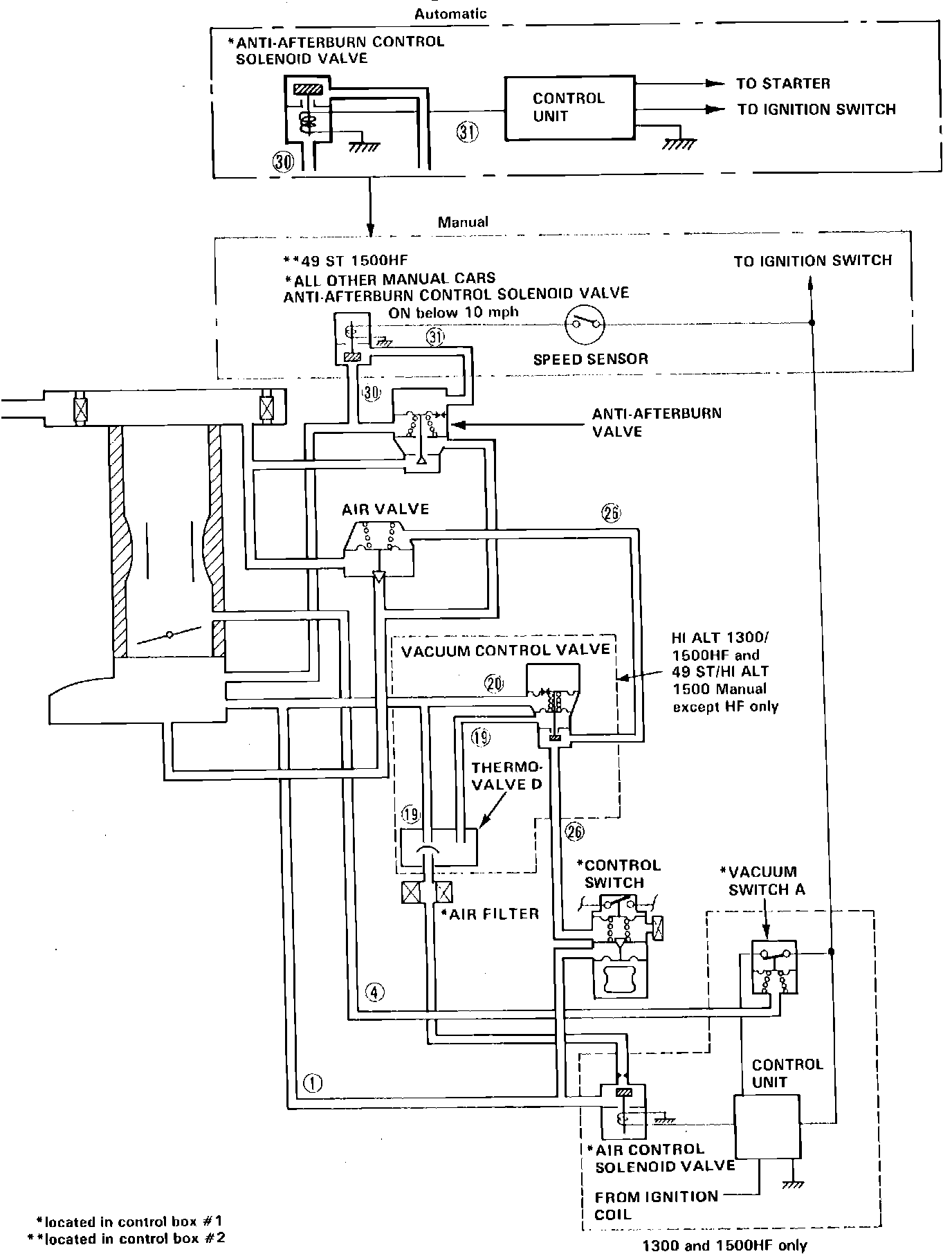

Fig. 508 Anti-Afterburn:
