System Diagram

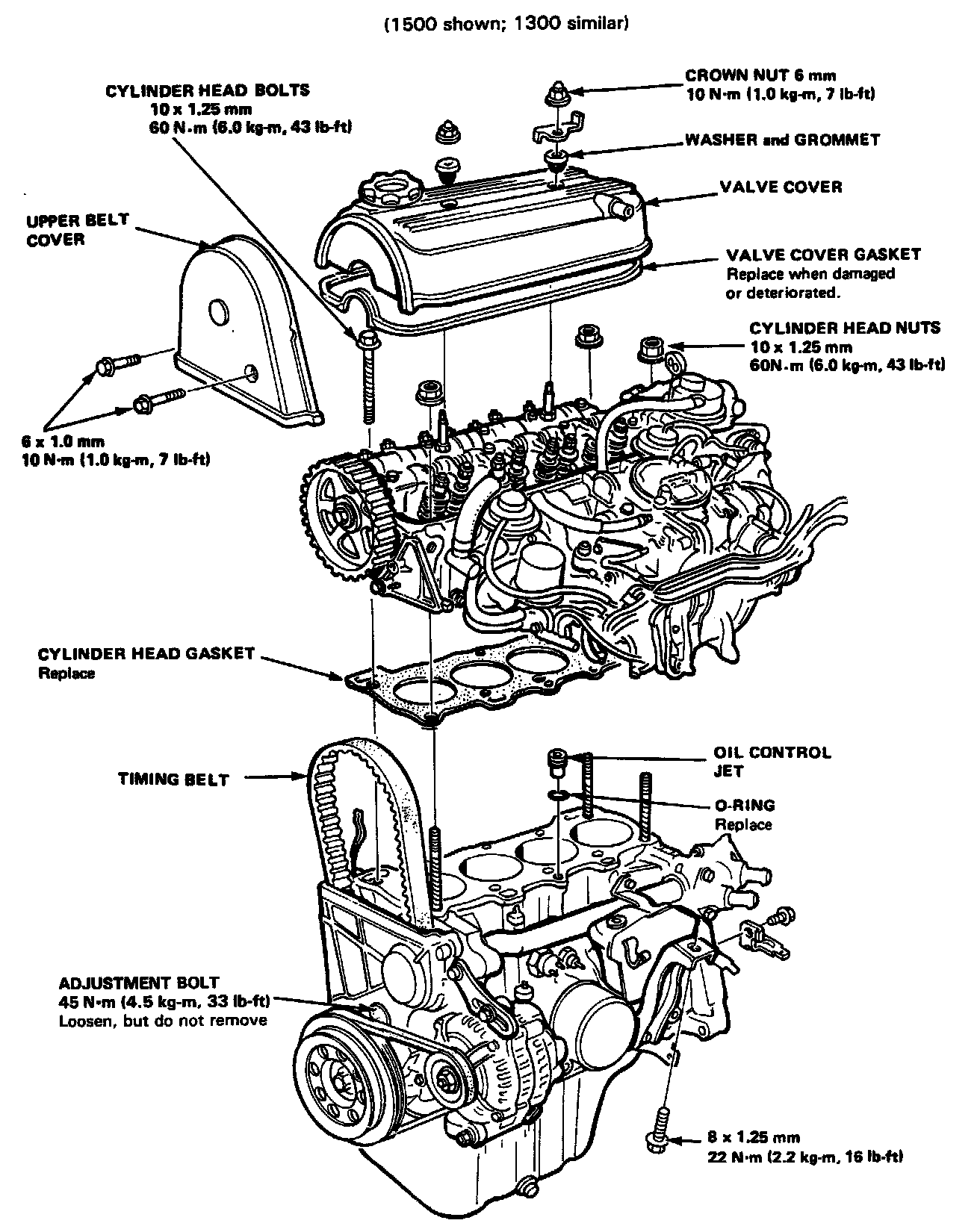

Cylinder Head Assembly And Cover:

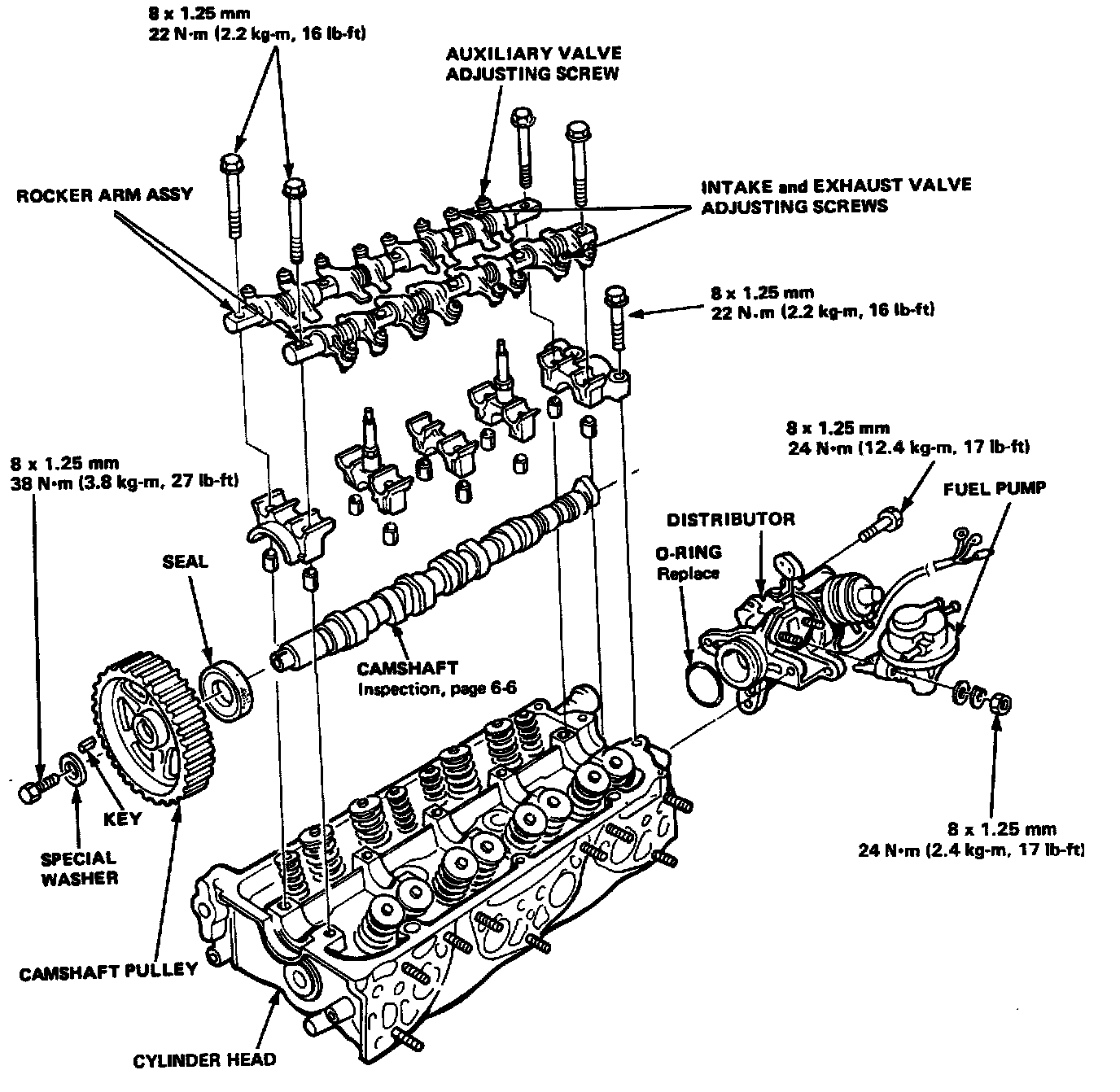

Camshaft, Rockers, Distributor And Fuel Pump:

Valves, Guides And Springs, Auxiliary Valve Components:

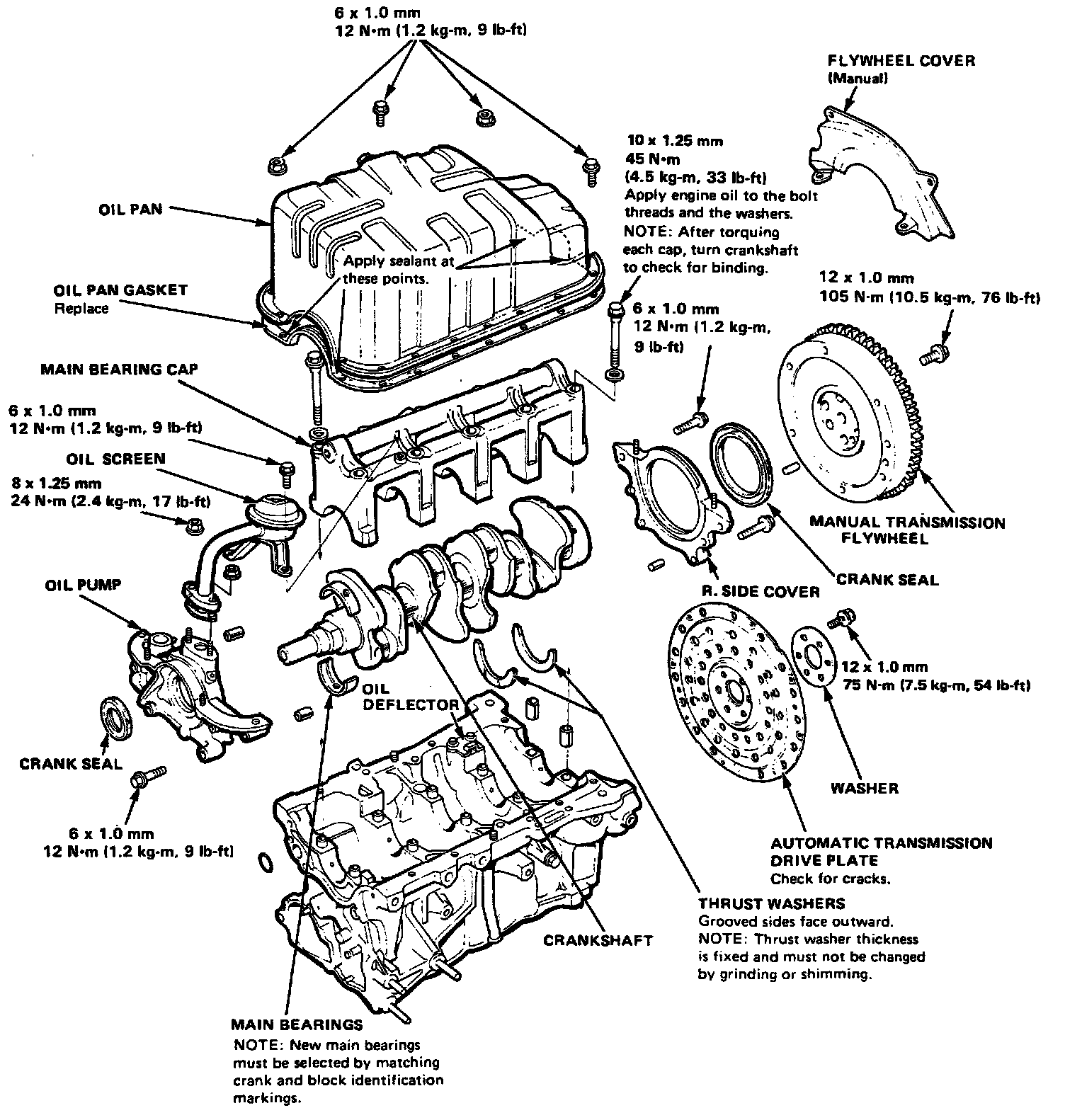

Crankshaft, Main Bearing Caps And Flywheel/Flex Plate:

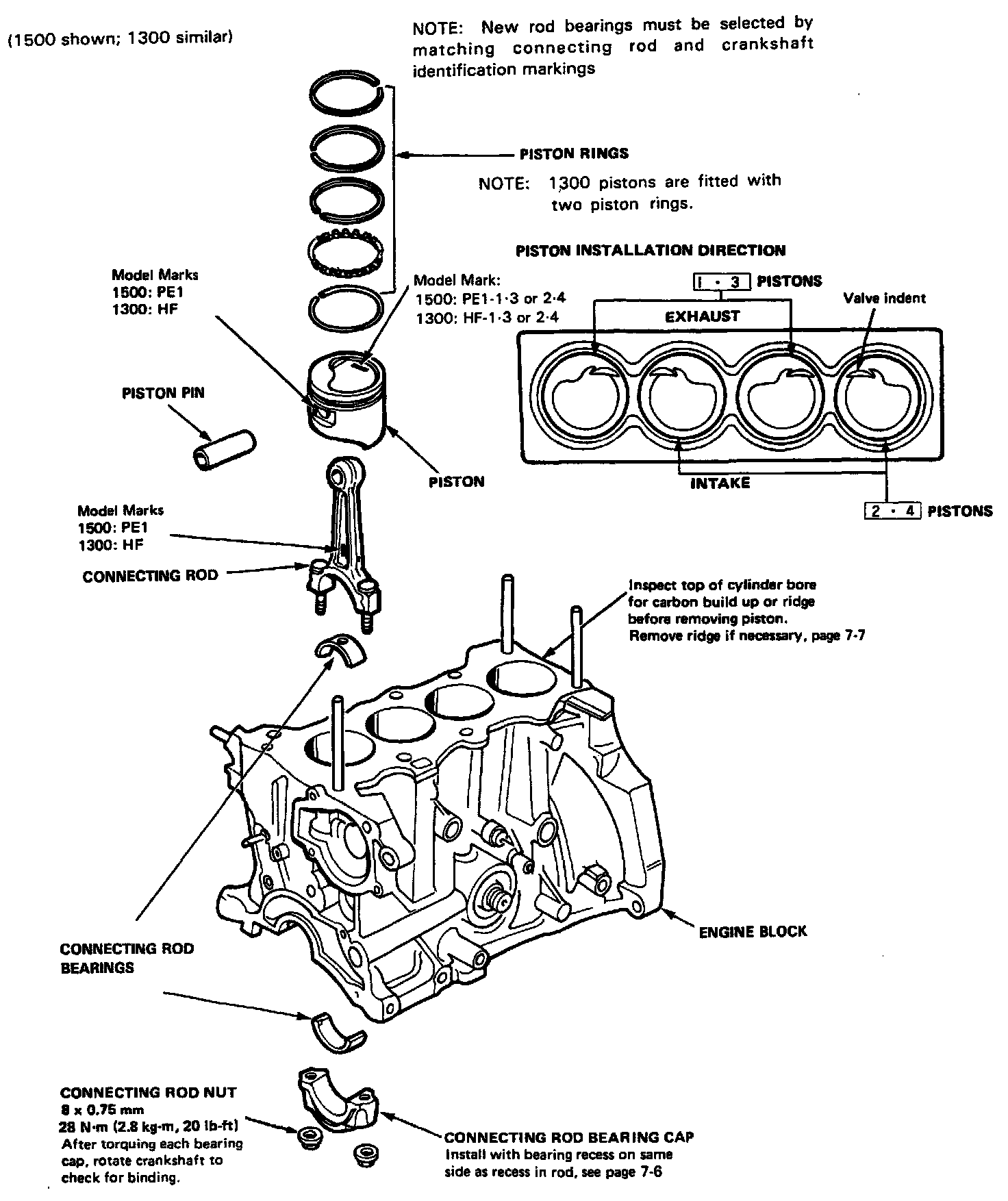

Piston And Connecting Rod:
