Fuse: Locations

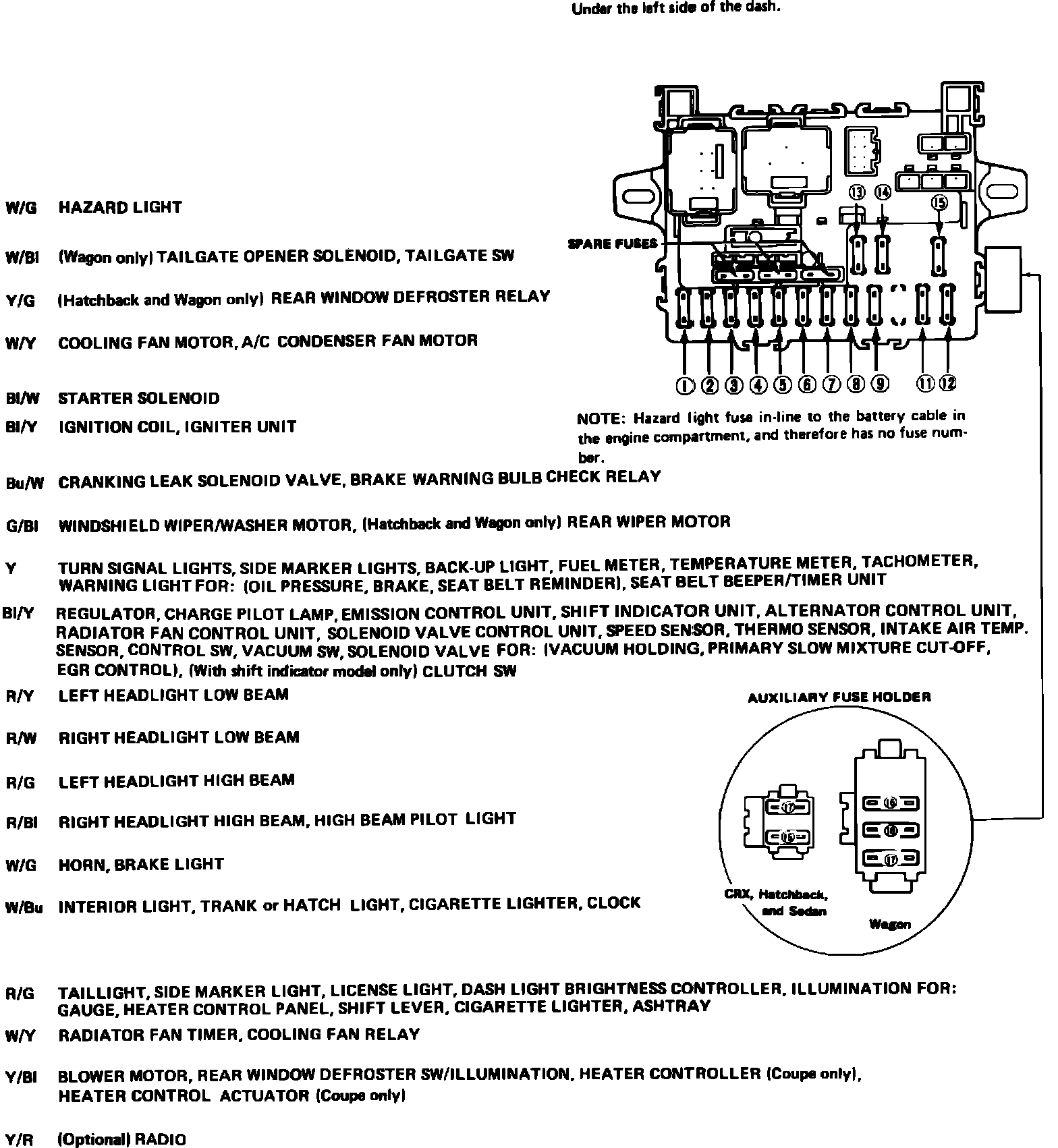

Fig. 3a Fuse Panel (Part 1 of 2):

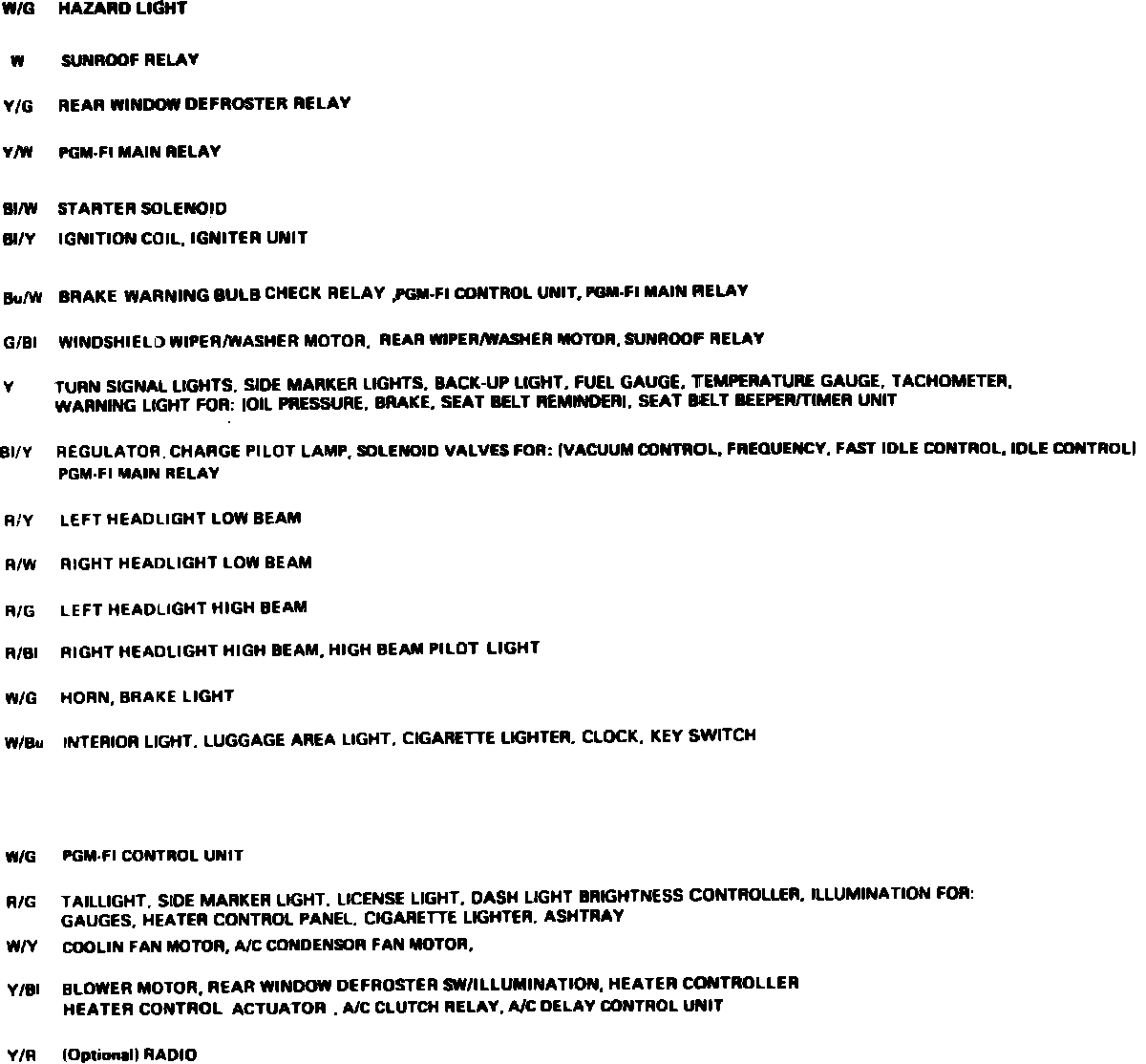

Fig. 3b Fuse Panel (Part 2 of 2):

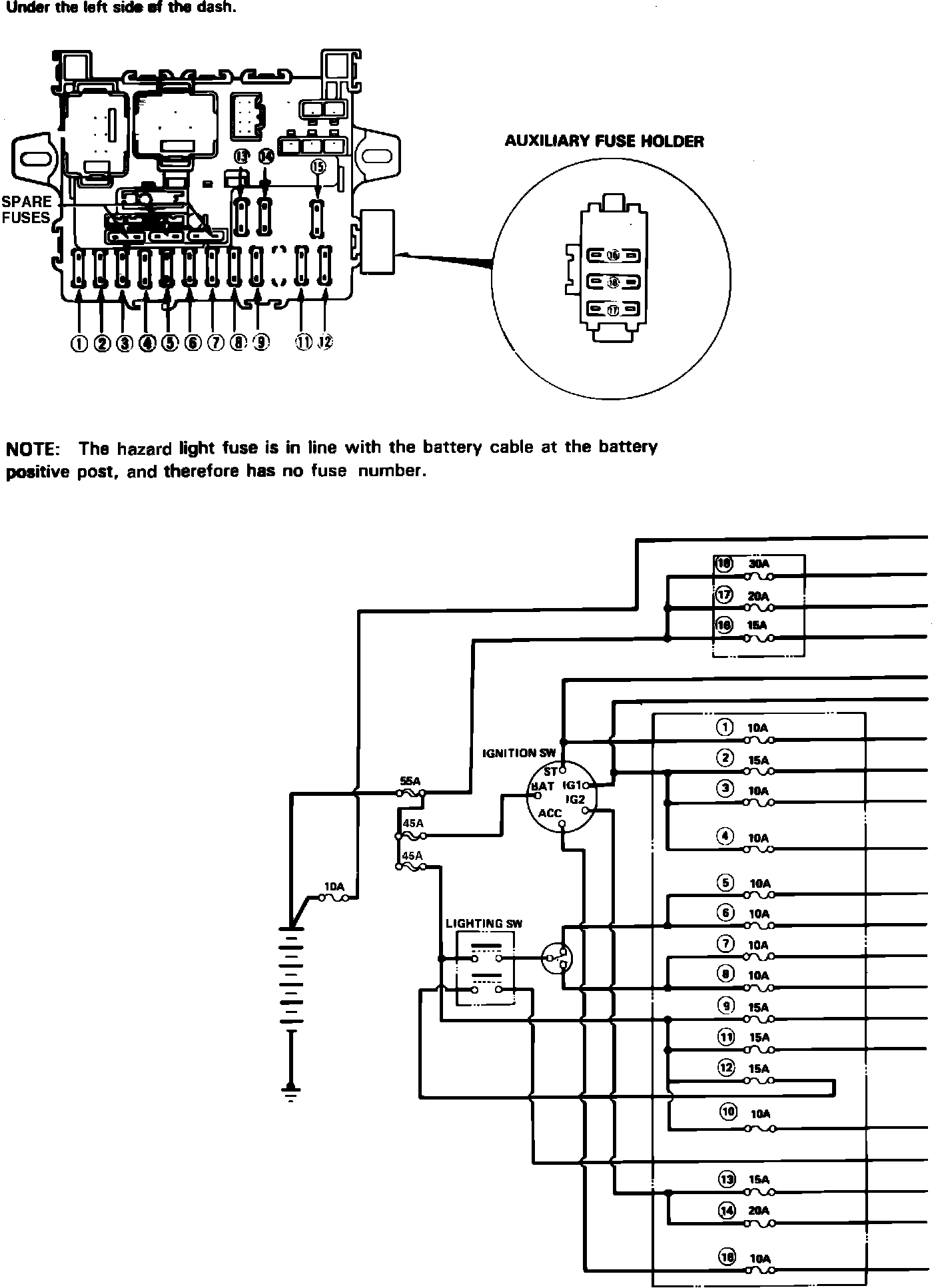

Fig. 5a Fuse Panel (Part 1 of 2). 1985 Civic 4WD Wagon:

Fig. 5b Fuse Panel (Part 2 of 2):
