Operation CHARM: Car repair manuals for everyone.
Home >> Honda >> 1985 >> Civic CVCC L4-1342cc 1.3L EV1 >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Adjustments >> Carbureted Engine

Carbureted Engine

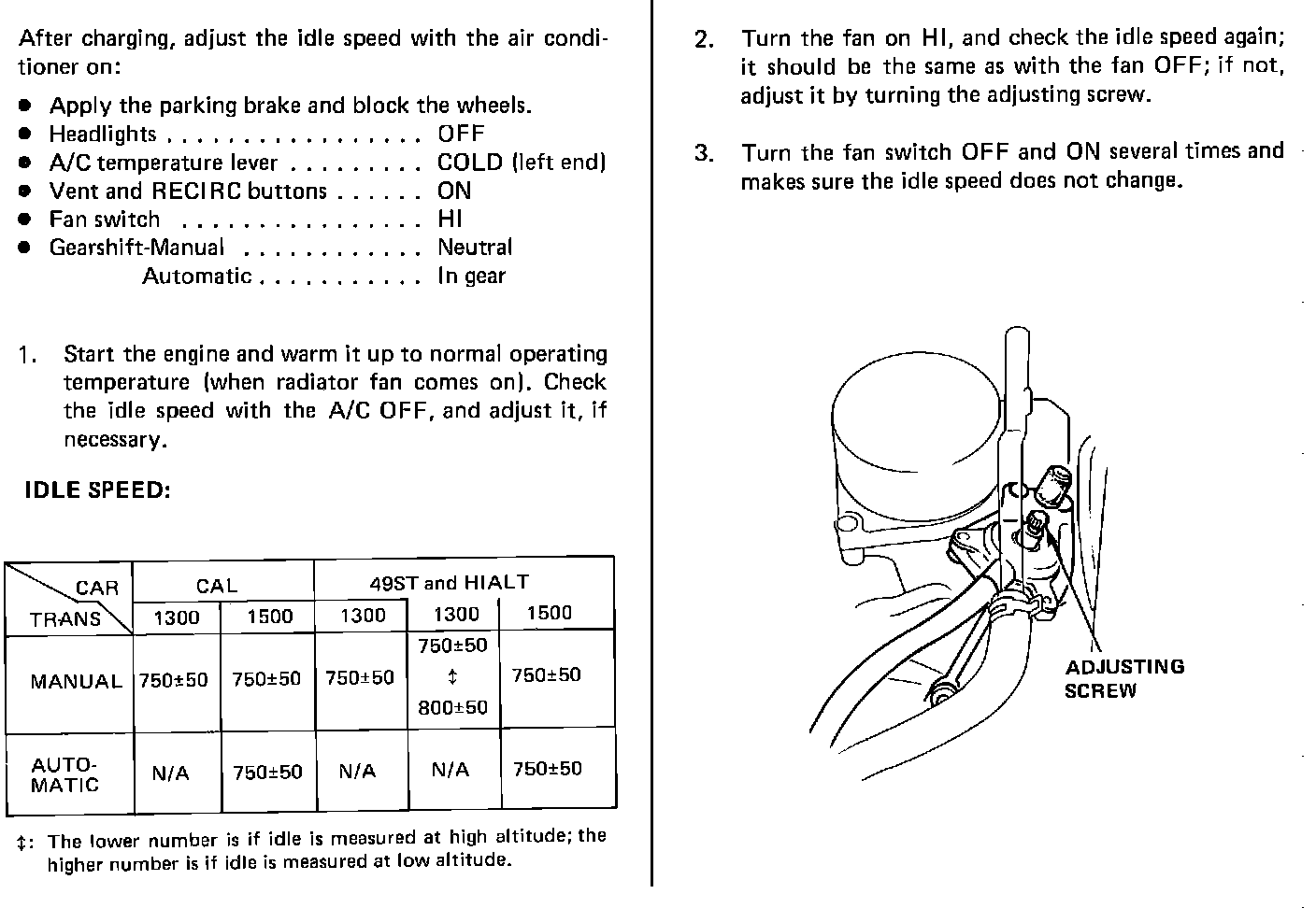

Fig. 36 Idle speed adjustment, carbureted.:



Fig. 39 Idle speed adjustment.:
