Turn Signals: Testing and Inspection

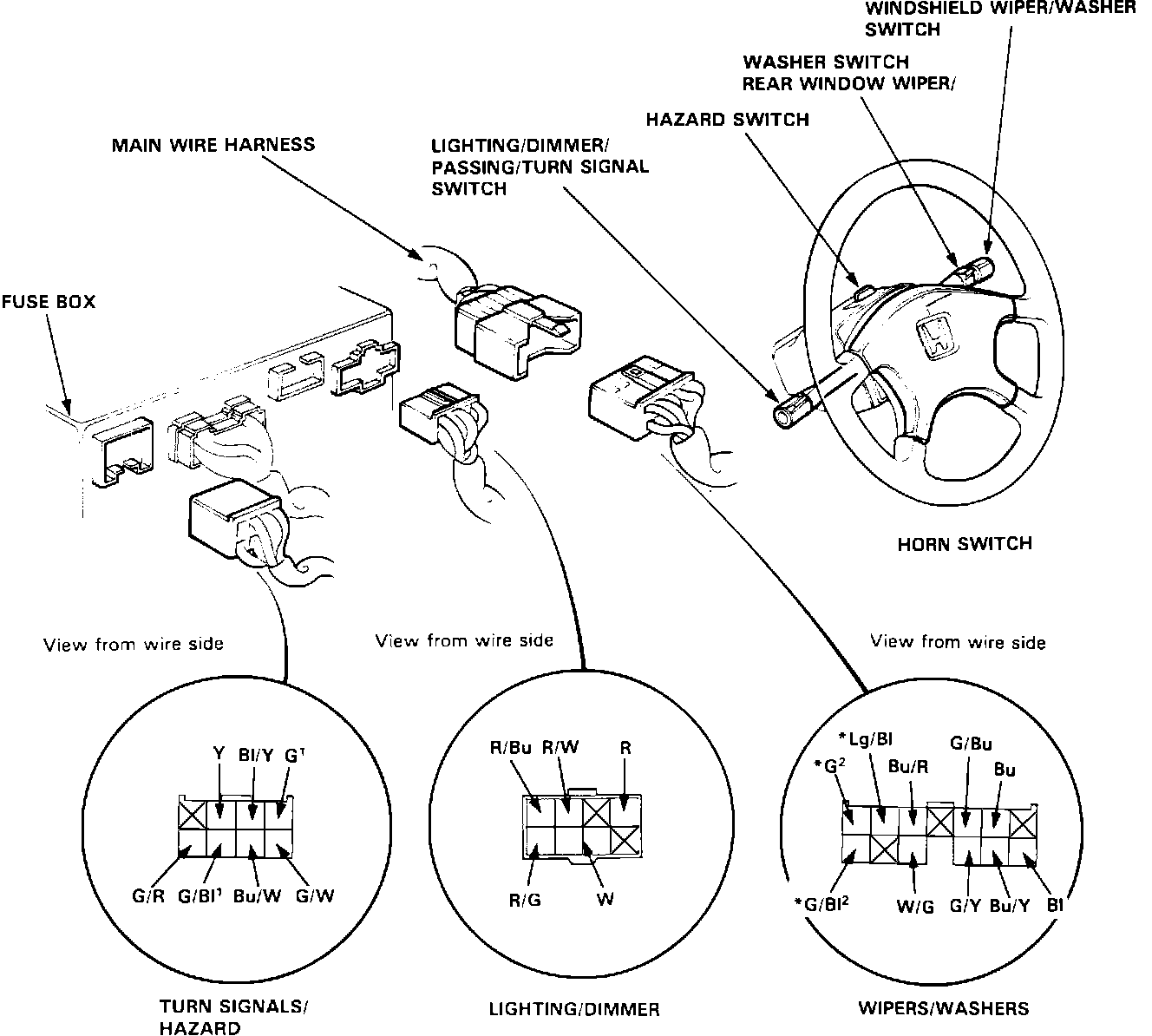

Combination Switch Connector Identification:

1. Disconnect wiper, turn signal, and lighting switch connectors from behind the fuse panel.

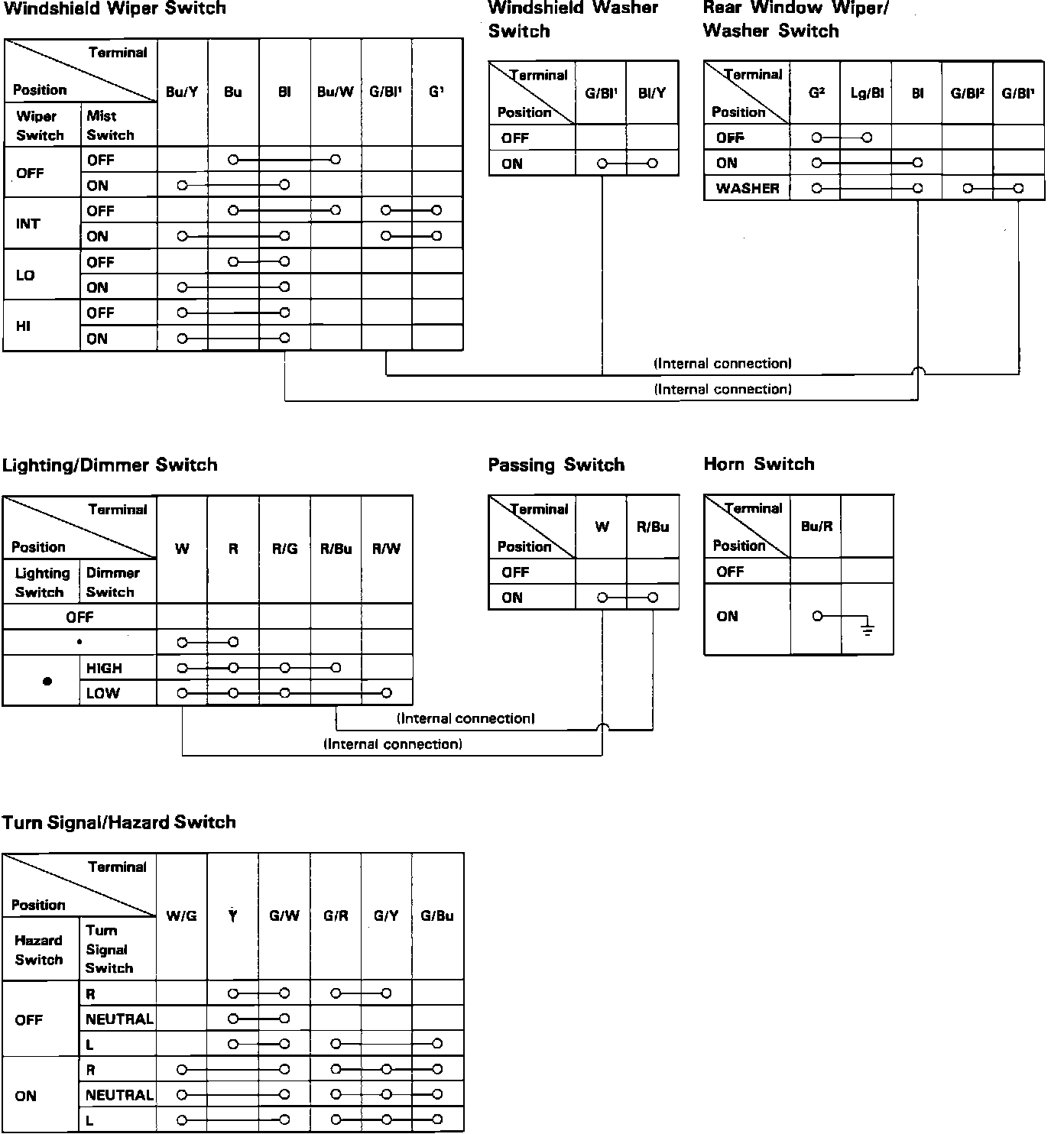

Combination Switch Testing Chart:

2. Check continuity between all terminals shown on testing chart, observing switch positions indicated.
3. Replace combination switch if any circuit fails to provide desired results.
