Vacuum Hose Routing Diagram (A/T)

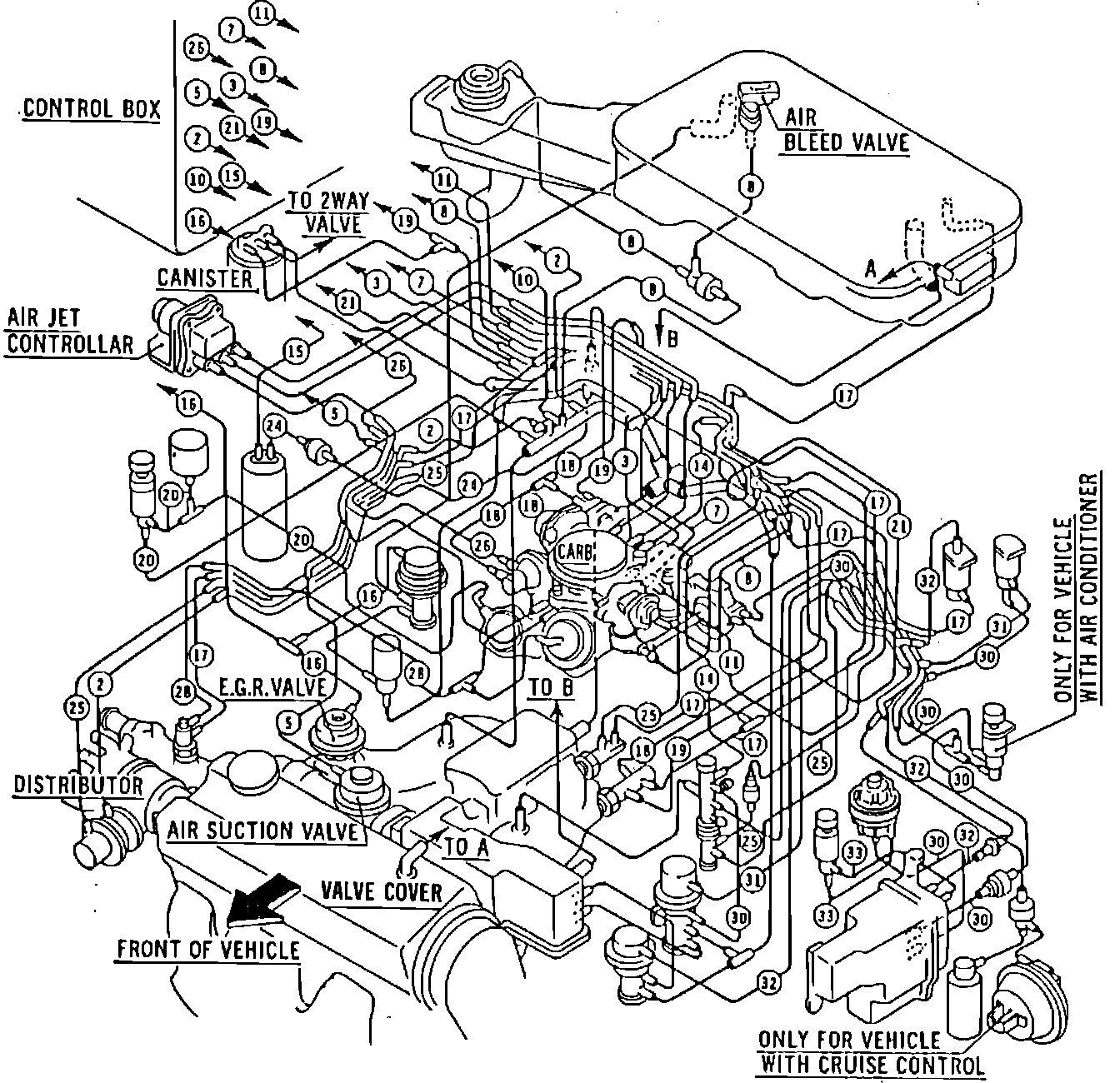

Fig. 34 Interconnect Diagram A/T:



Fig. 32 Interconnect Diagram M/T:
