Vacuum and Electrical Connections Schematic (M/T)

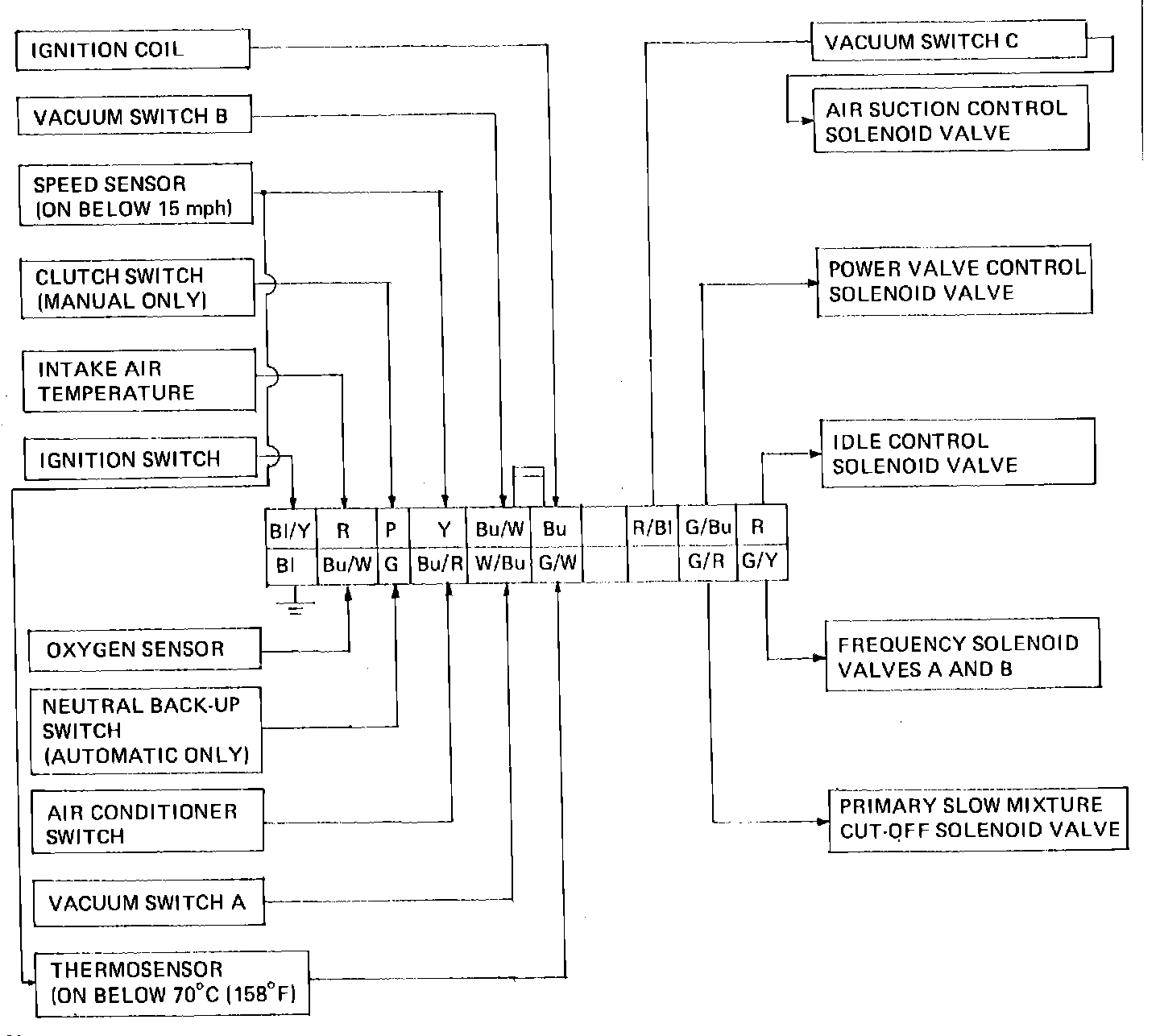

Fig. 36 Vacuum & Electrical Connections M/T:



Fig. 37 Vacuum & Electrical Connections A/T:
