Home >> Honda >> 1986 >> Accord L4-1955cc 2.0L SOHC 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Early Fuel Evaporation ( EFE ) >> Locations

Early Fuel Evaporation ( EFE ): Locations

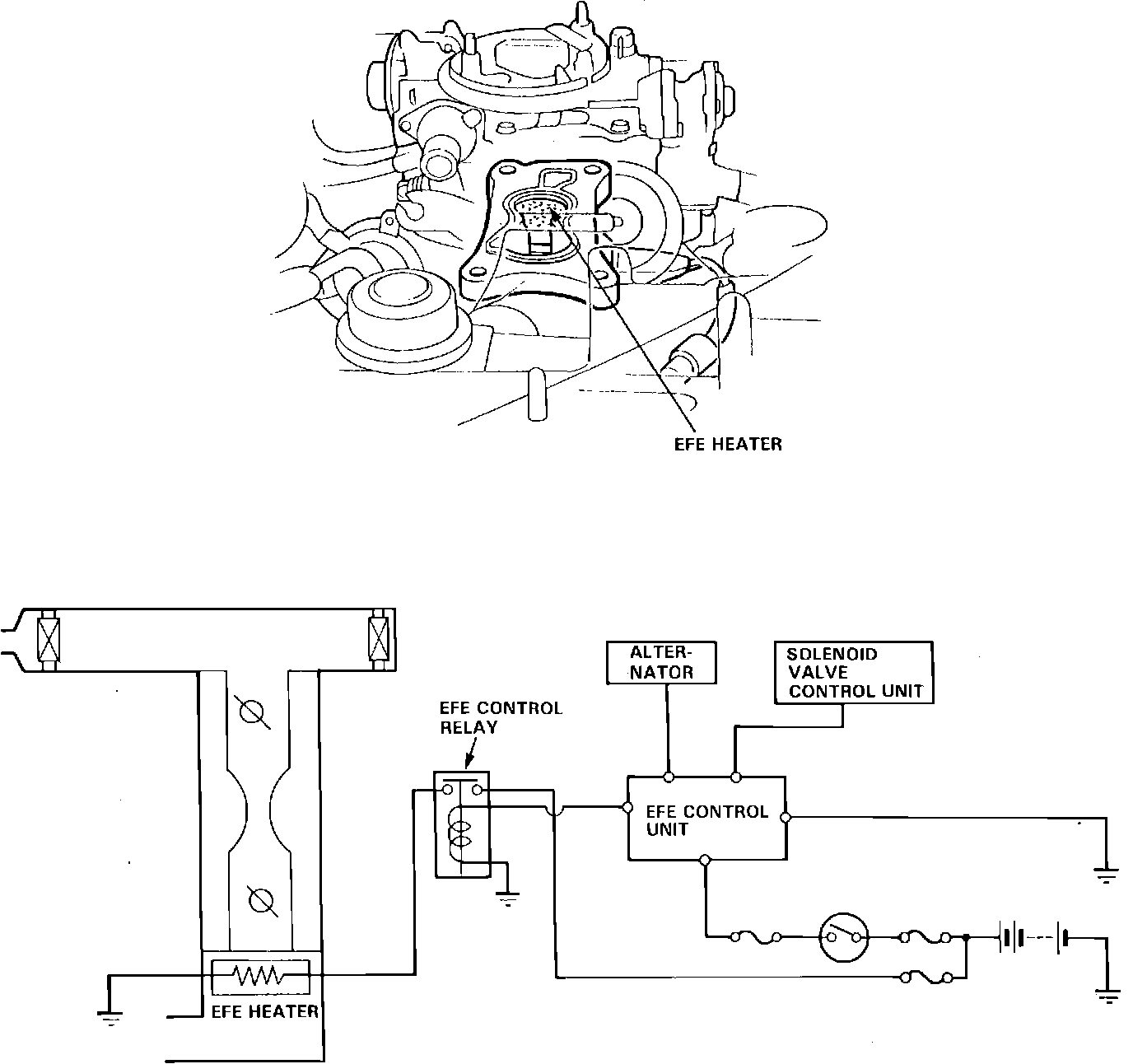

Fig. 28 Early Fuel Evaporator System:
