Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1986
>>
Accord L4-1955cc 2.0L SOHC FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Control Assembly, HVAC
Control Assembly, HVAC

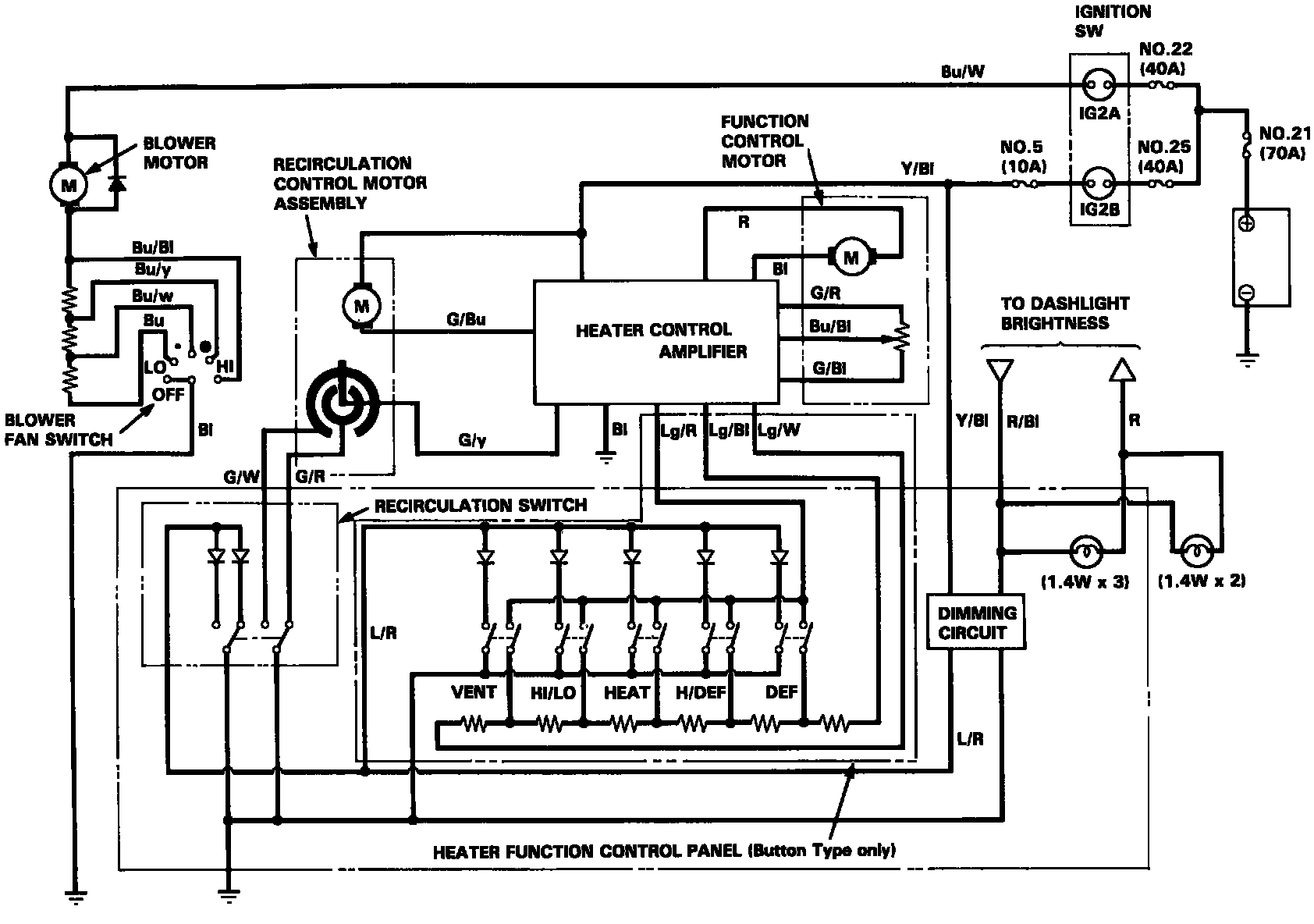

Heater System:
