Home
>>
Honda
>>
1986
>>
Accord L4-1955cc 2.0L SOHC FI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Diagrams
>>
Electrical Diagrams
>>
Air Conditioning System
Air Conditioning System

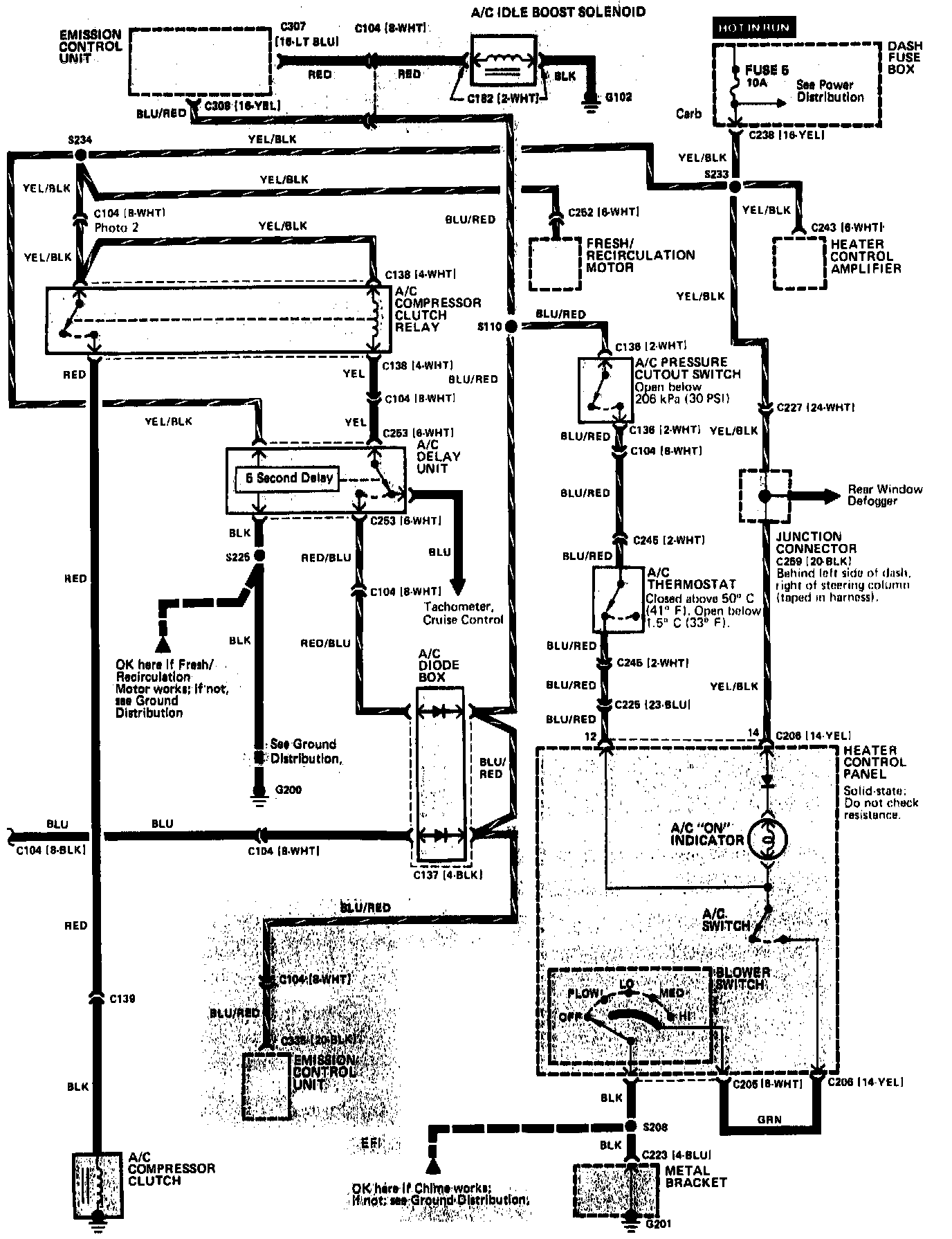

Fans And Air Conditioner, 1 Of 2:

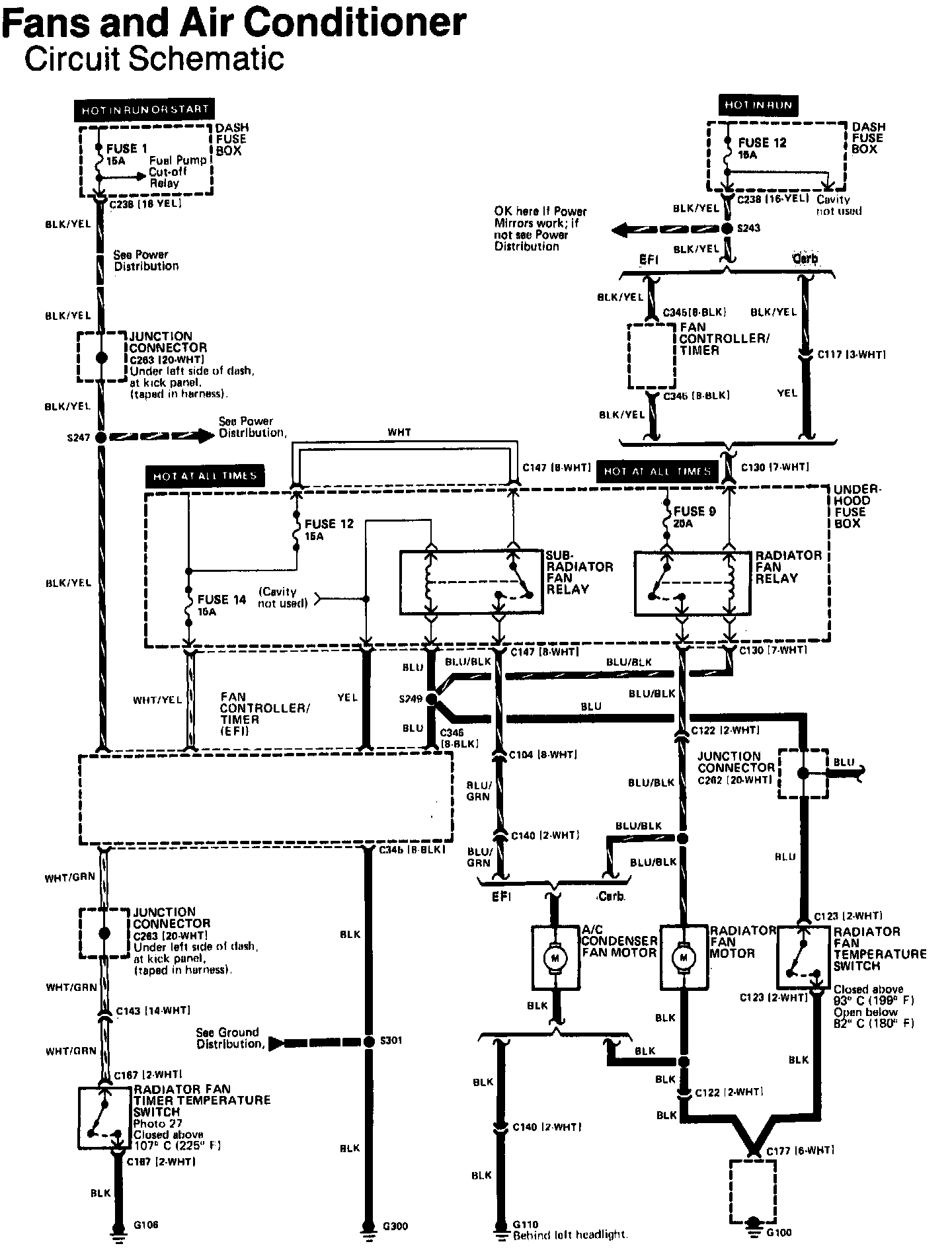

Fans And Air Conditioner, 2 Of 2:
