System Diagram

Mount Tightening Sequence:

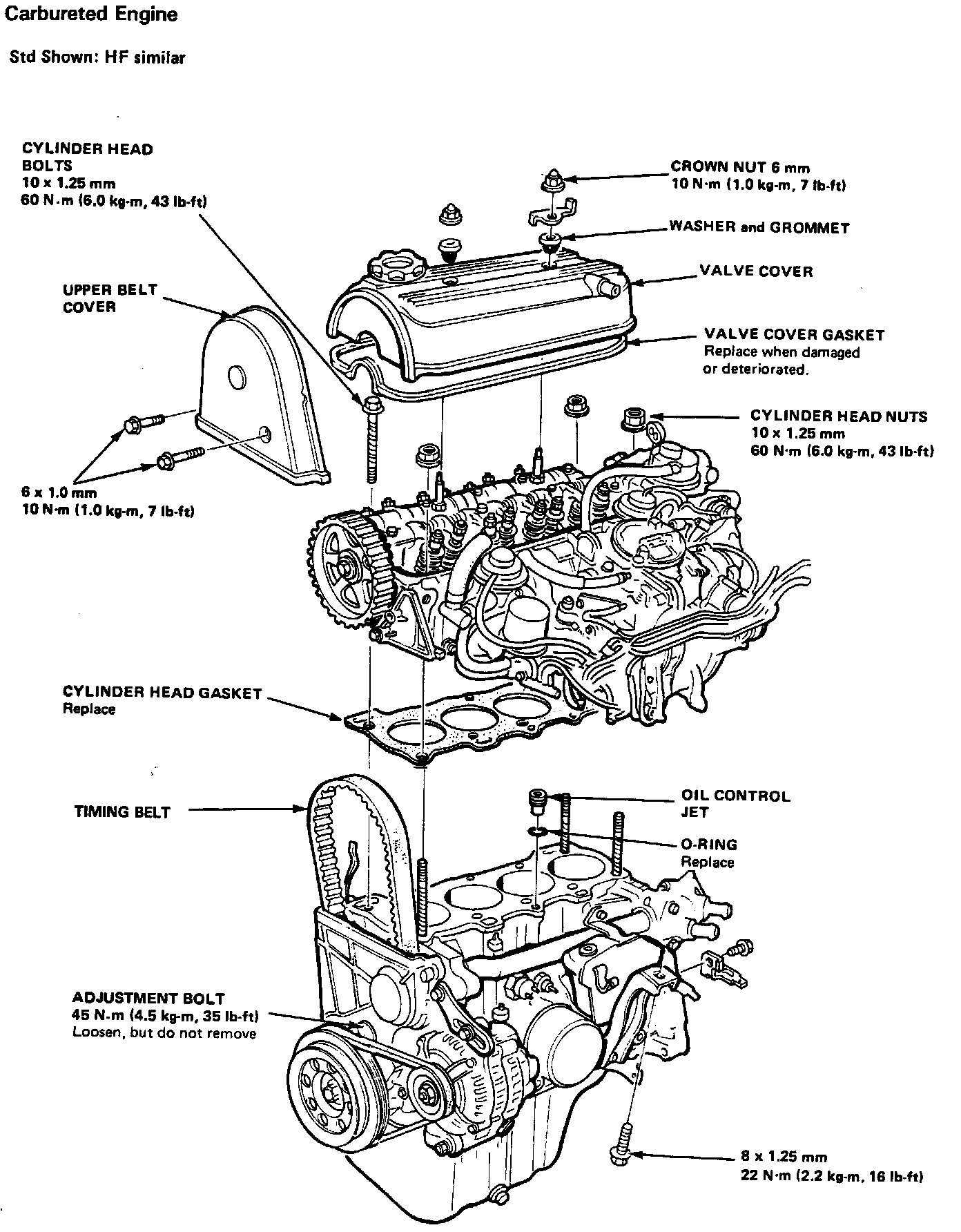

Cylinder Head Assembly - Carbureted Engine:

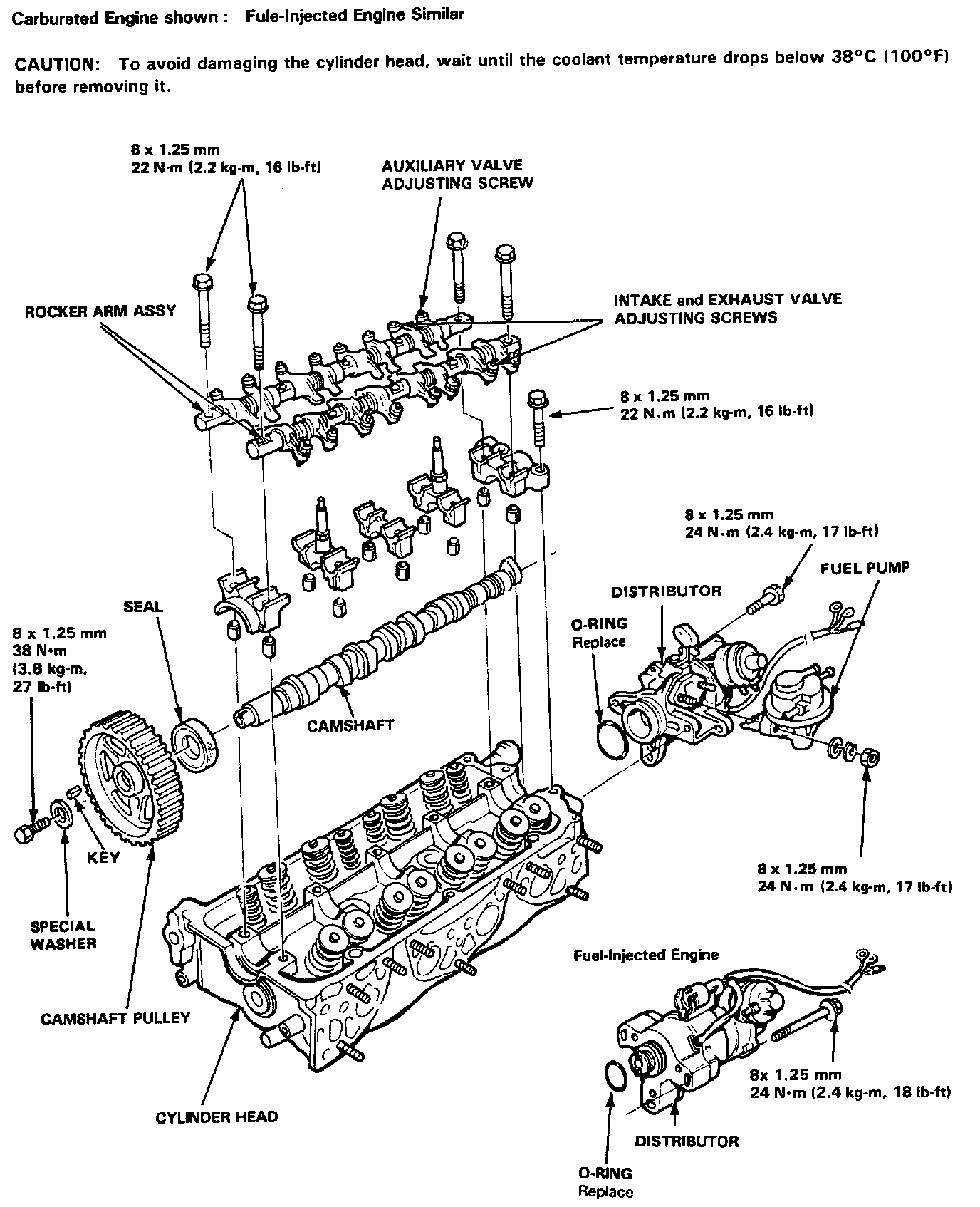

Camshaft, Rockers, Distributor And Fuel Pump:

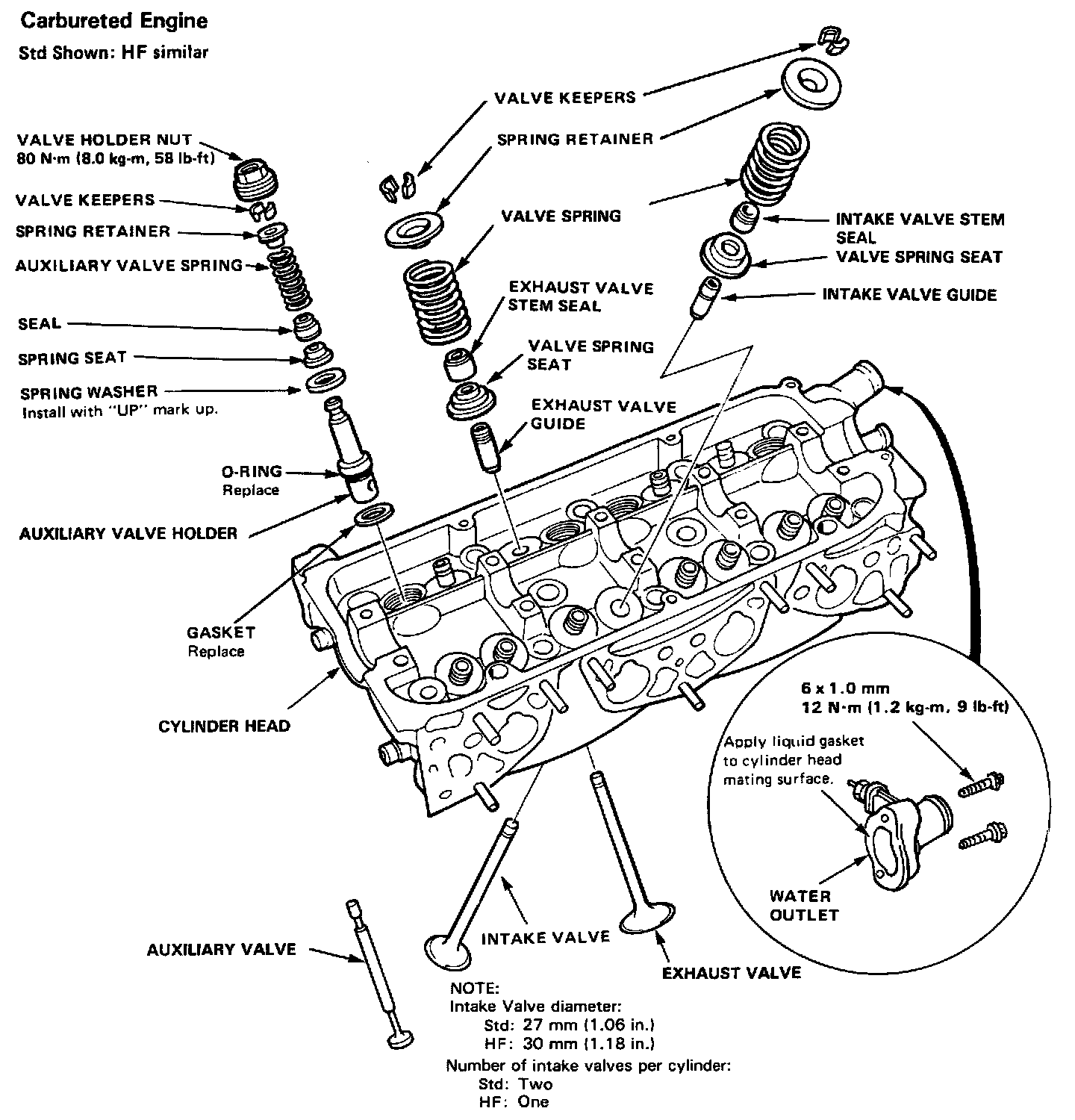

Valves, Guides And Springs - Carbureted Engine:

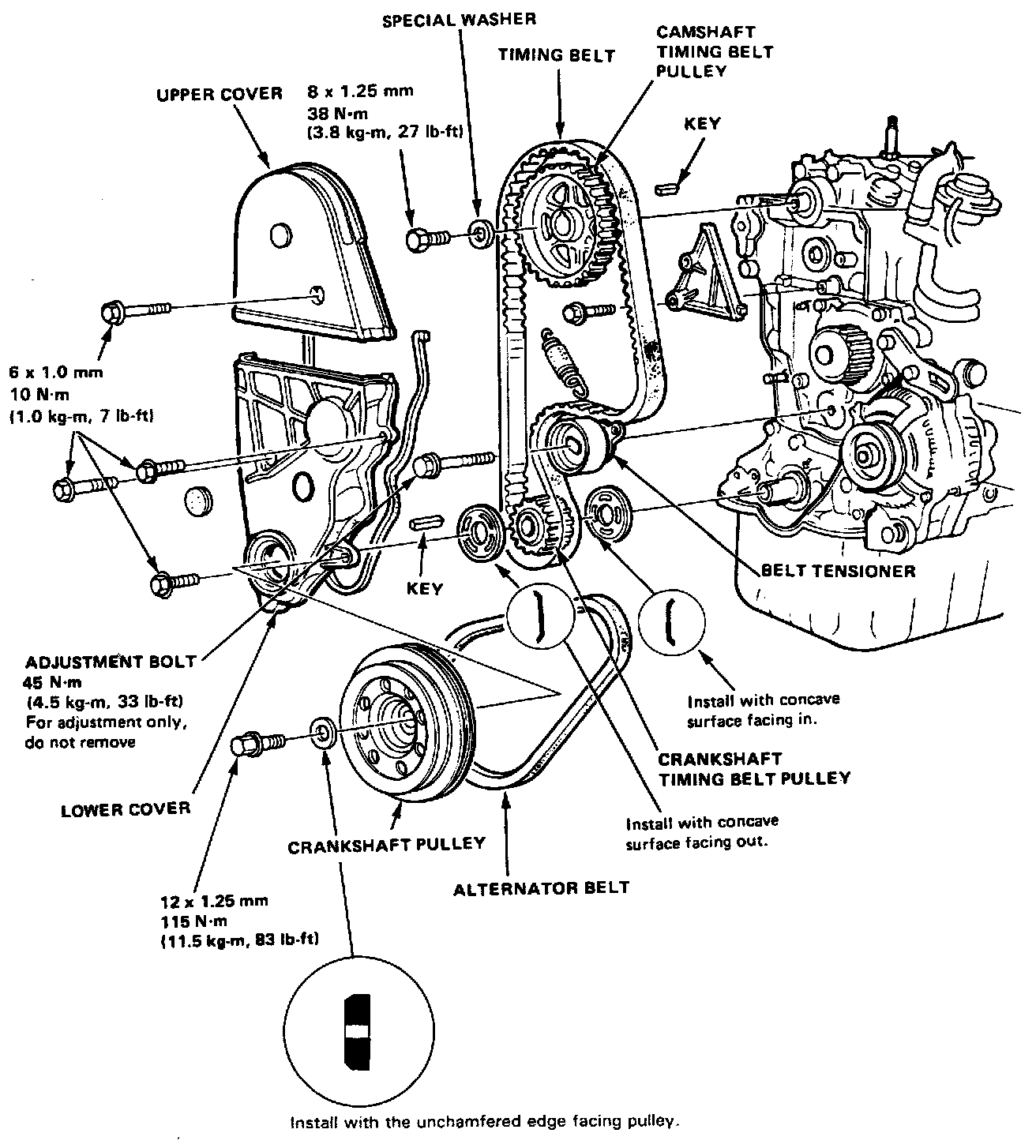

Timing Belt, Components And Covers:

Lower Engine:

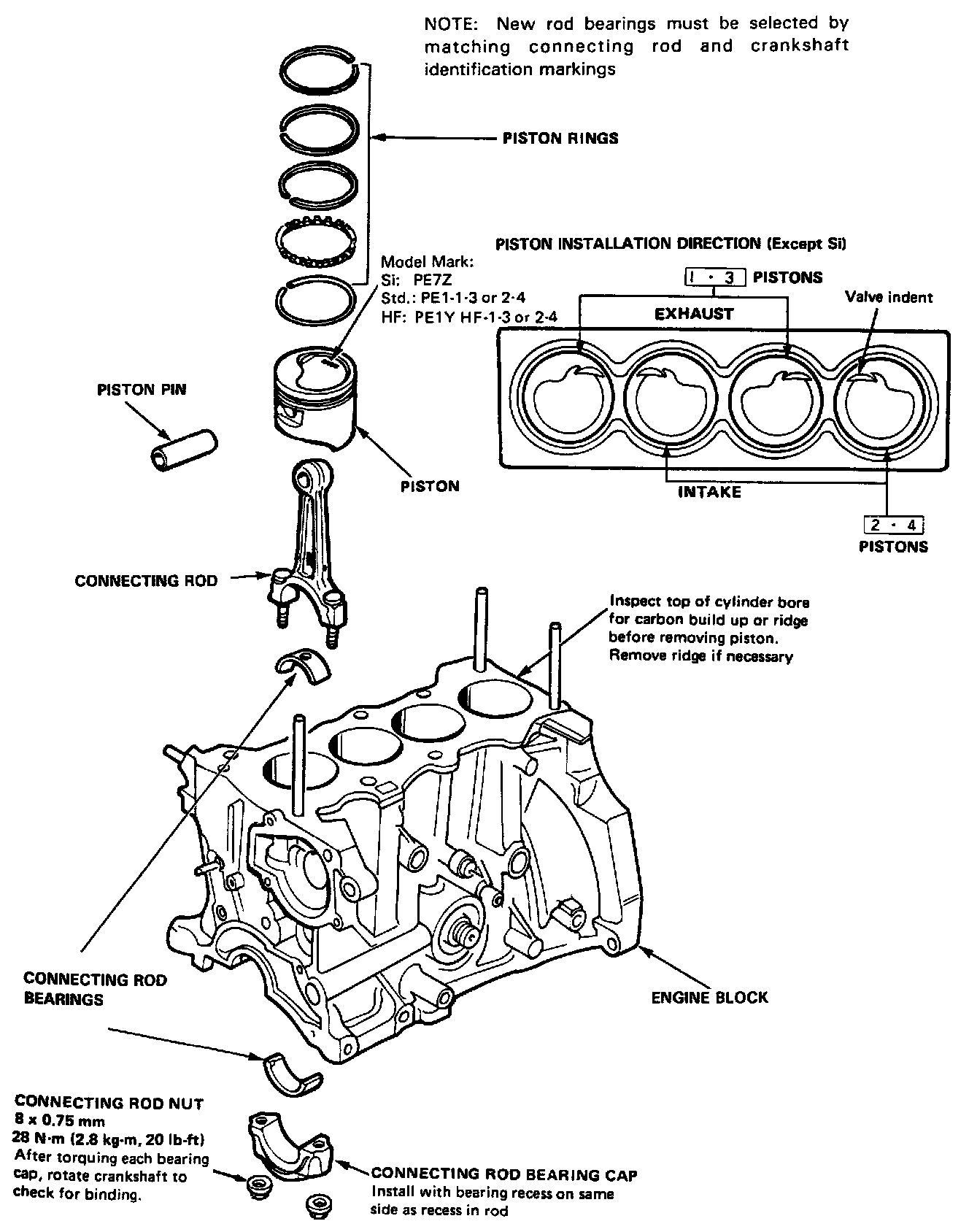

Piston And Connecting Rod:

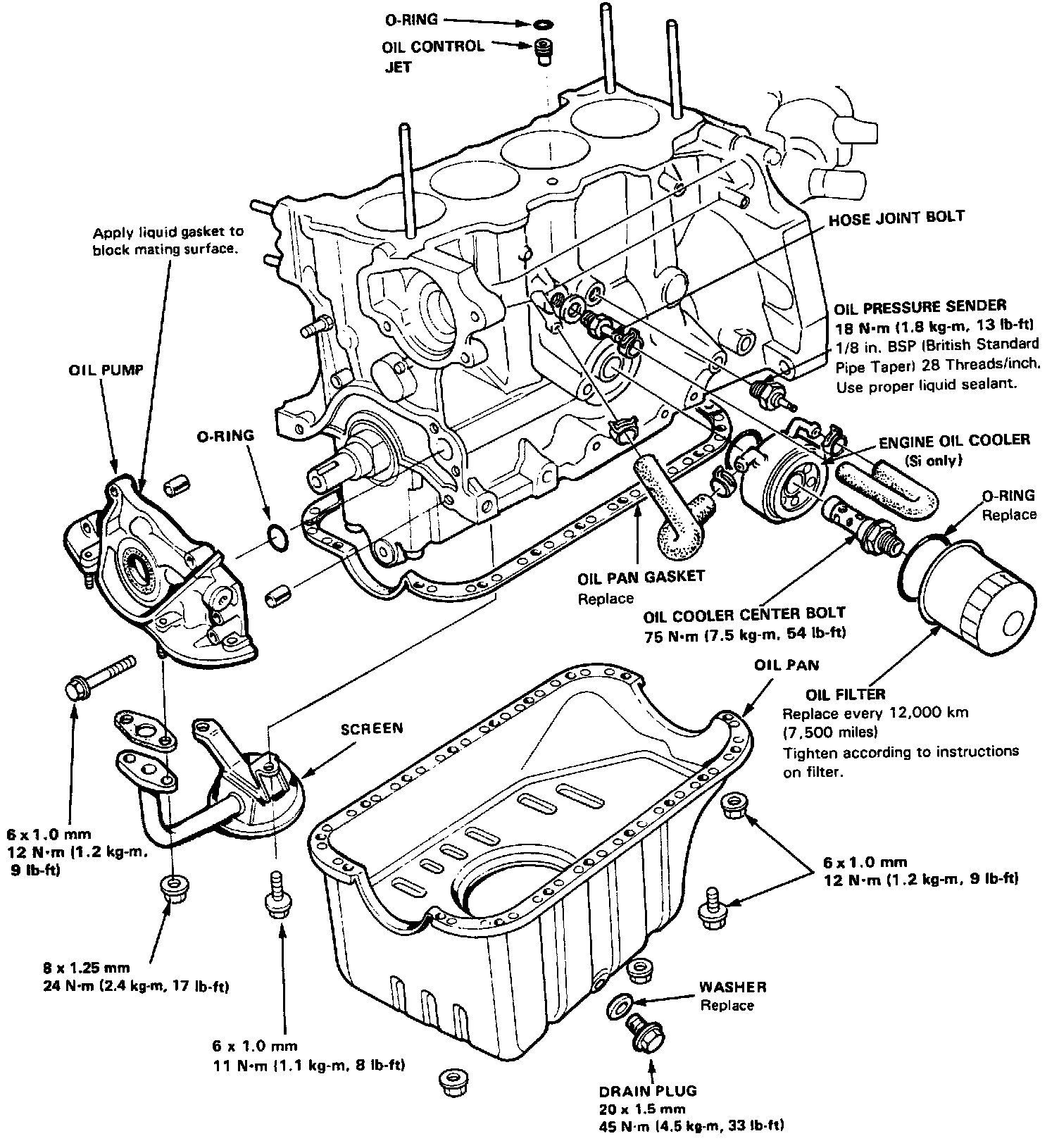

Oil Pan, Drain Plug, Oil Pressure Sender, Engine Oil Cooler And Oil Pump:

Oil Pump Components:

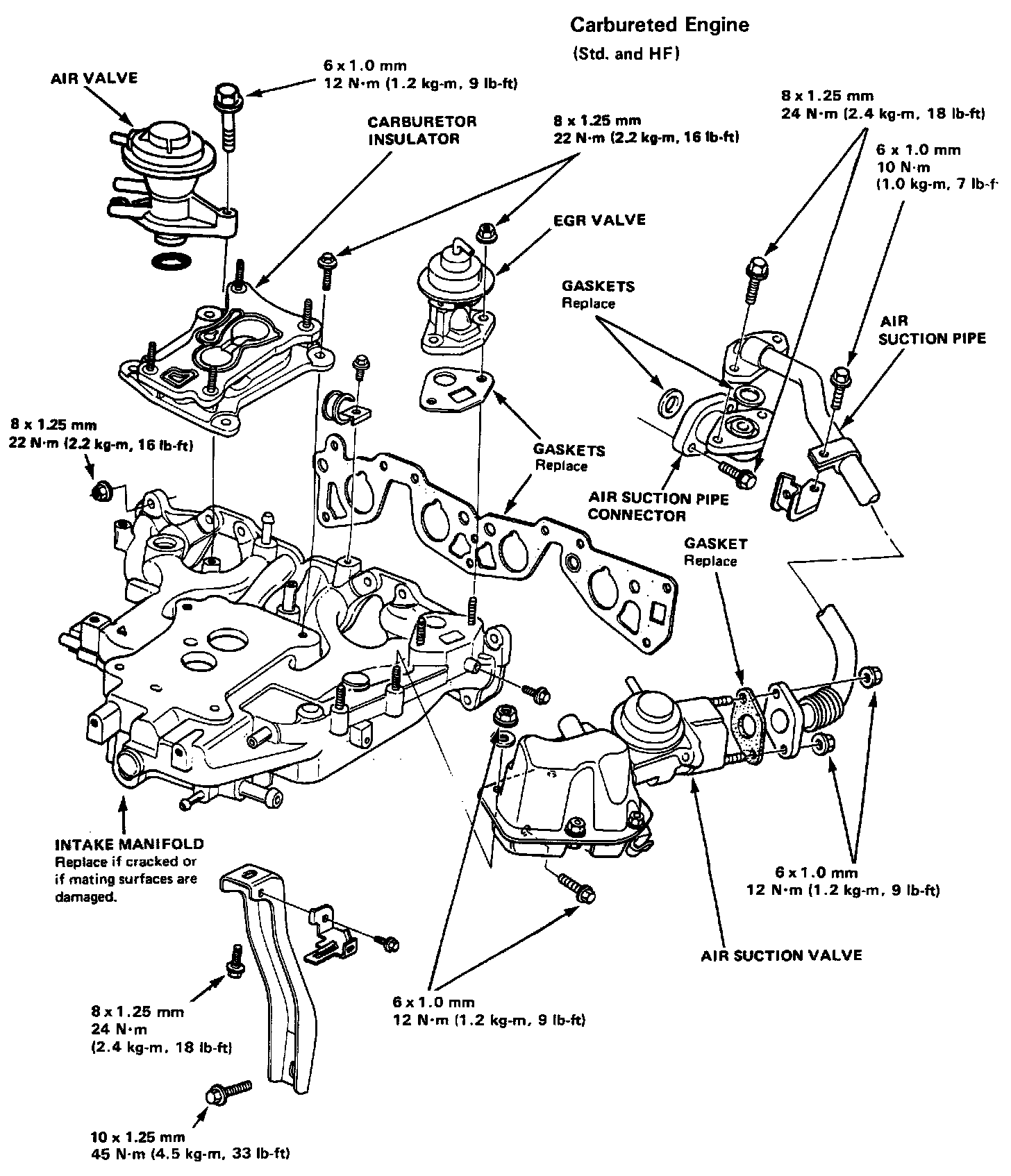

Intake Manifold - Carbureted Engine:

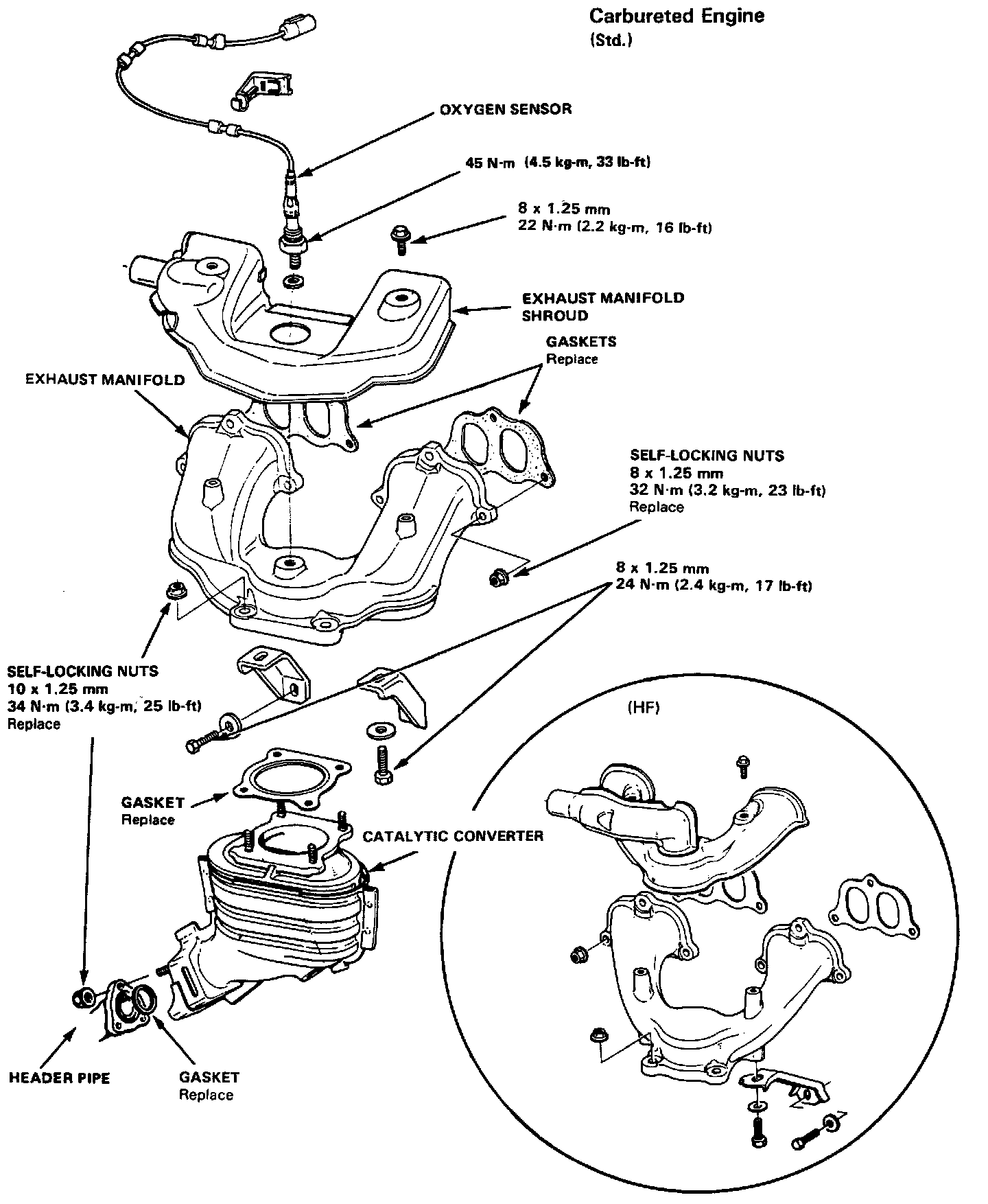

Exhaust Manifold - Carbureted Engine:
