Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1986
>>
CRX L4-1488cc 1.5L SOHC (EW1) 3V Carb
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Instrument Cluster / Carrier
>>
Nippon Denso Type
Nippon Denso Type

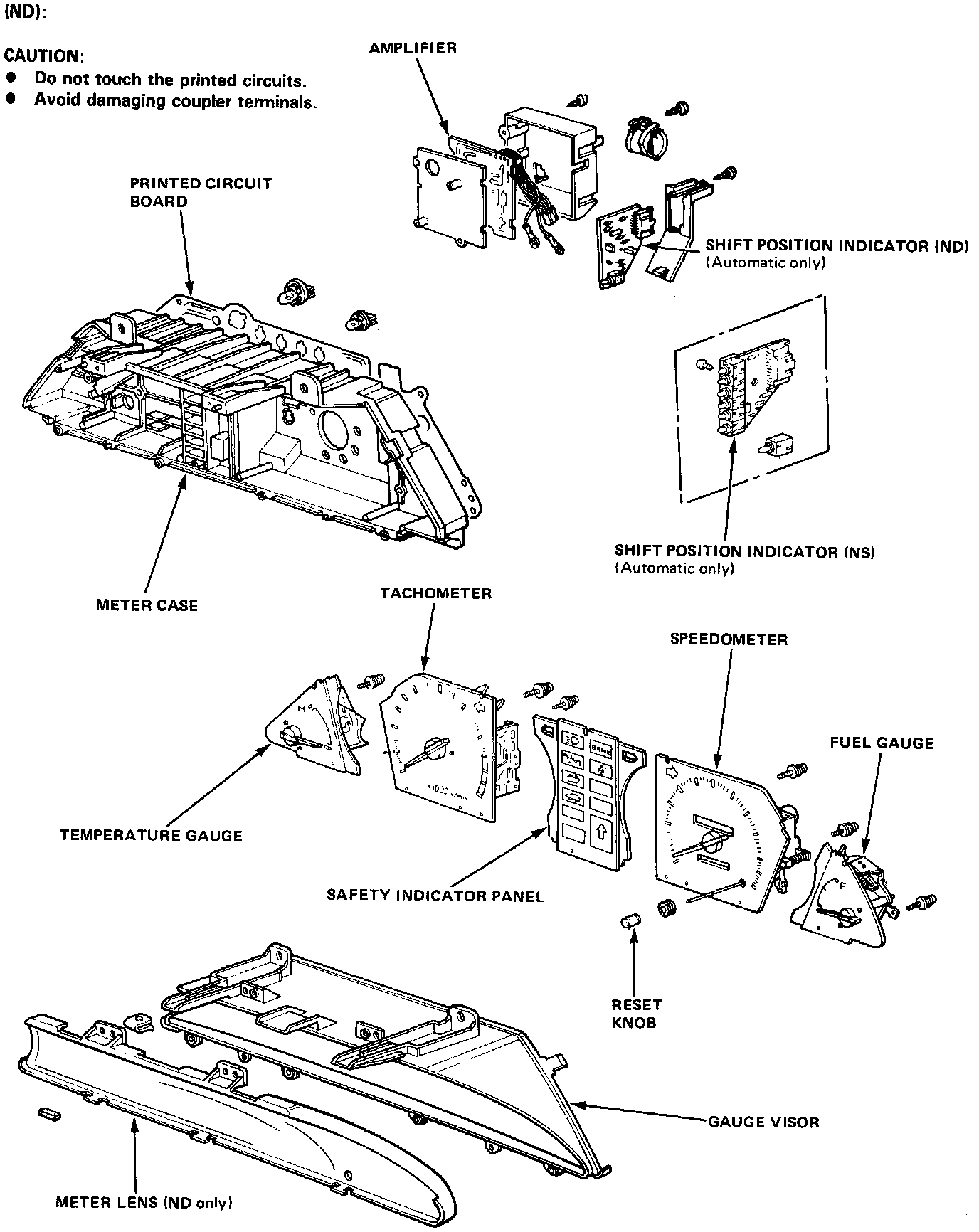

Instrument Cluster Exploded View:
