Instrument Cluster / Carrier: Service and Repair

REMOVAL

NOTE: SI model is shown; others are similar.

1. Remove the screws and clips, then remove the dashboard lower panel.
2. Remove the heater control knob and lower panel, remove the heater control mount screws.
3. Remove the upper screws.
4. Pull the instrument panel out, then disconnect the wire connecters.

Instrument Panel Removal:

5. Remove the instrument panel.
6. Remove the four screws, then lift the gauge assembly so you can reach the wire connectors.

CAUTION: Do not pull on the wires to disconnect connectors.

Instrument Panel Removal:

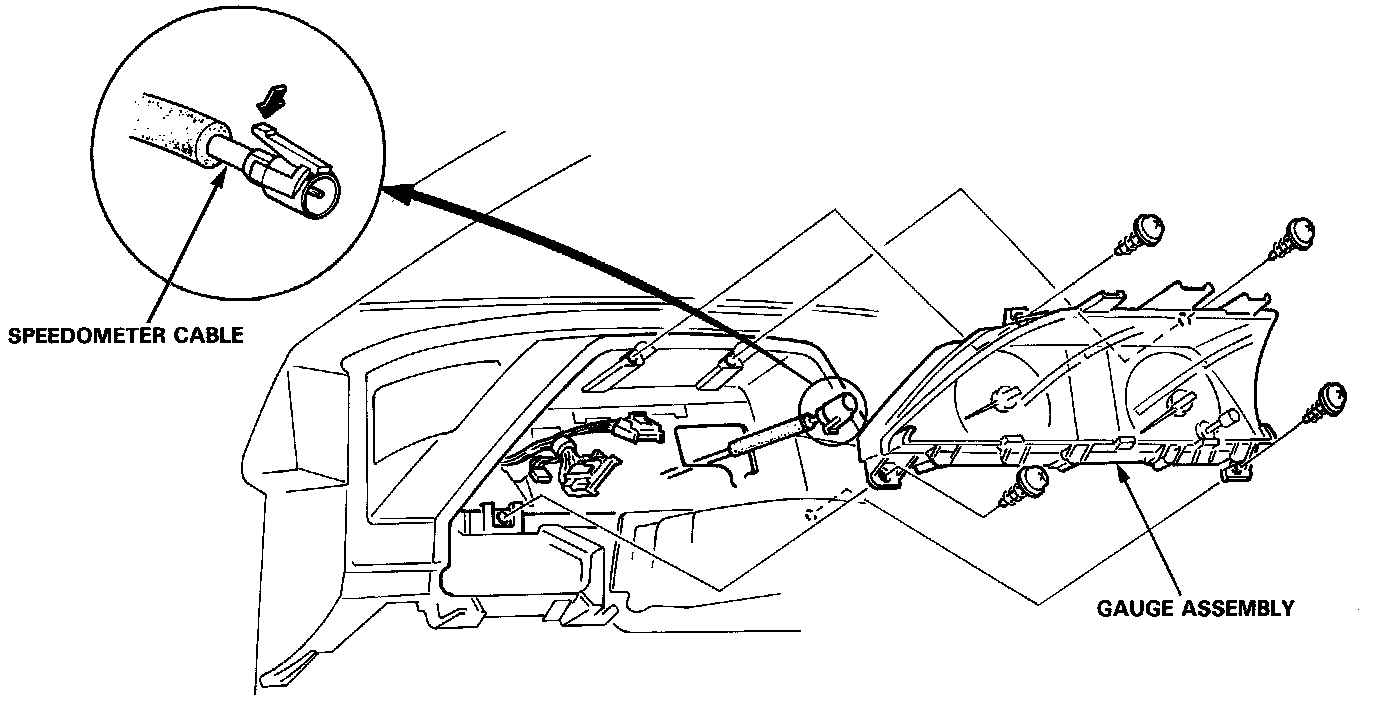

7. Disconnect the speedometer cable and wire connectors, then remove the gauge assembly.

To install, reverse order of removal.
