Honda
>>
1986
>>
CRX L4-1488cc 1.5L SOHC (EW1) 3V Carb
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Locations
>>
Engine Compartment Component Locations
Engine Compartment Component Locations

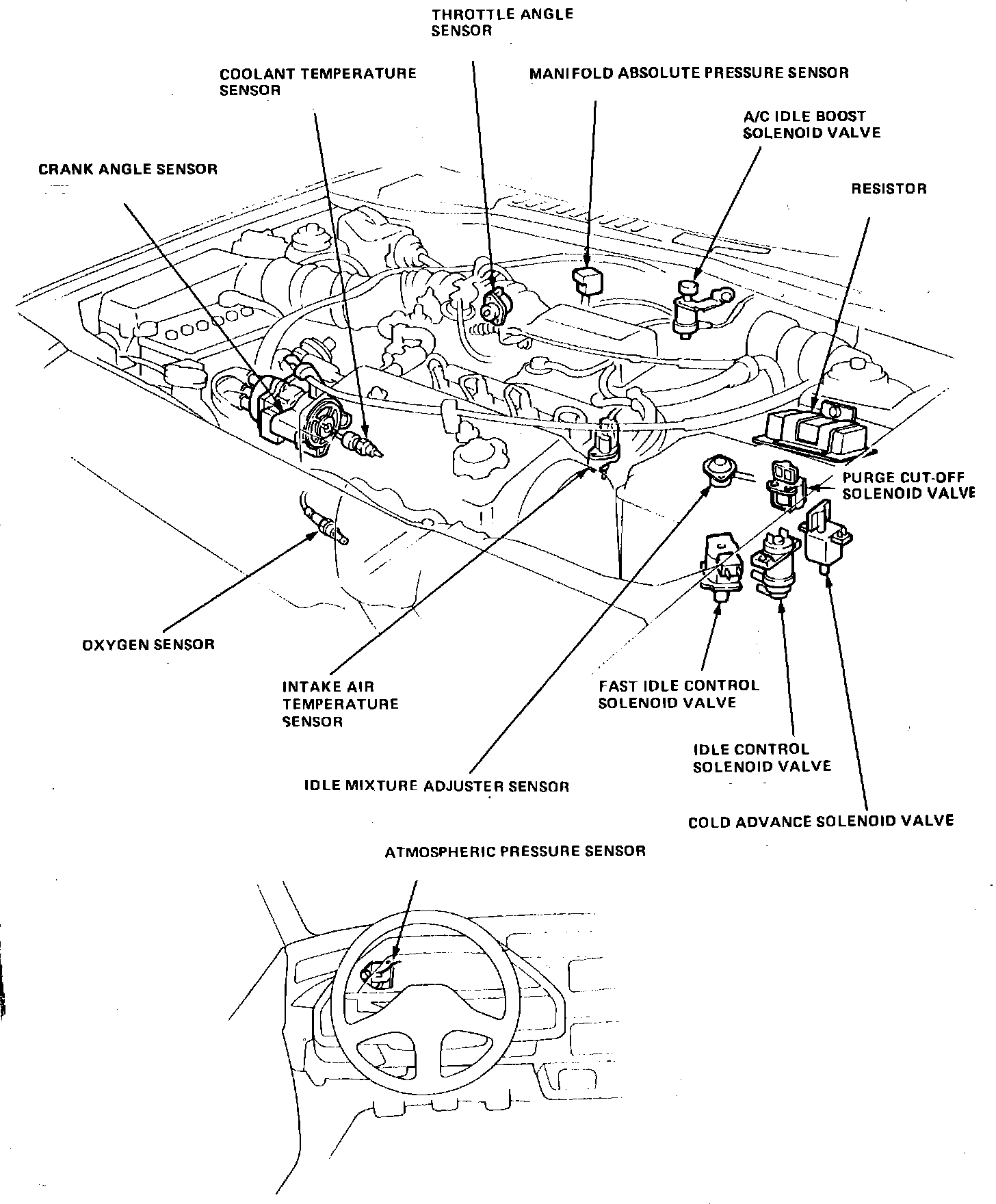

Fig. 373 Engine Compartment Component Locations:
