Vacuum Hose Routing Diagram (HF M/T, CA)
Vacuum Hose Routing Diagram (HF M/T, CA)

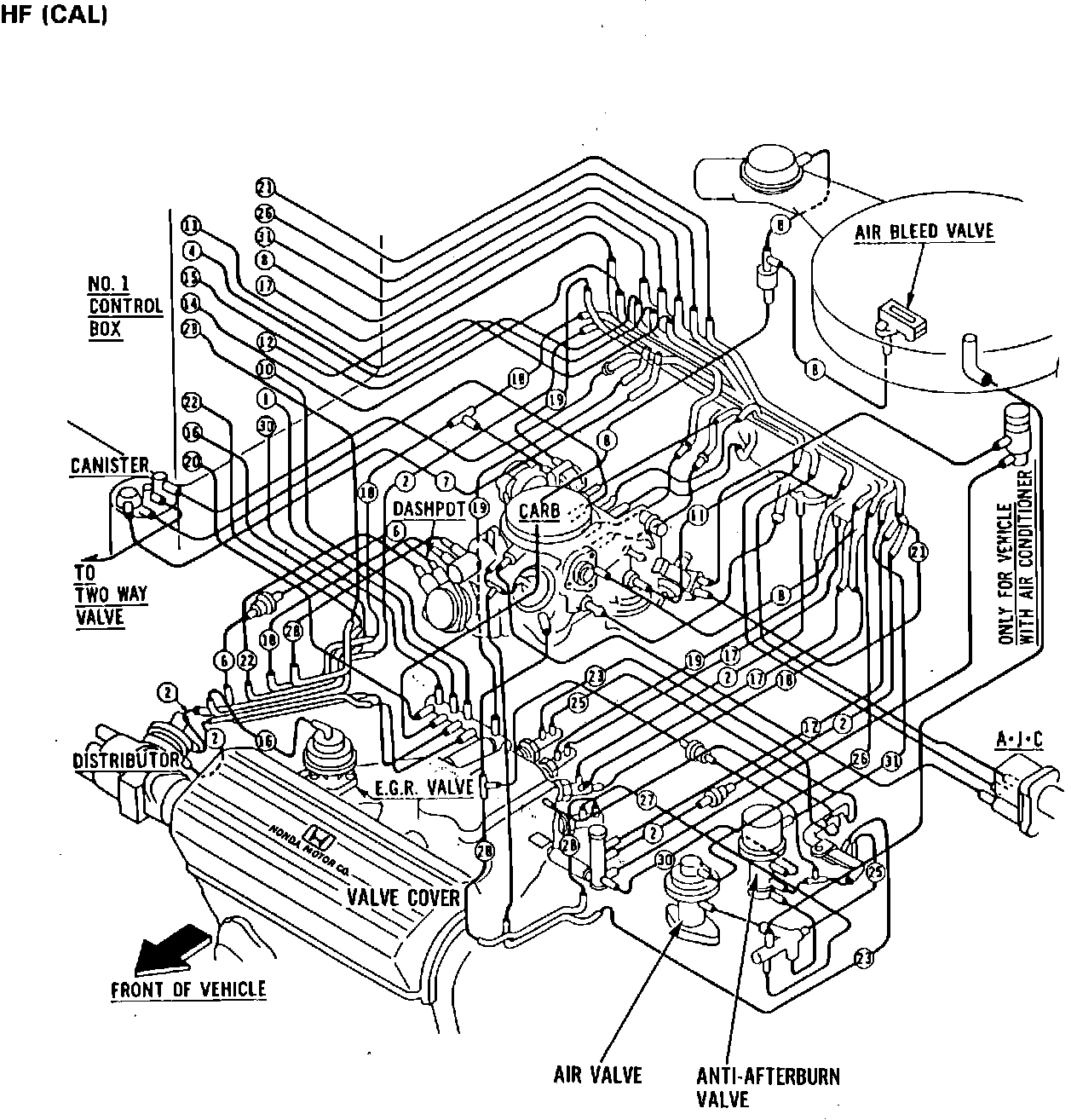

Fig. 345 Vacuum Hose Routing Diagram (HF M/T, CA):
