Vacuum and Electrical Connections Schematic (HF M/T, CA)

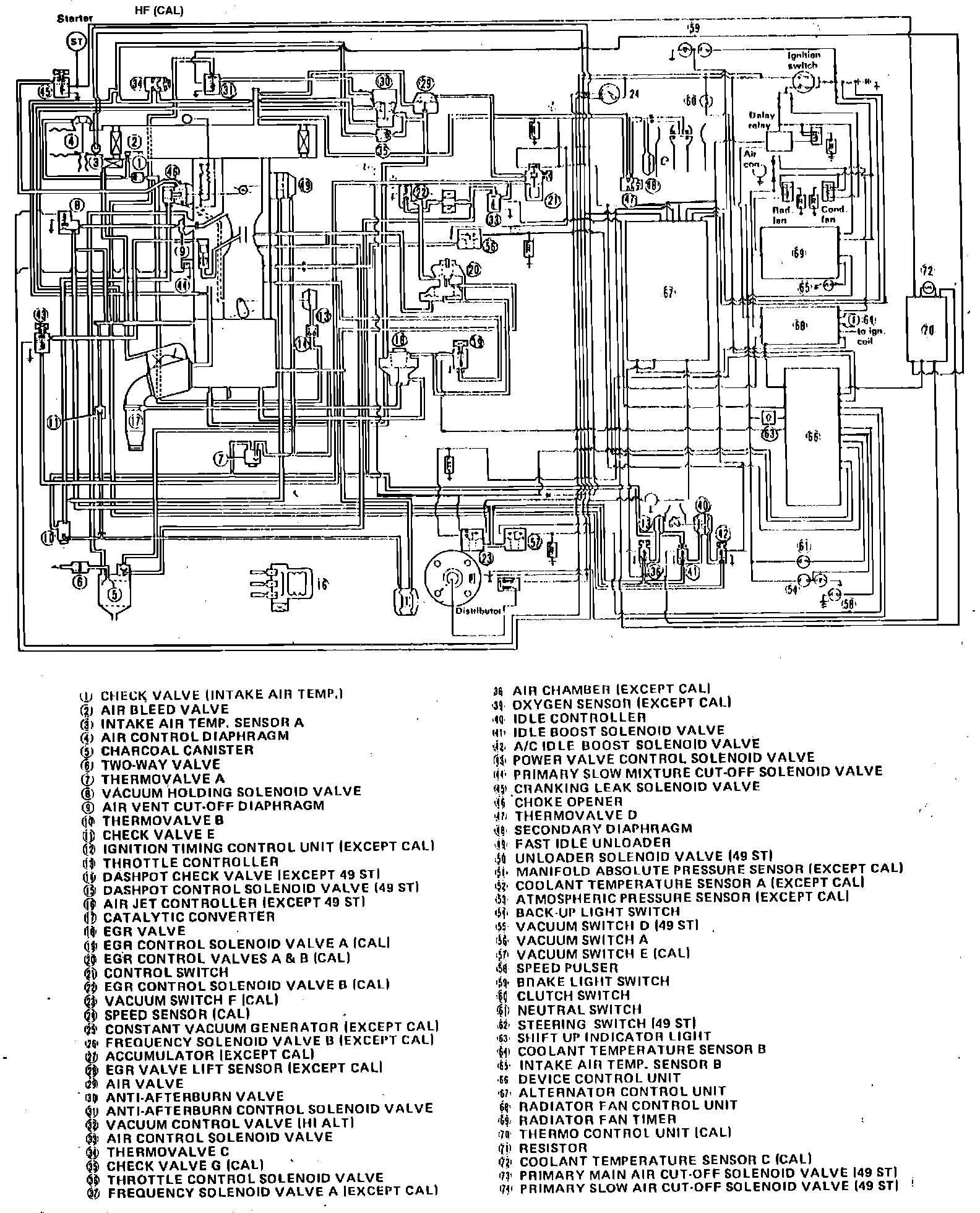

Fig. 356 Vacuum And Electrical Connections Schematic (HF M/T, CA):
