Control Box #1 & #2 Component Locations (HF M/T, Hi Alt)
Control Box #1 & #2 Component Locations (HF M/T, Hi Alt)

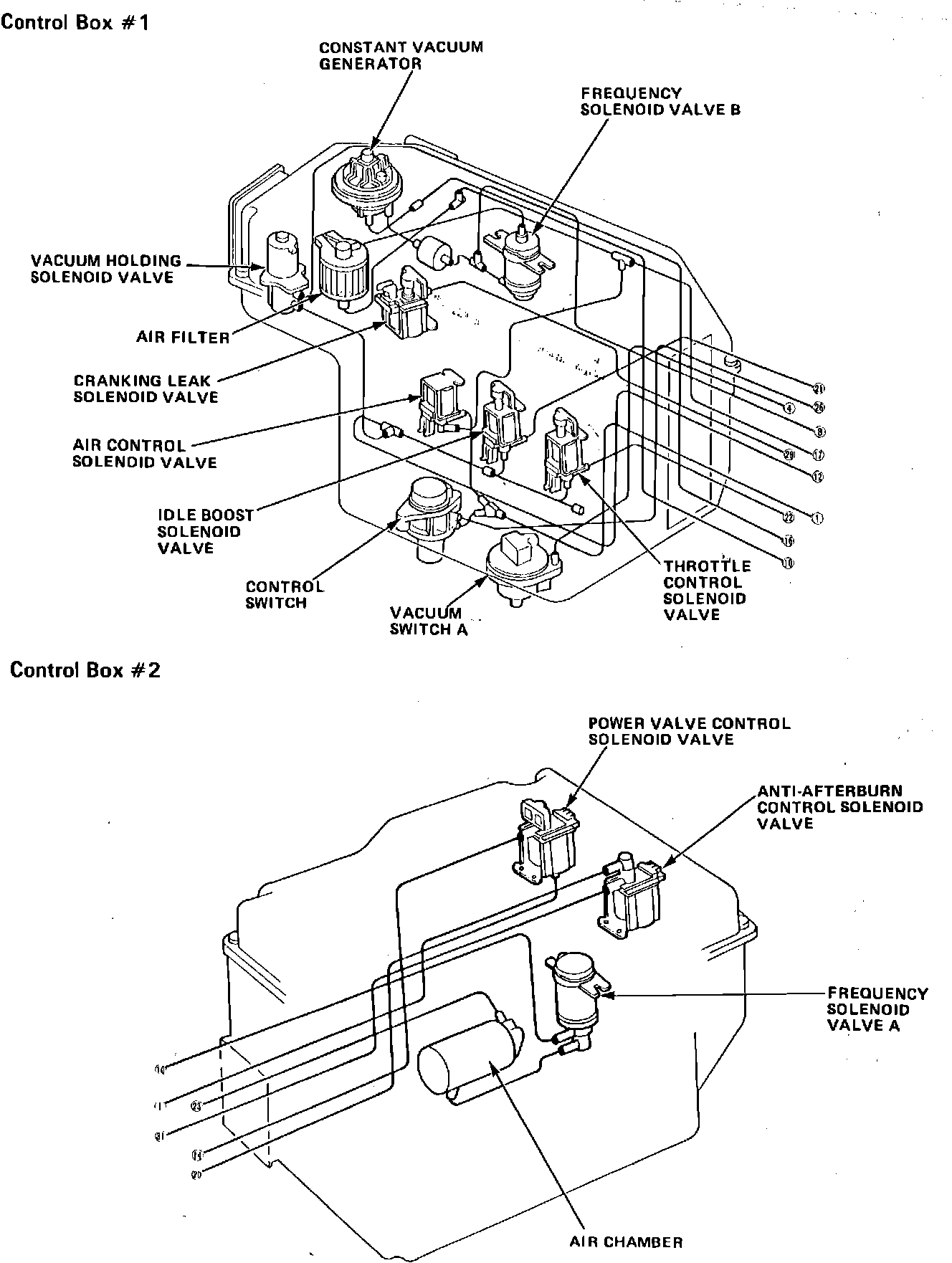

Fig. 348 Control Box #1 & Control Box #2:
