Operation CHARM
: Car repair manuals for everyone.
Home
>>
Honda
>>
1986
>>
CRX L4-1488cc 1.5L SOHC (EW3) MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Instrument Cluster / Carrier
>>
Nippon Seiki Type
Nippon Seiki Type

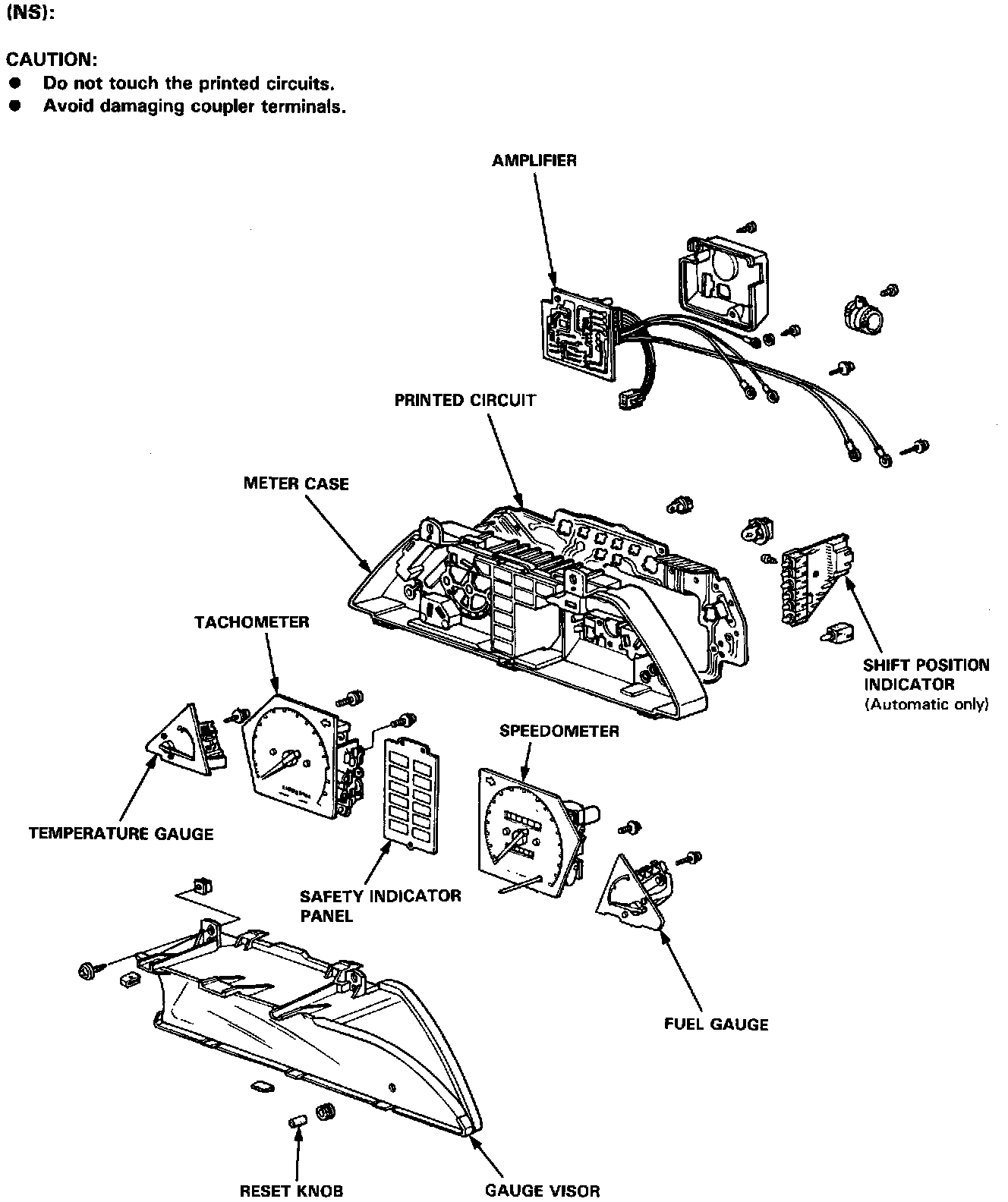

Instrument Cluster Exploded View:
