Blower Motor: Service and Repair

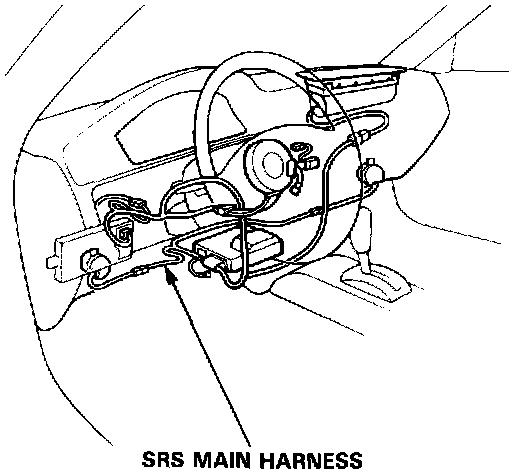

SRS Main Harness:

CAUTION: All SRS electrical wiring harnesses are covered with yellow outer insulation. Before disconnecting the SRS wire harness, install the short connector (5) on the airbag (5). Replace the entire affected SRS harness assembly it it has an open circuit or damaged wiring.


1. Disconnect the battery negative terminal.

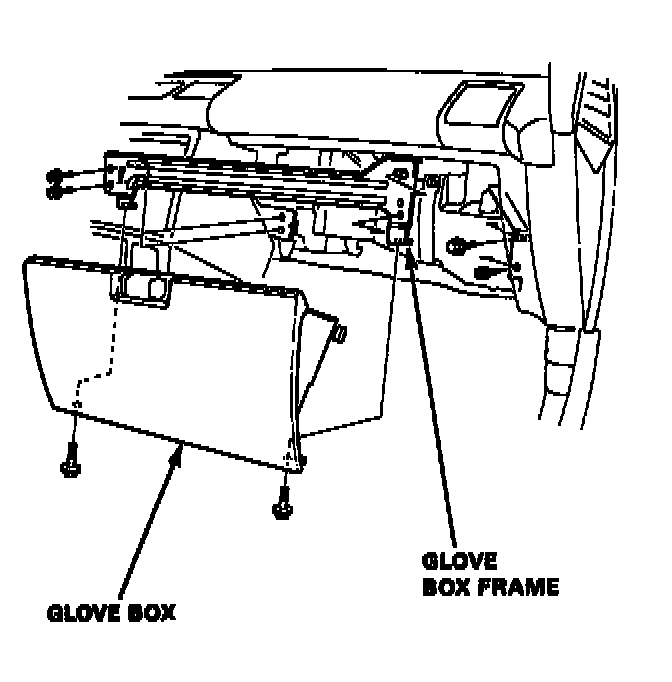

2. Remove the glove box and glove box frame.

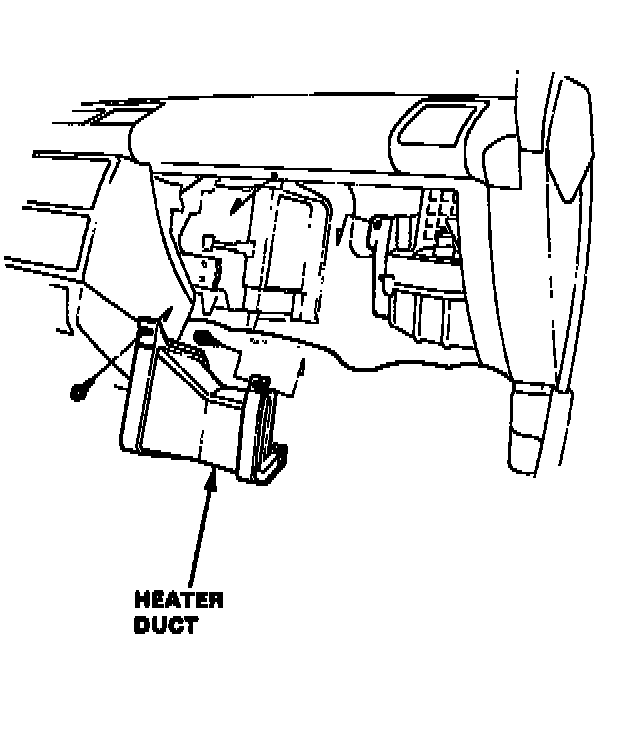

3. Remove the tapping screws (2) and remove the heater duct.

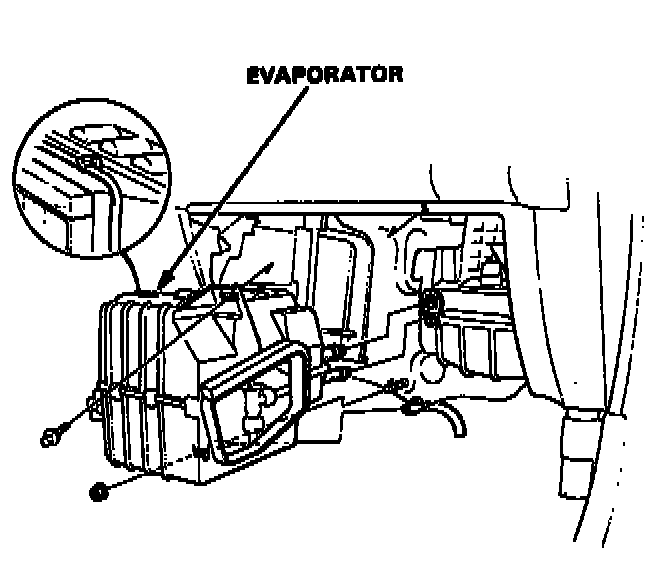

4. Remove the A/C band and the evaporator.

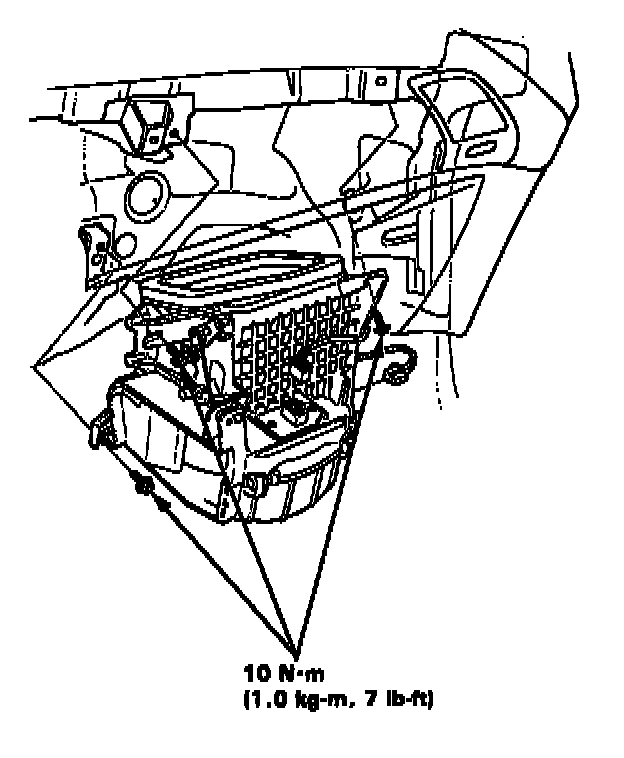

5. Remove the mounting bolts (3).

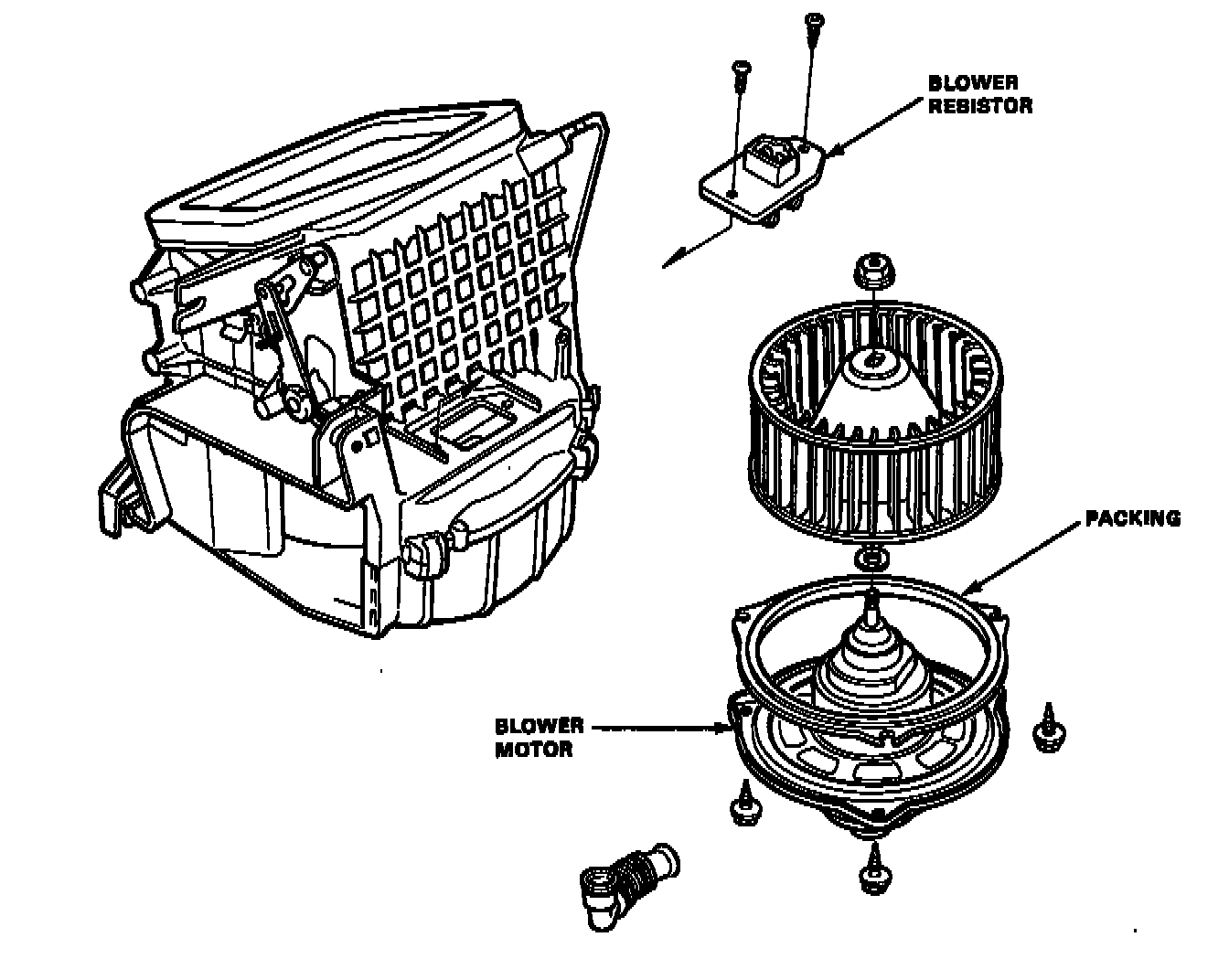

6. Disconnect the connectors from the blower motor. resistor then remove the blower.
7. Install the blower in the reverse order of removal and make sure there is no air leakage.

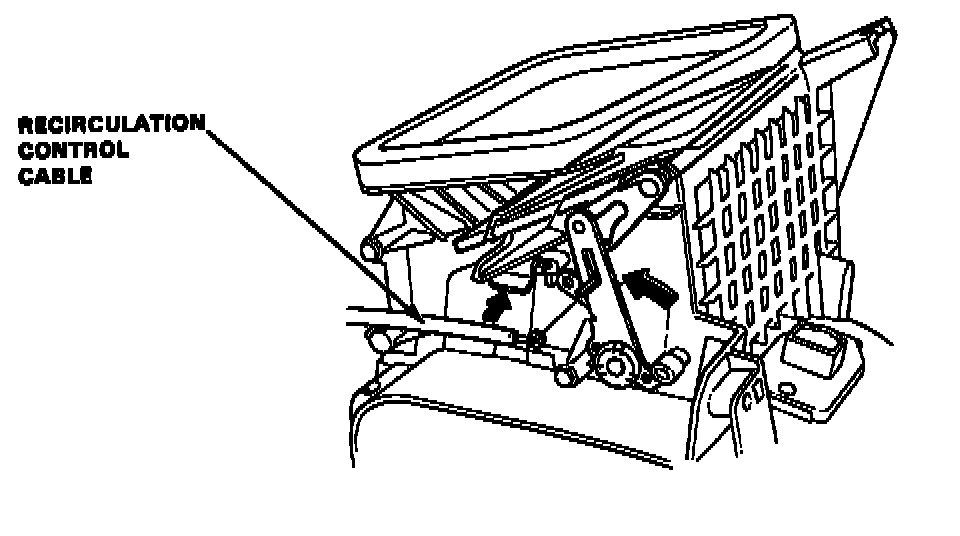

NOTE: Before assembly make cure that the air door and linkage moves smoothly without binding.
