Control Box #1 Component Locations ( M/T, Hi Alt)
Control Box #1 Component Locations ( M/T, Hi Alt)

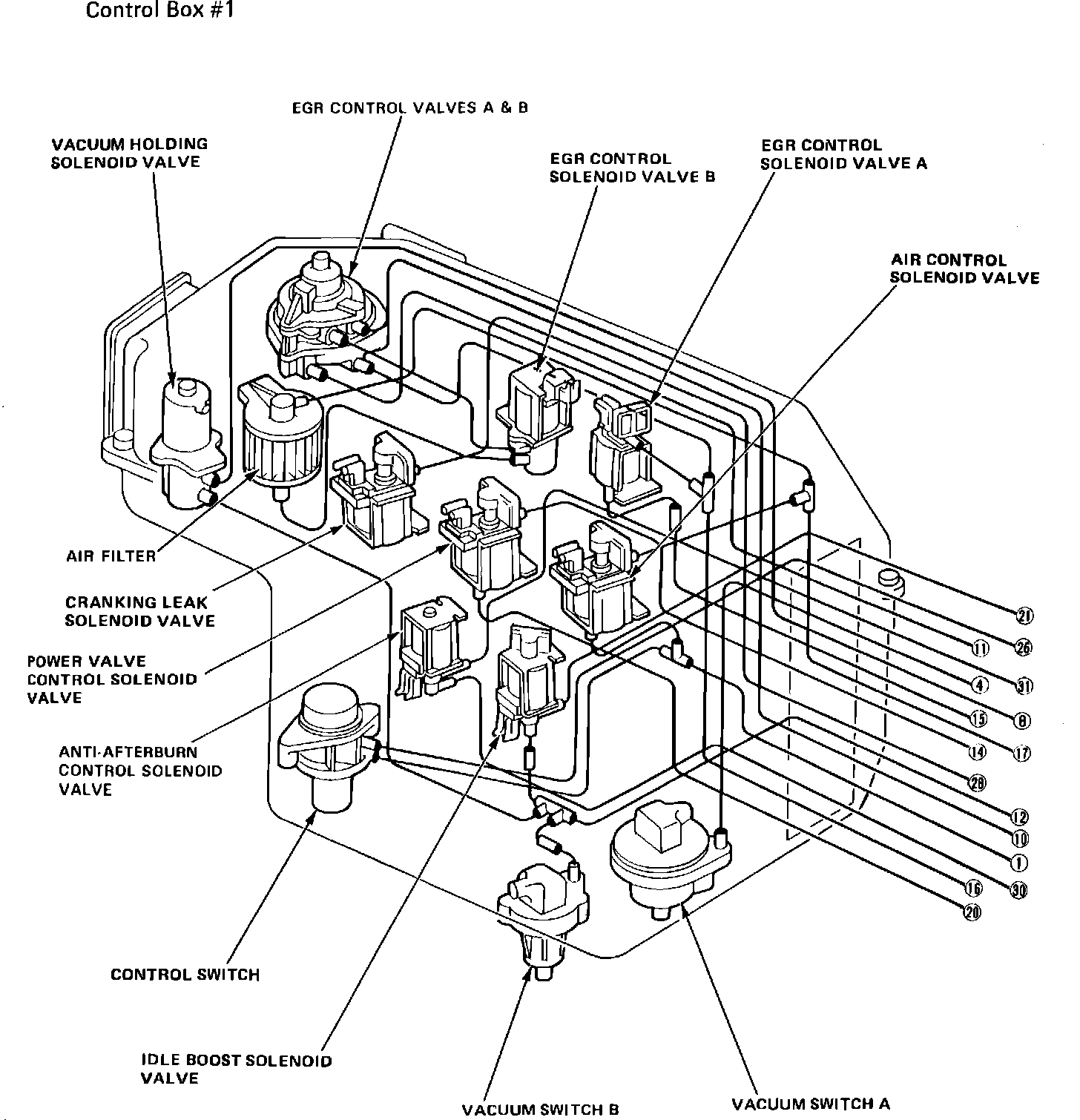

Fig. 535 Control Box #1 ( M/T, HI ALT):
