Engine Control Module
Engine Control Module
Control Unit Terminal Pin ID Locations ( M/T):

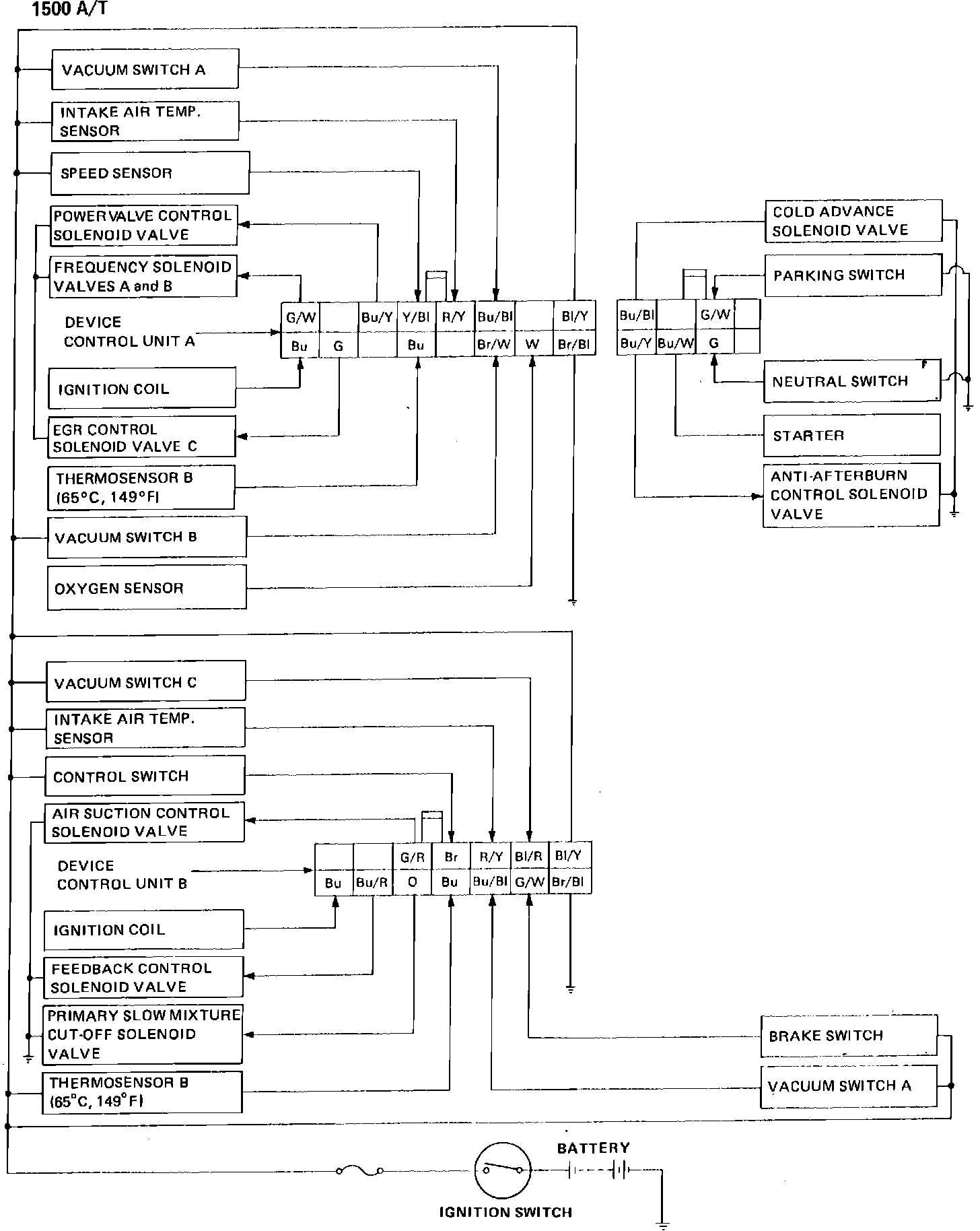

Fig. 560 Control Unit Terminal Pin ID Locations (A/T):
