Torque Specifications

Intake Manifold And Attached Components:

Intake Manifold And Attached Components:

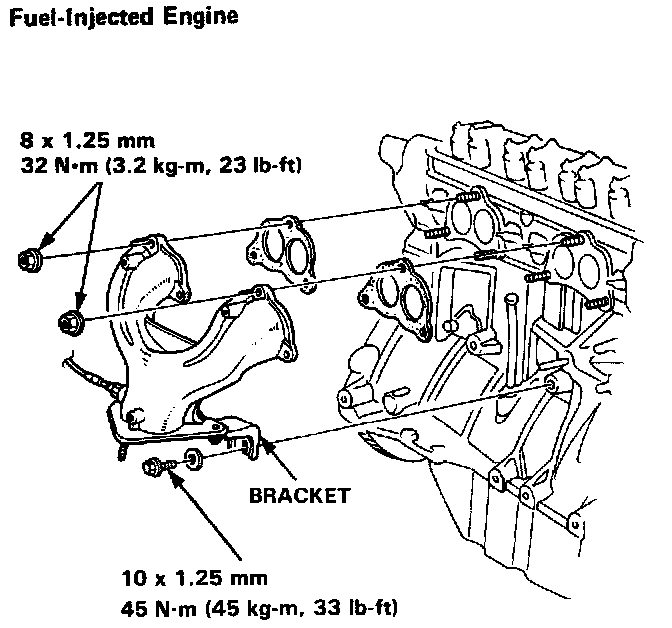

Exhaust Manifold And Attached Components:

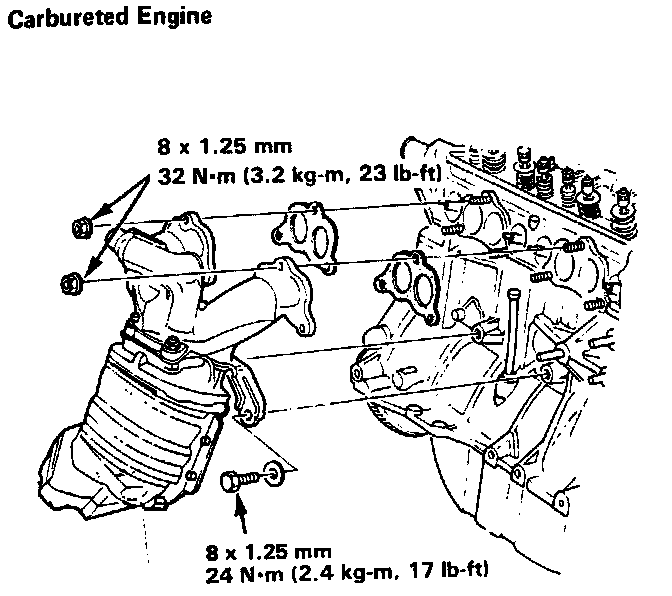

Exhaust Manifold And Attached Components:

Cylinder Head Assembly And Cover:

Cylinder Head Assembly And Cover:

Camshaft, Rockers, Distributor And Fuel Pump:

Valves, Guides And Springs, Auxiliary Valve Components:

Valves, Guides And Springs:

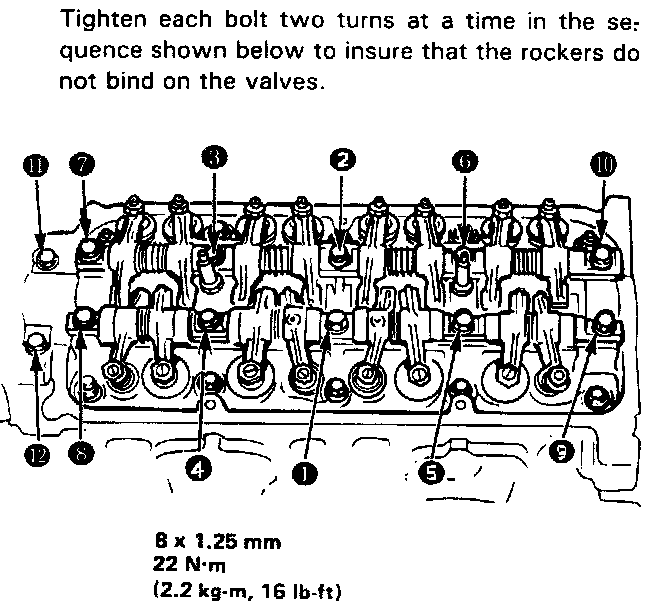

Rocker Arm Installation:

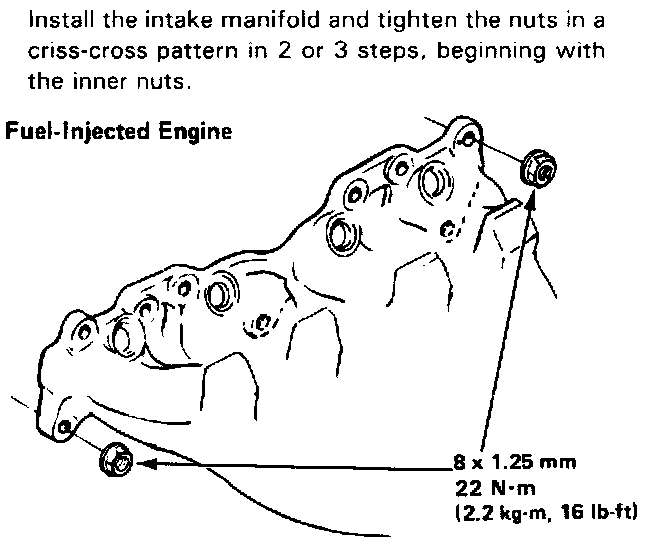

Intake Manifold Tightening Sequence:

Intake Manifold Tightening Sequence:

Exhaust Manifold Tightening Sequence:

Exhaust Manifold Tightening Sequence:

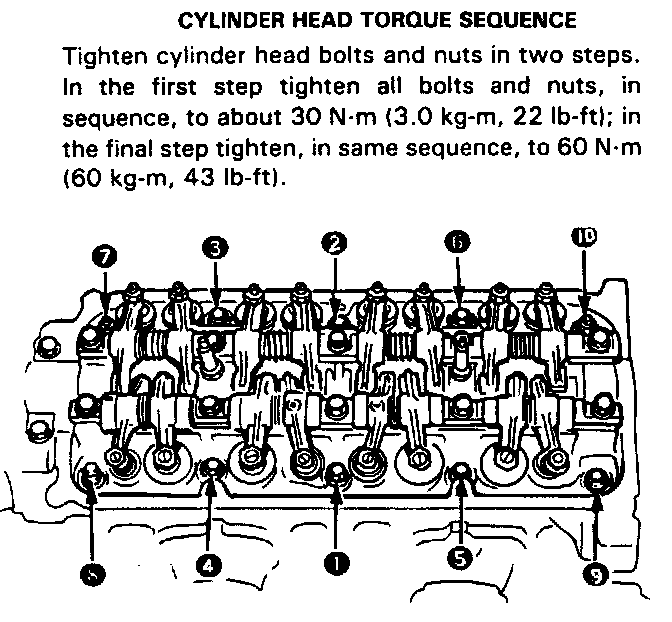

Cylinder Head Tightening Sequence:

Tighten cylinder head bolts in two steps:

1st step: Tighten all bolts, in sequence, to 30 N.m (22 lb-ft.)
2nd step: Tighten all bolts to 60 N.m (43 lb-ft).

Valve Cover Tightening Sequence:

Timing Belt, Components And Covers:

Crankshaft, Main Bearing Caps And Flywheel/Flex Plate:

Piston And Connecting Rod:

Oil Pan, Drain Plug, Oil Pressure Sender, Engine Oil Cooler And Oil Pump:

Oil Pump Components:

Flywheel Tightening Sequence - M/T:

Flexplate Tightening Sequence - A/T:
