Vacuum & Electrical Connections Schematic (M/T, Federal/Hi Alt)

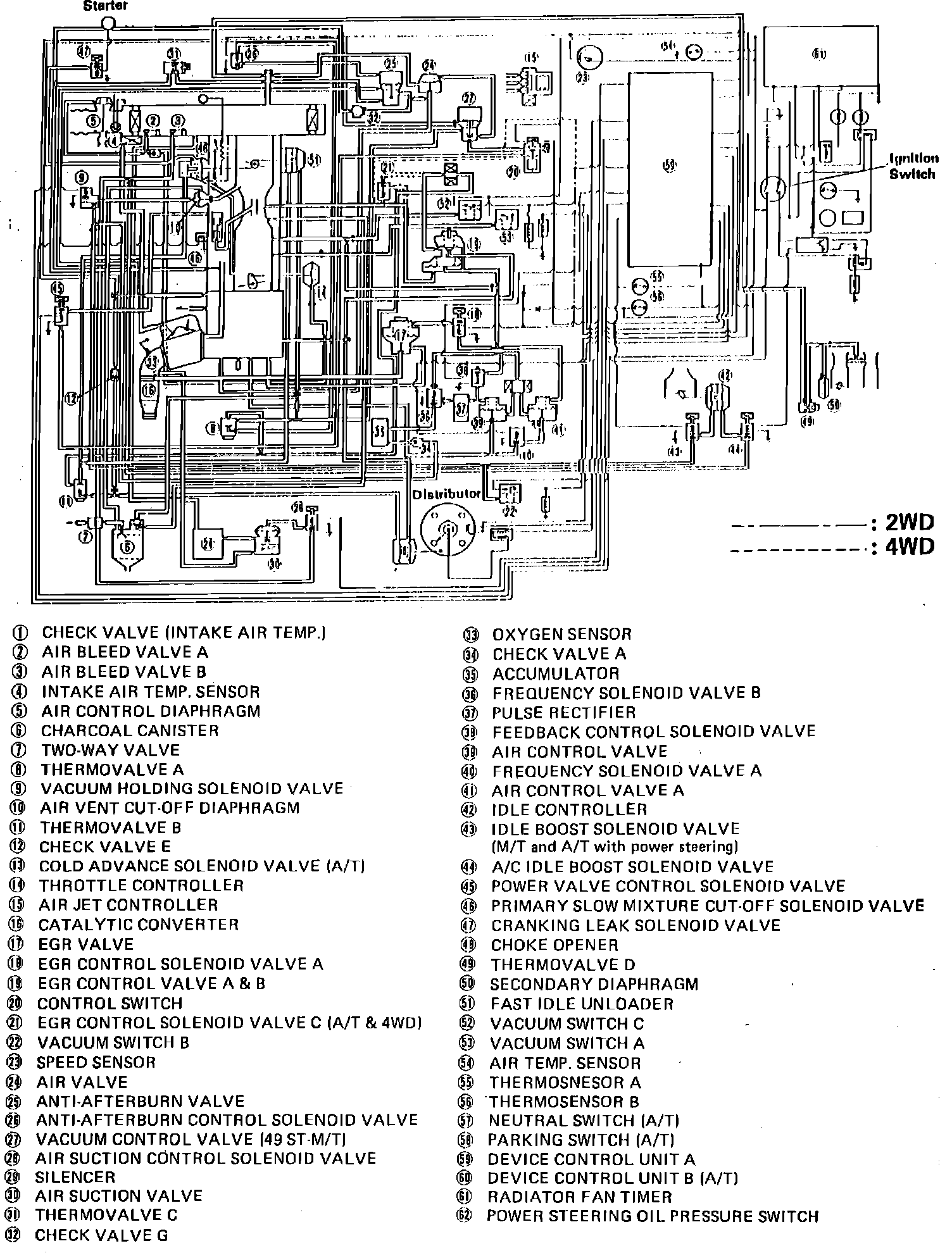

Fig. 550 Vacuum And Electrical Connections Schematic (M/T, FEDERAL/HI ALT):

Fig. 551 Vacuum And Electrical Connections Schematic (M/T, CA):

Fig. 552 Vacuum And Electrical Connections Schematic ( A/T):
