Vacuum and Electrical Connections Schematic (Fuel)
Vacuum and Electrical Connections Schematic (Fuel)

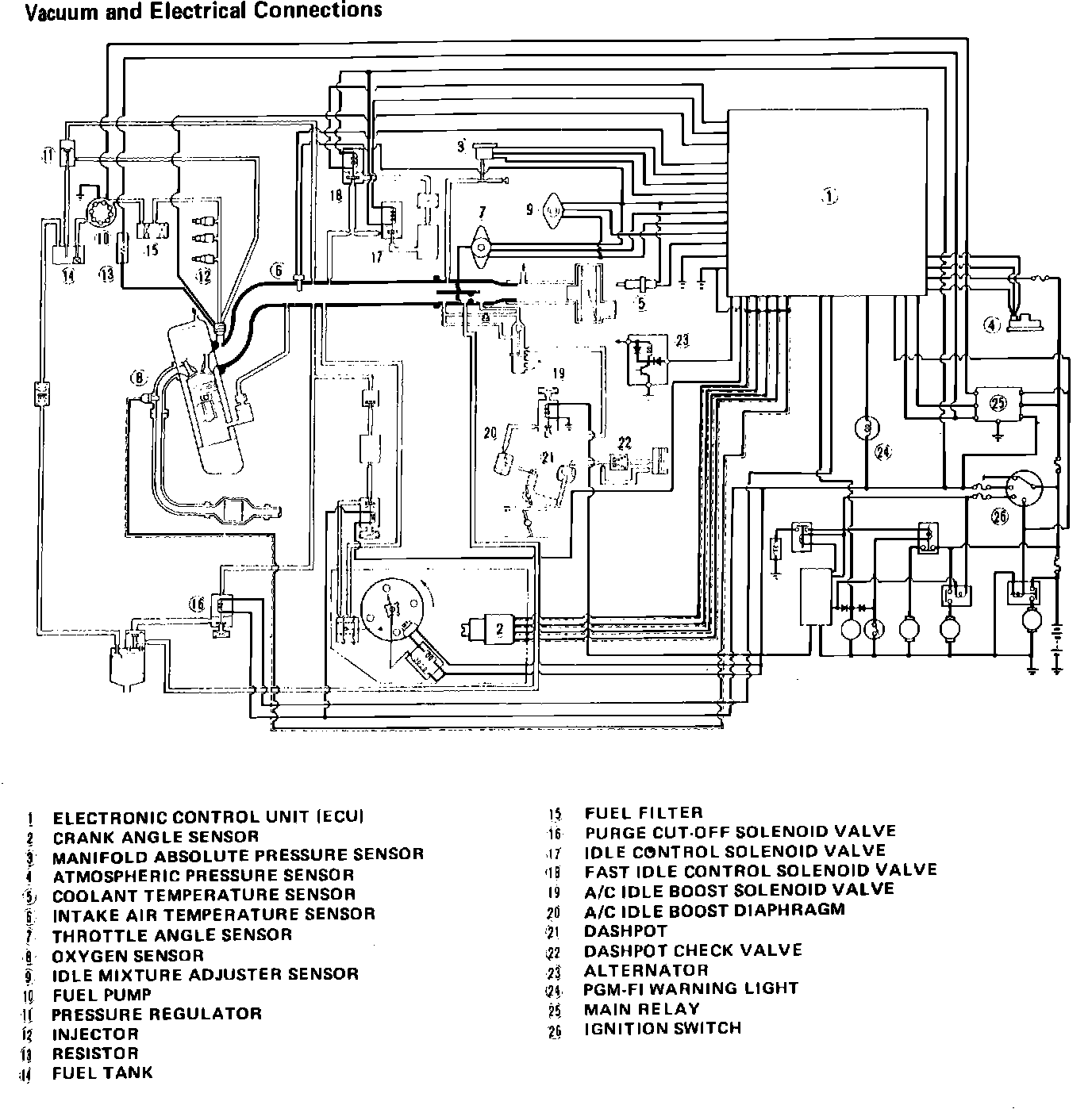

Fig. 564 Vacuum And Electrical Connections Schematic (Fuel):
