Control Box #1 & #2 Component Locations ( W/Power Steering A/T)
Control Box #1 & #2 Component Locations ( W/Power Steering A/T)

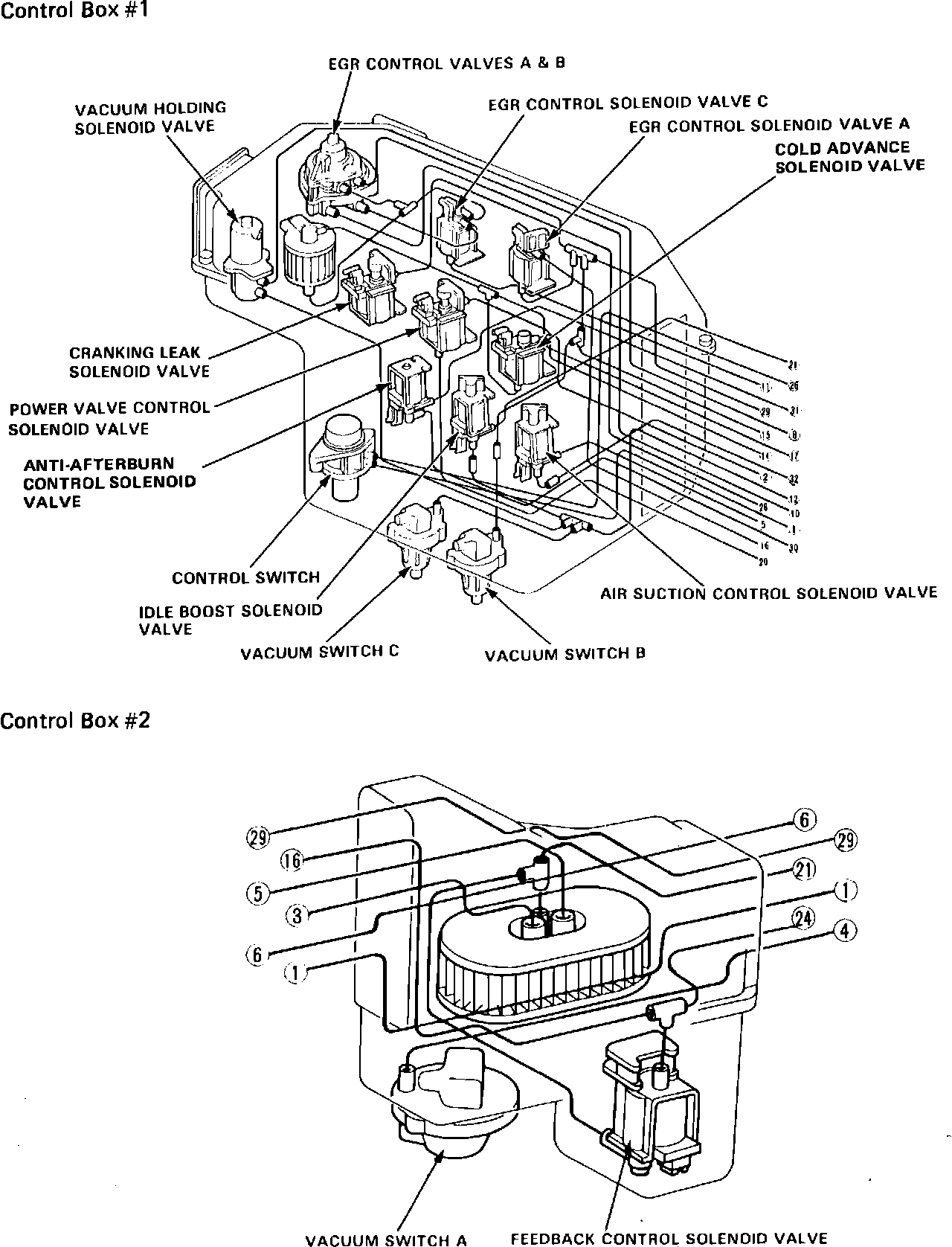

Fig. 547 Control Box #1 & #2 ( W/POWER STEERING A/T):
