Civic Sedan L4-1488cc 1.5L SOHC (EW1) 3V Carb
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Complete Body & Chassis Wiring Circuit
>>
Hatchback & Sedan
Hatchback & Sedan

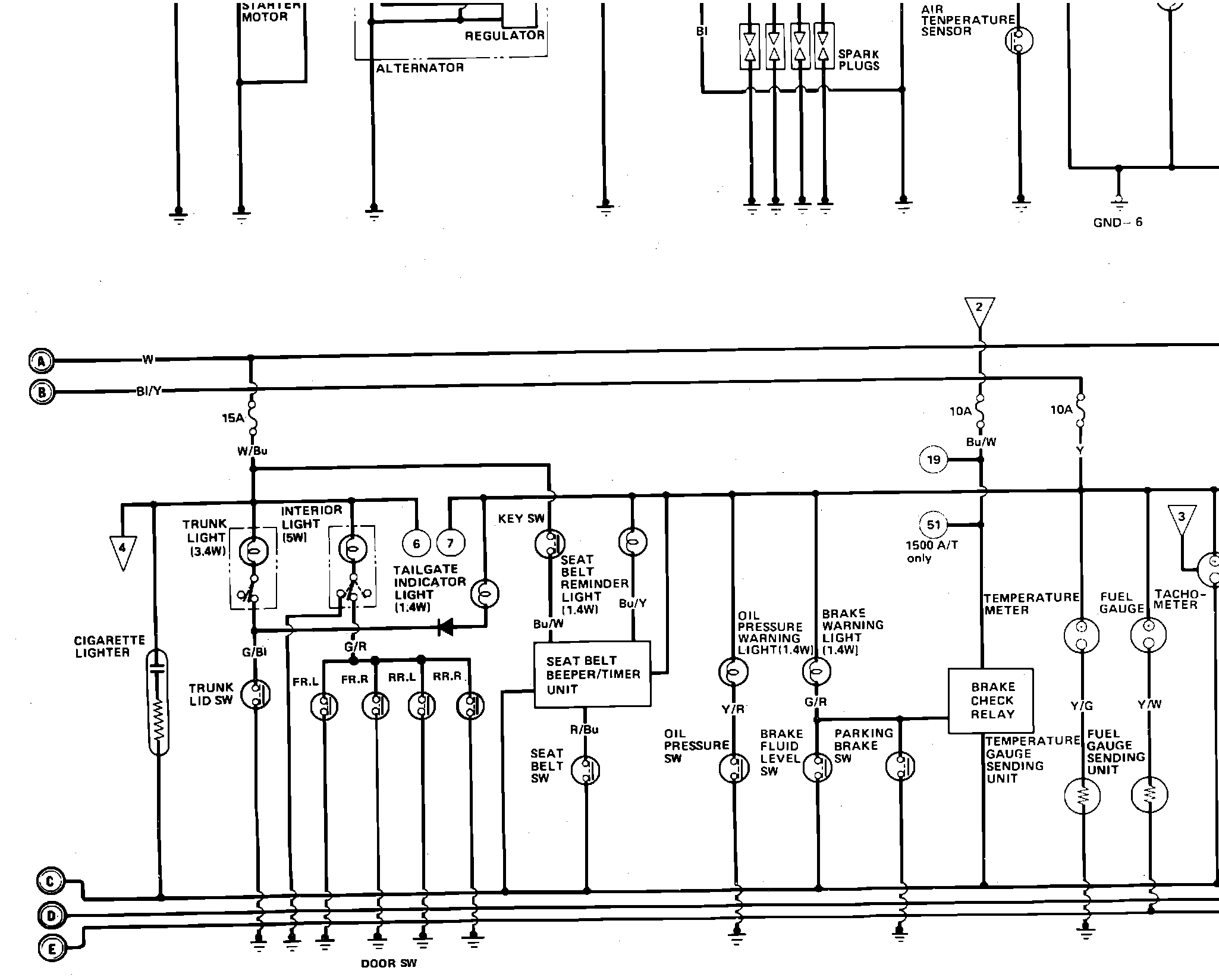

_kc��kc��kc<�kcO�kcComplete Body & Chassis Wiring Circuit:
