Carbureted Engine

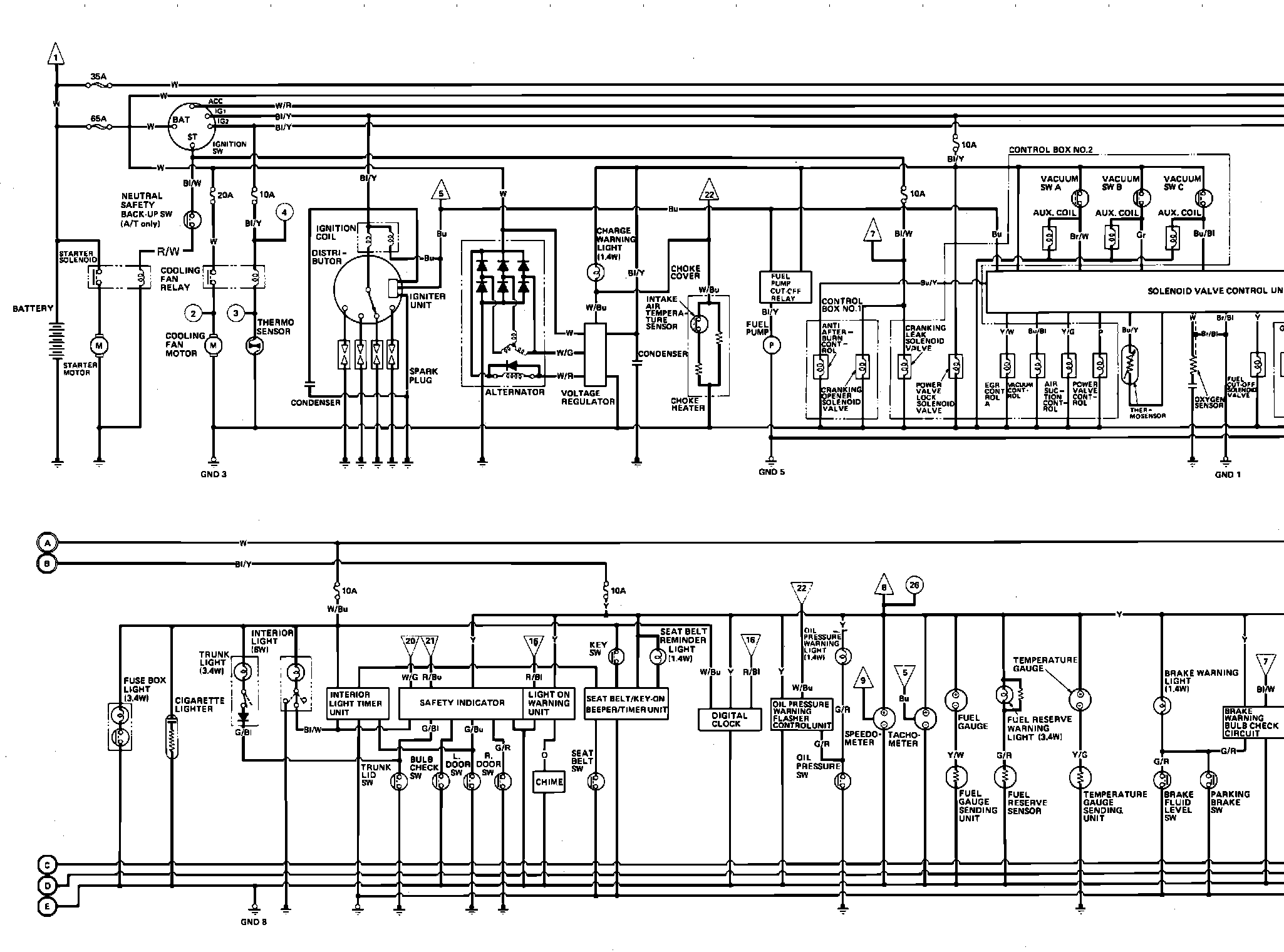

�fcgcFig. 94c Complete Body & Chassis Wiring Circuit. W/Carbureted Engine (Part 3 of 3):
