Fuel Injected Engine

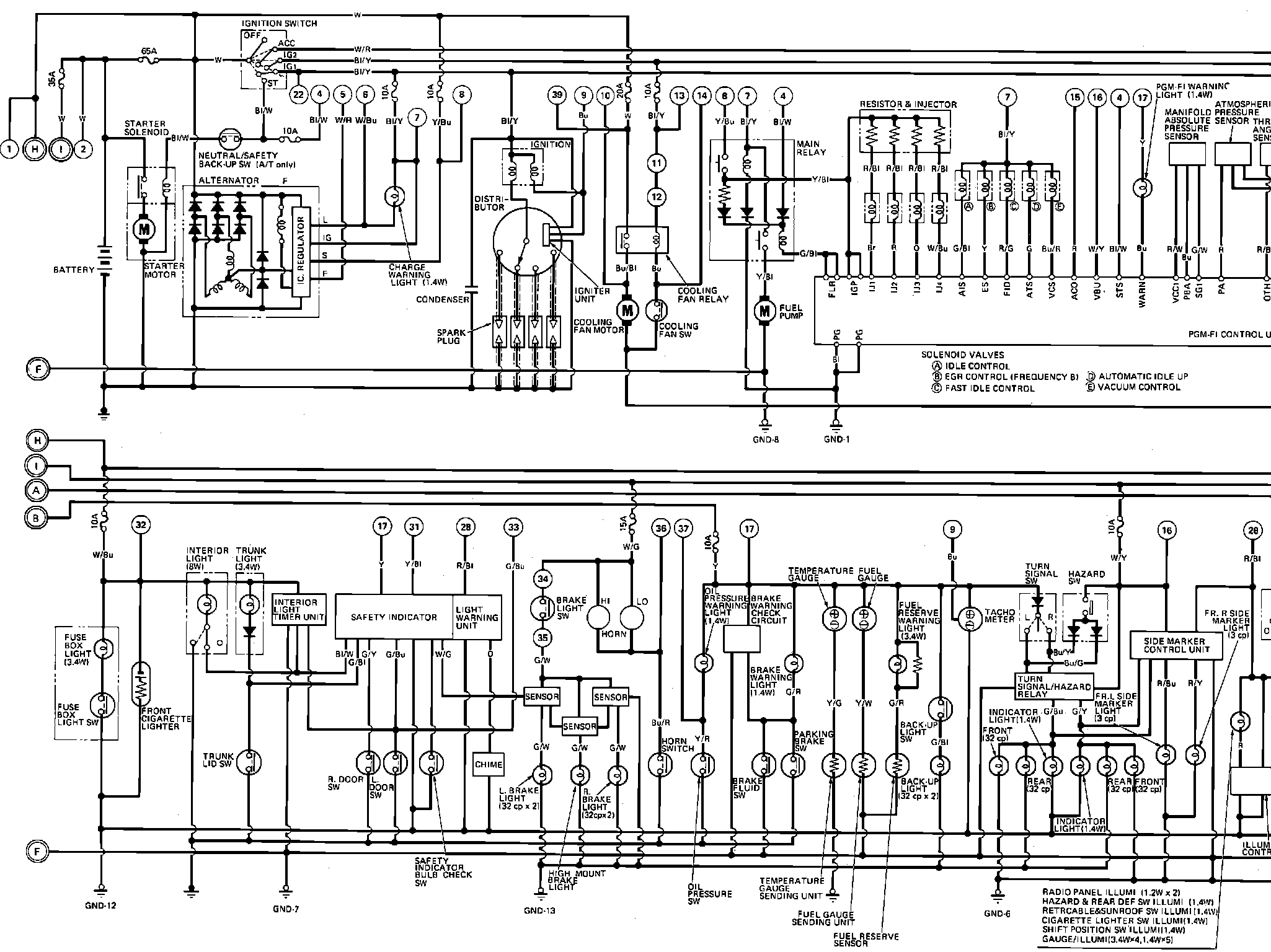

��icFig. 97d Complete Body & Chassis Wiring Circuit. W/Fuel Injected Engine (Part 4 of 4):
