Home >> Honda >> 1986 >> Prelude L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control

Cruise Control

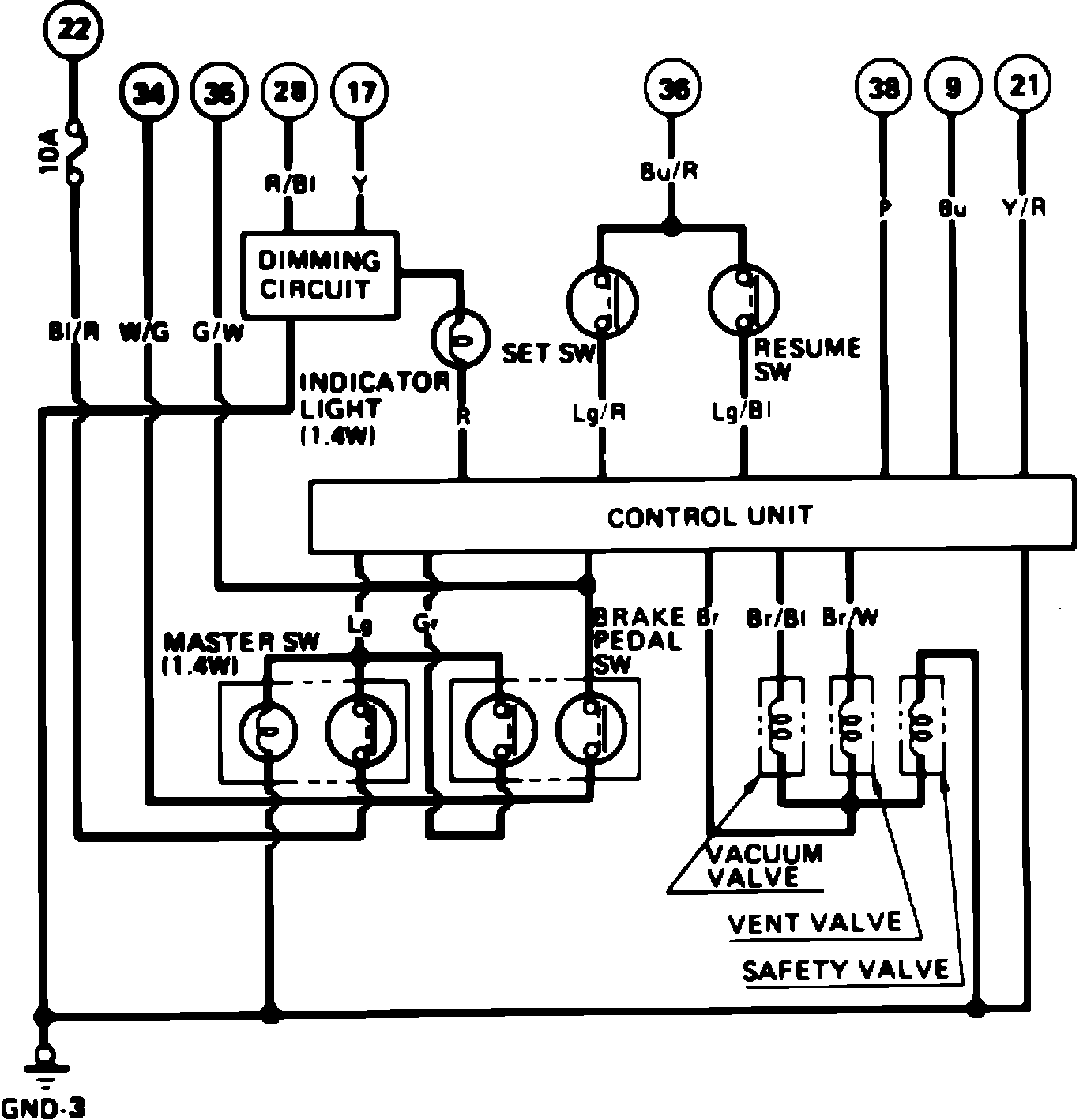

Fig. 98 Cruise Control Wiring Circuit:
