System Diagram

Upper Engine (CARB):

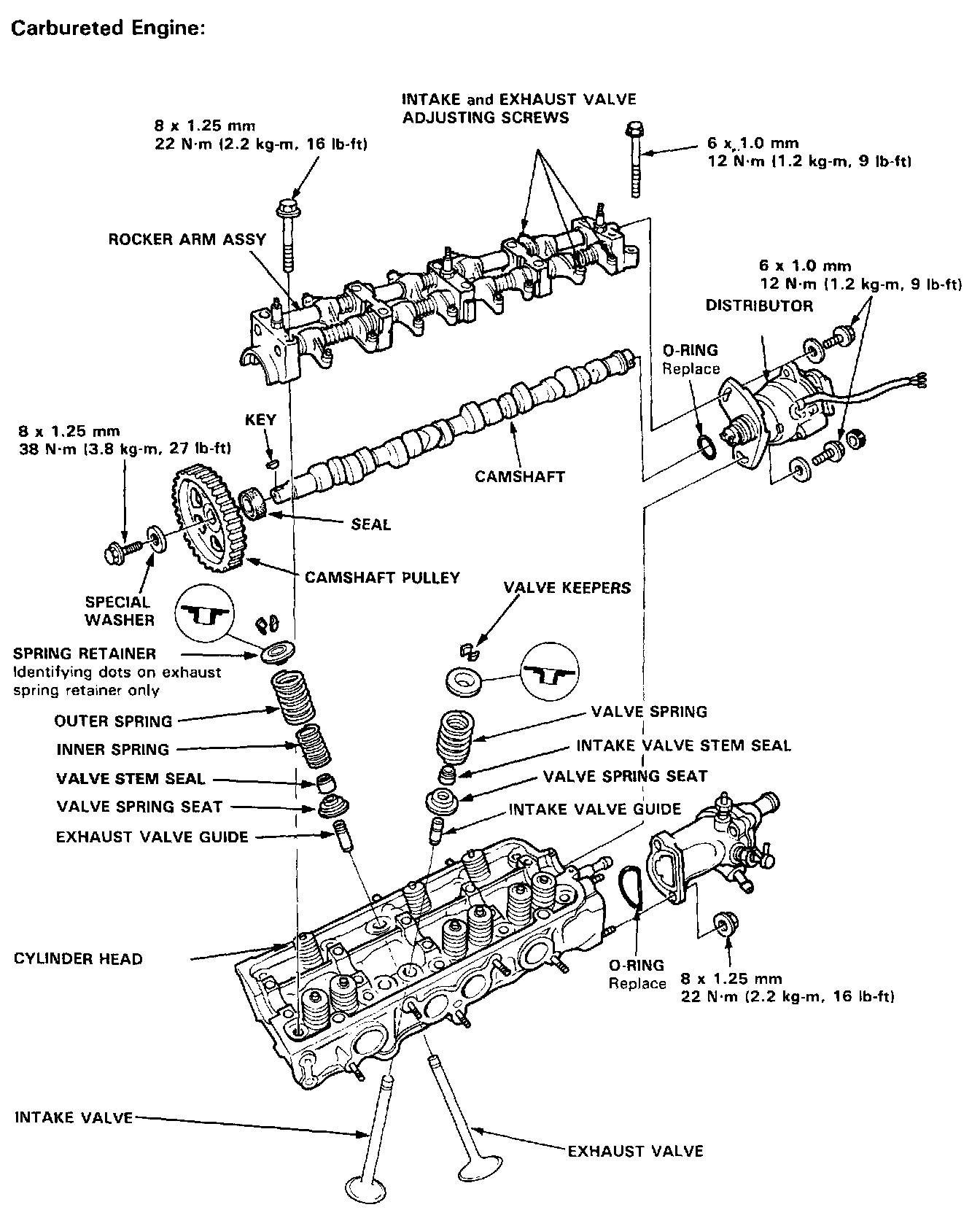

Valves, Rocker Arm Assy, Distributor (CARB):

Camshaft Pulley:

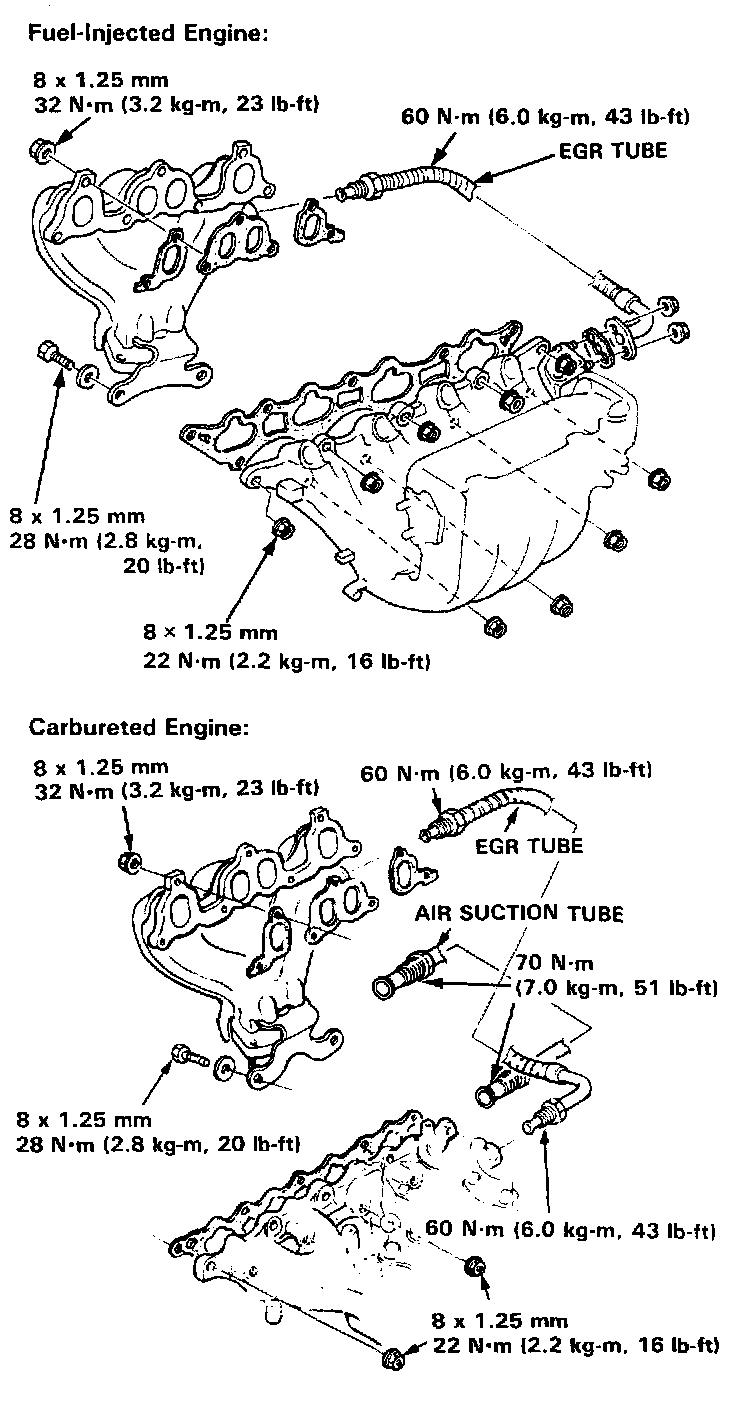

Intake/Exhaust Manifolds - Tighten Nuts In A Criss-cross Pattern In 2 or 3 Steps:

Manifold Brackets:

Timing Components:

Main Bearing Caps, Oil Pan, Flywheel/Flex Plate:

Piston And Connecting Rod:

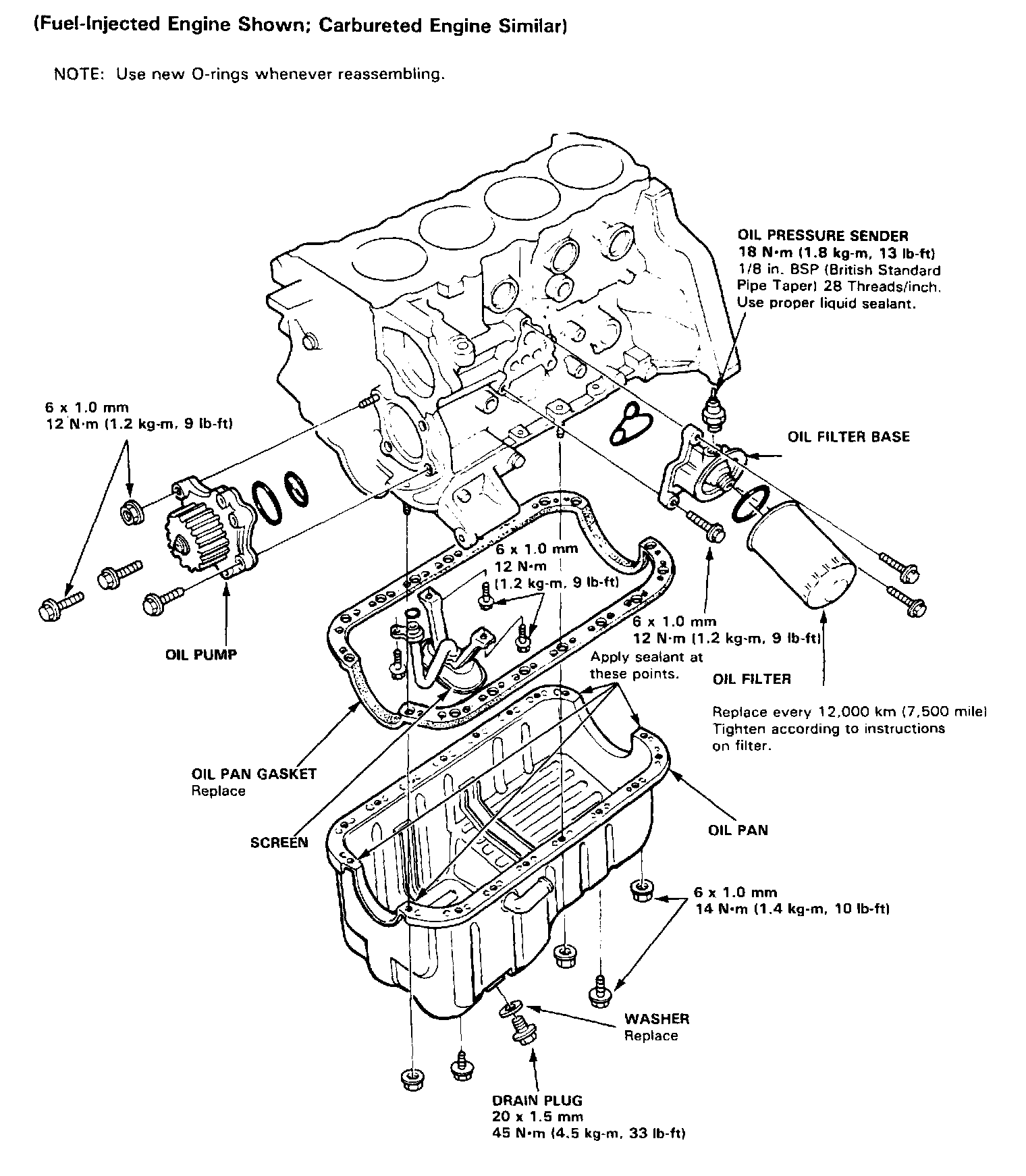

Oil Pan, Drain Plug, Pickup Screen, Oil Pump, Oil Filter Base, Oil Pressure Sender:

Intake/Exhaust Manifolds (CARB):
