D

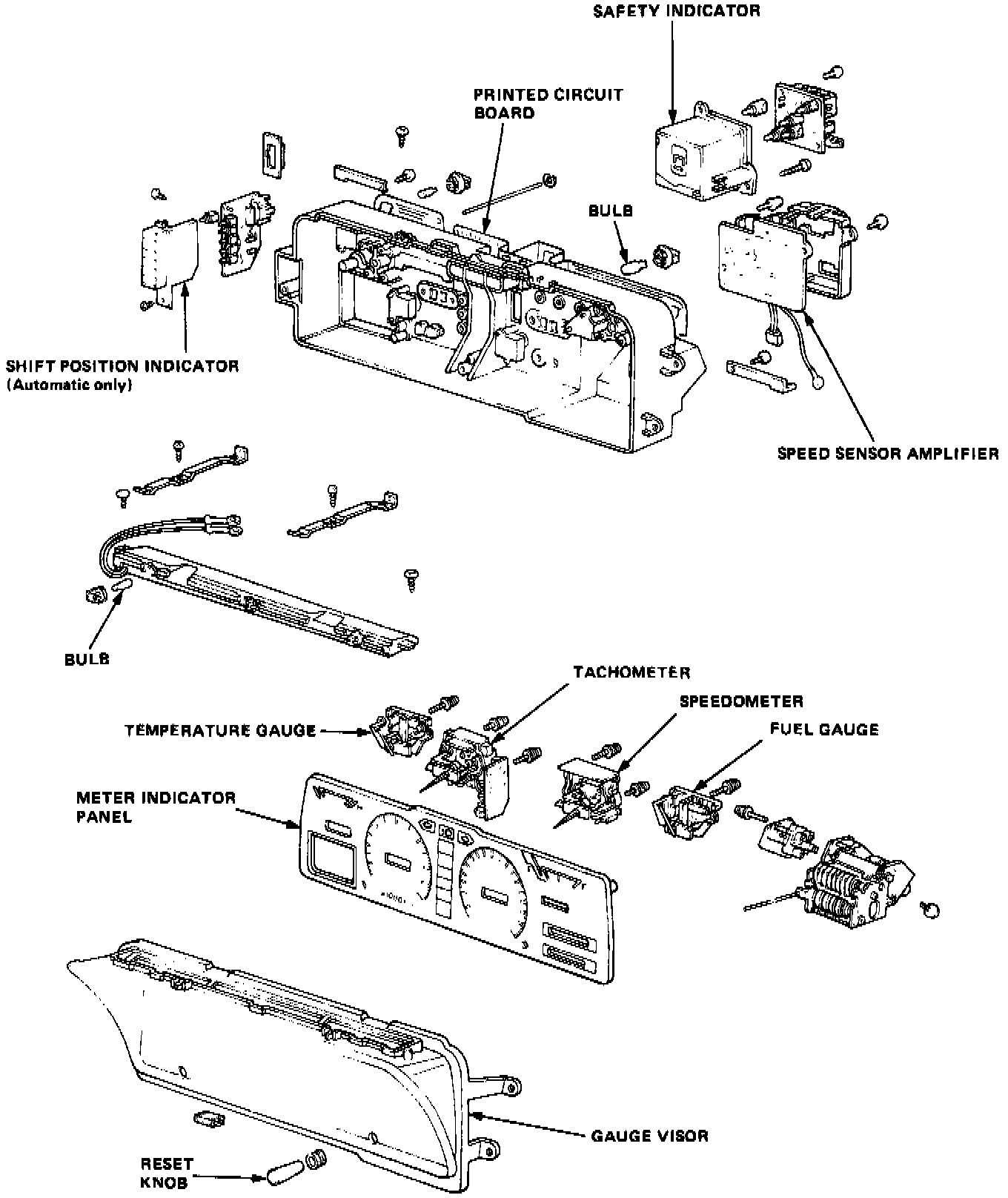

Instrument Cluster Exploded View (D):




CAUTION:
- Do not touch the printer circuits.
- Avoid damaging coupler terminals.
