Home >> Honda >> 1986 >> Prelude L4-1829cc 1800 ES,ET >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Locations

Fuel Delivery and Air Induction: Locations

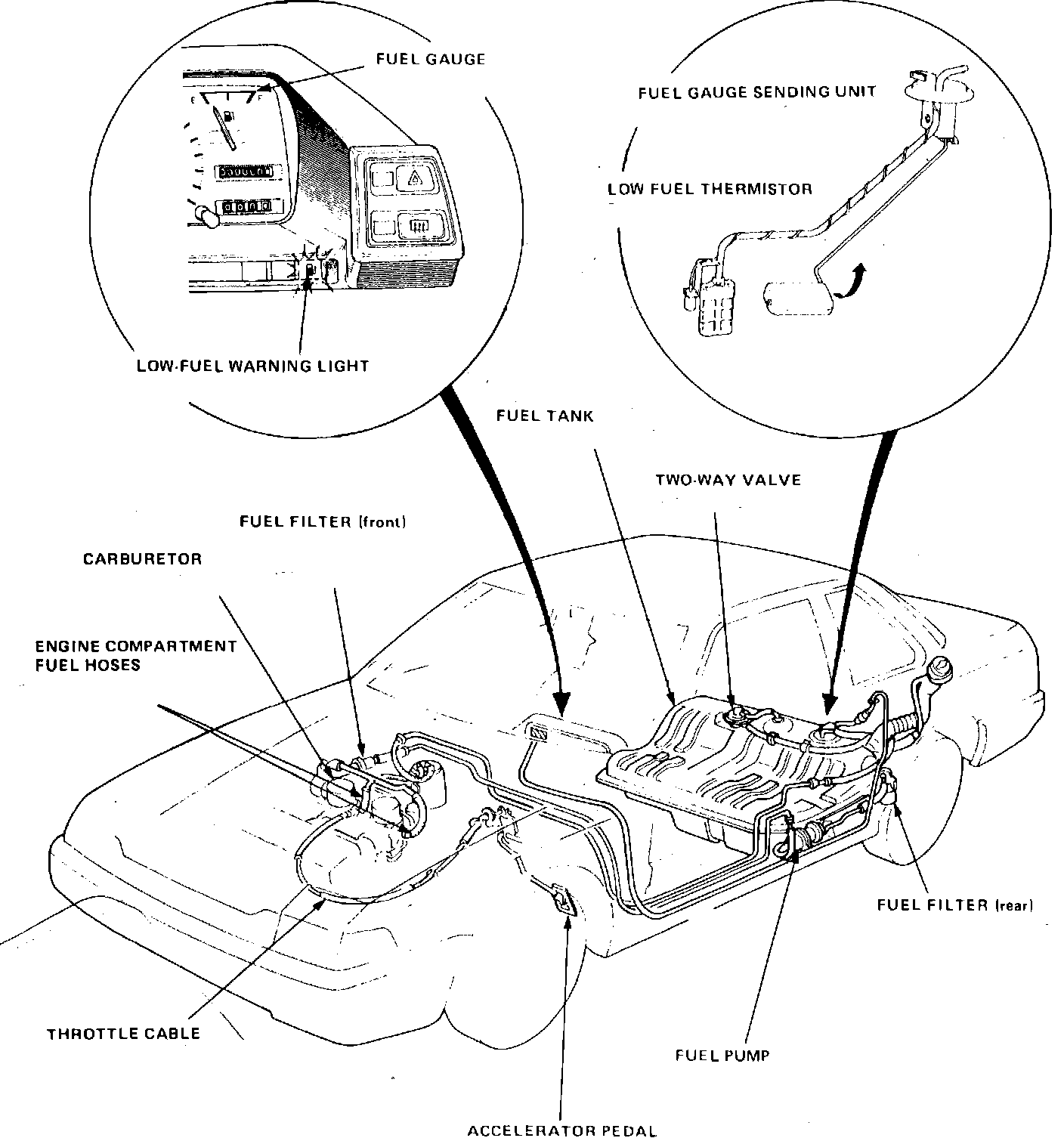

Fig. 219 Fuel System:



Fuel System Components:
