Door Wire Harnesses

Right-Side Door Harnesses:

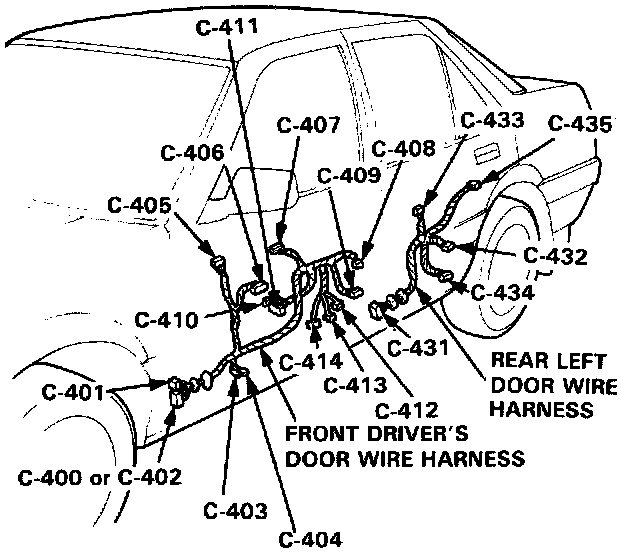

Left-Side Door Harnesses:

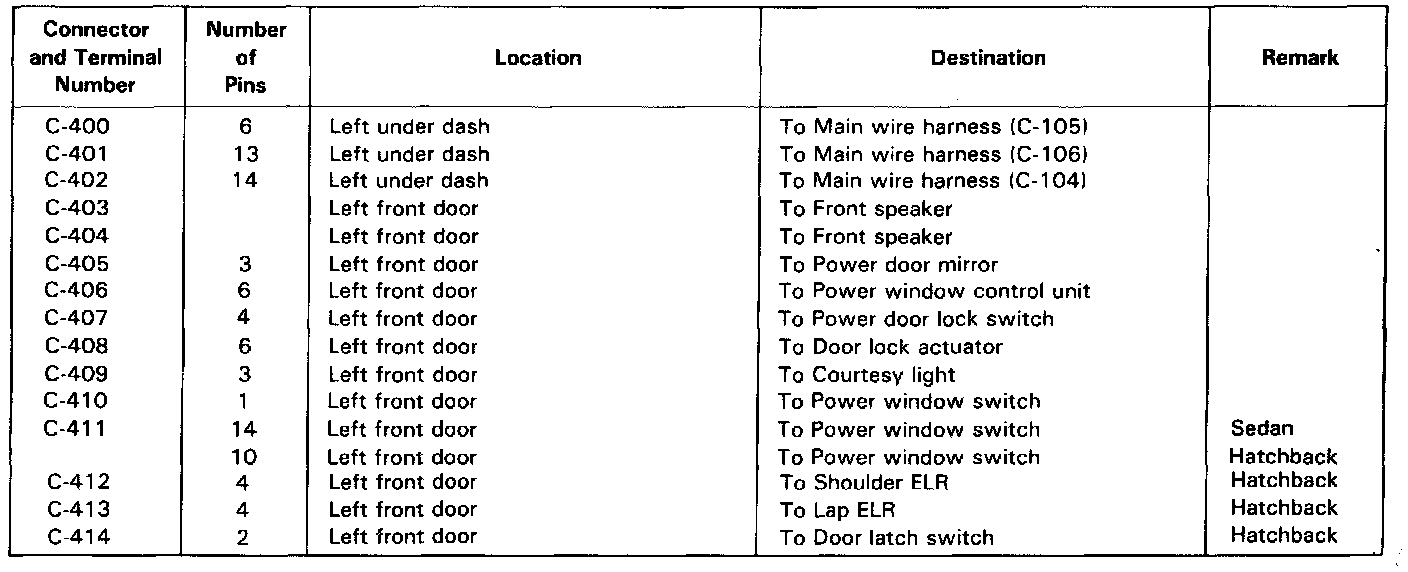

Front Driver's Door Wire Harness Index:





Front Passenger Door Wire Harness Index:





Rear Door Wire Harness Index:
