Connector Identification and Harness Routing
>>
Main Wire Harness
Main Wire Harness
Engine Compartment Harnesses:
Dash And Body Harnesses:

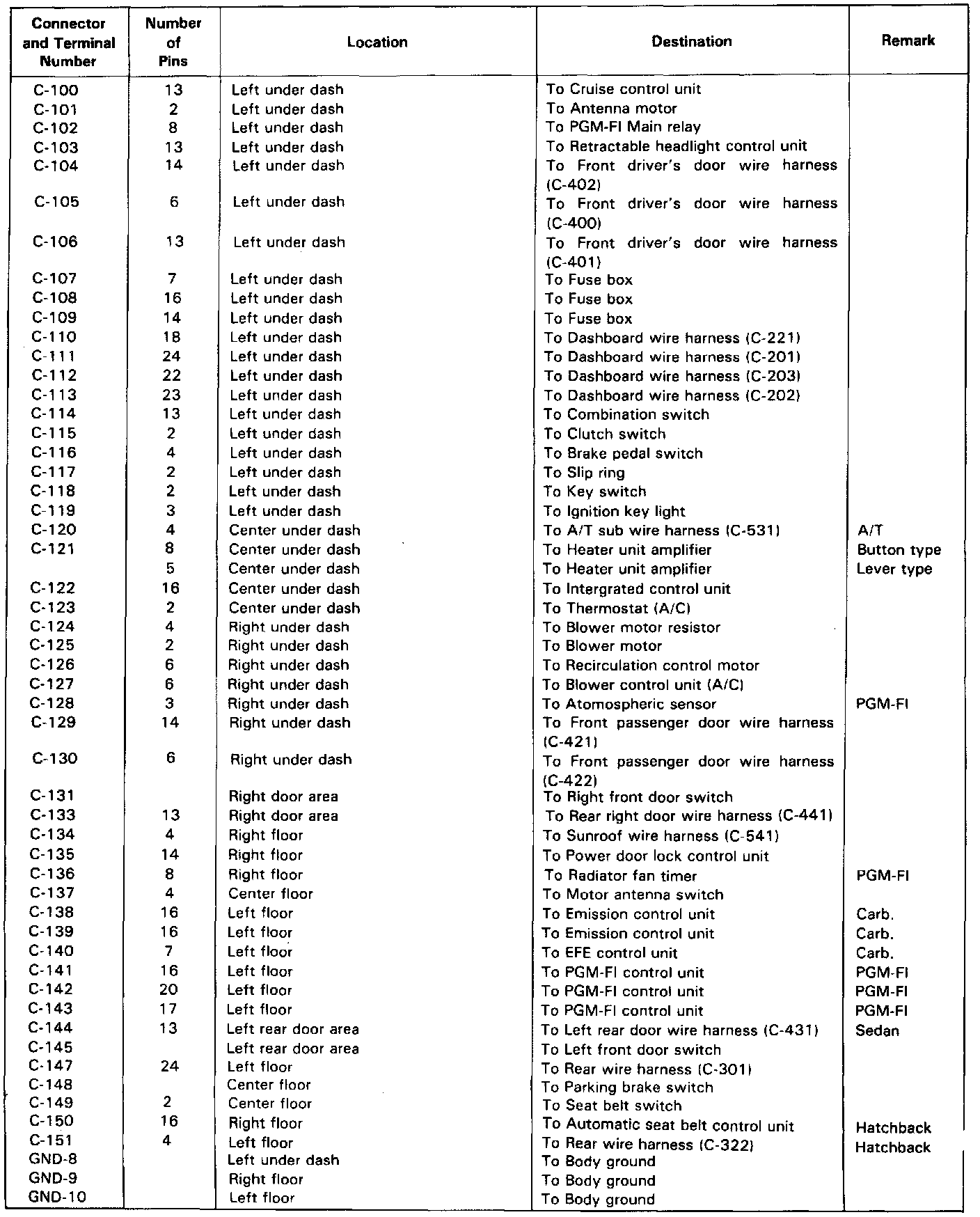

Main Wire Harness Index, Part 1 Of 2:

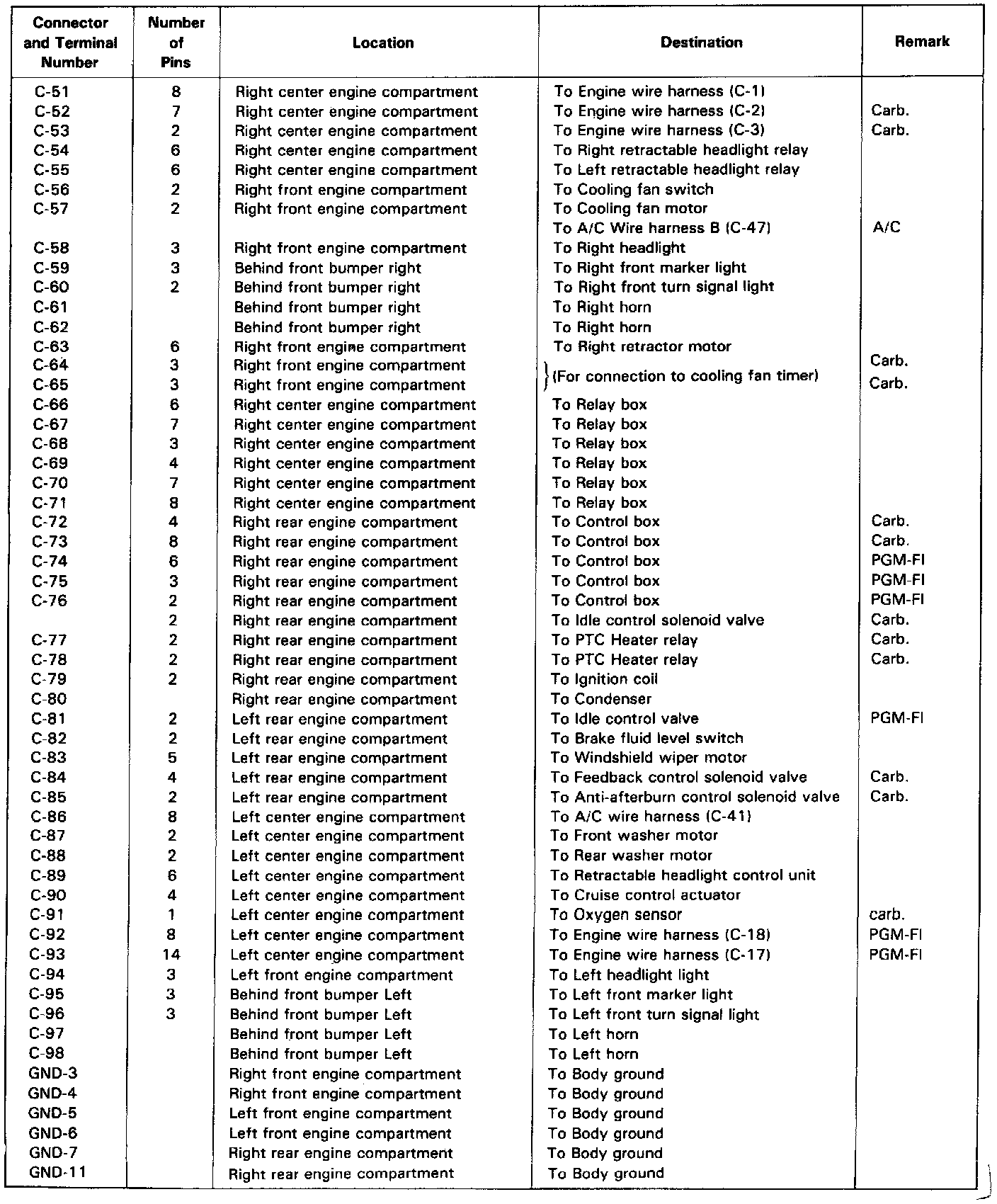

Main Wire Harness Index, Part 2 Of 2:
