Rear Defroster Ground Wire (Sedan)

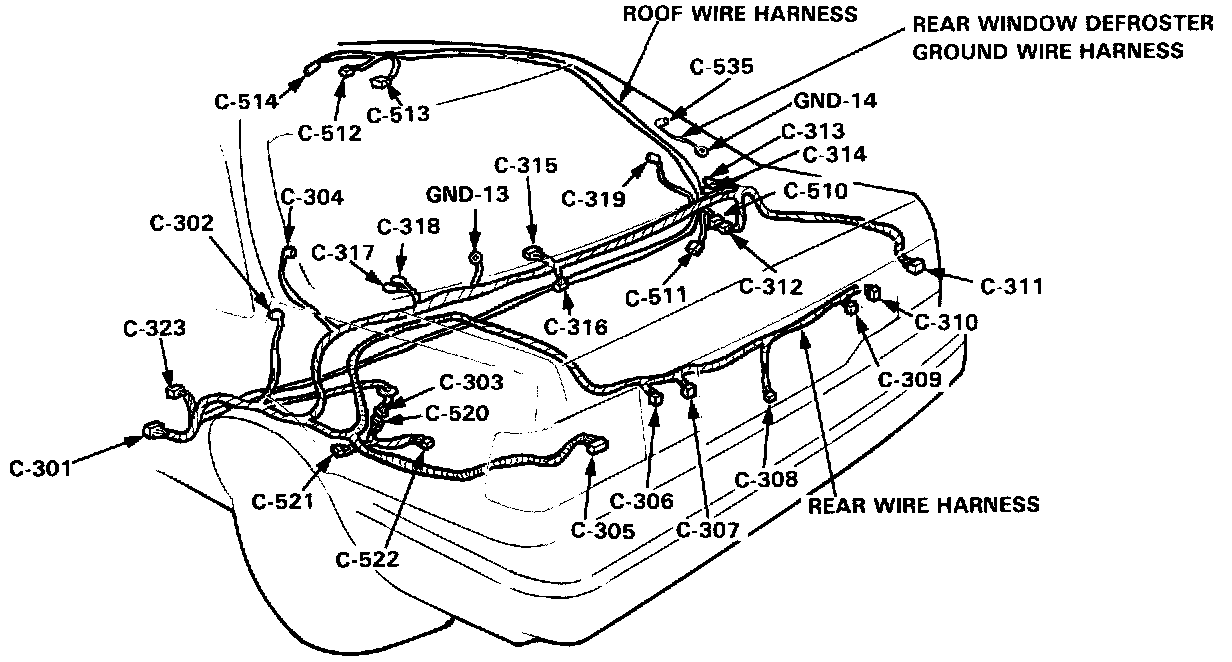

Sedan Rear Wire Harnesses:

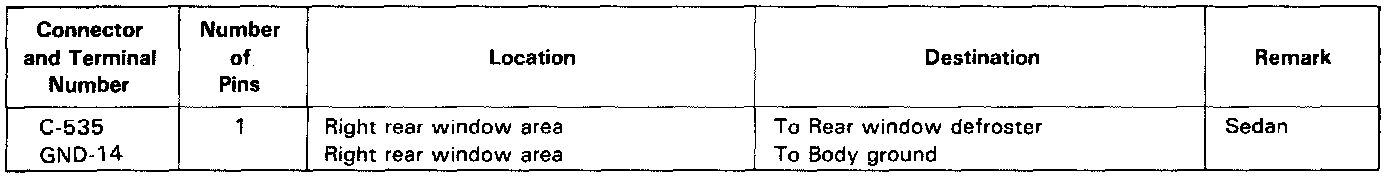

Rear Window Defroster Ground Wire Index:
