Connector Identification and Harness Routing
>>
Roof Wire Harness
Roof Wire Harness

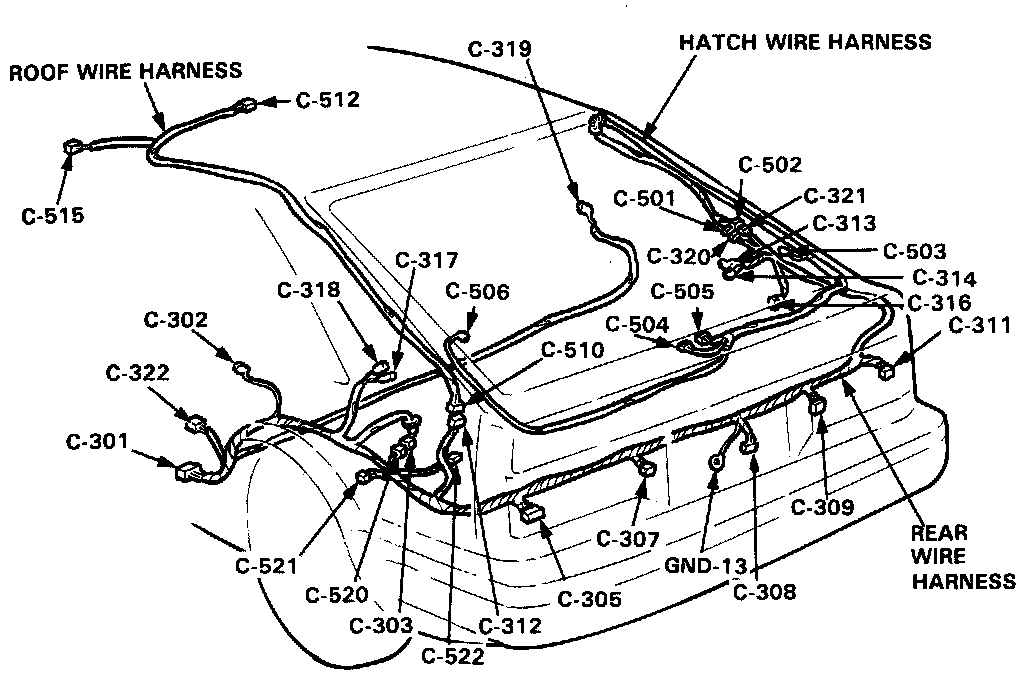

Sedan Rear Wire Harnesses:
Hatchback Rear Wire Harnesses:
Roof Wire Harness Index:
